Trailed Bale Unrollers

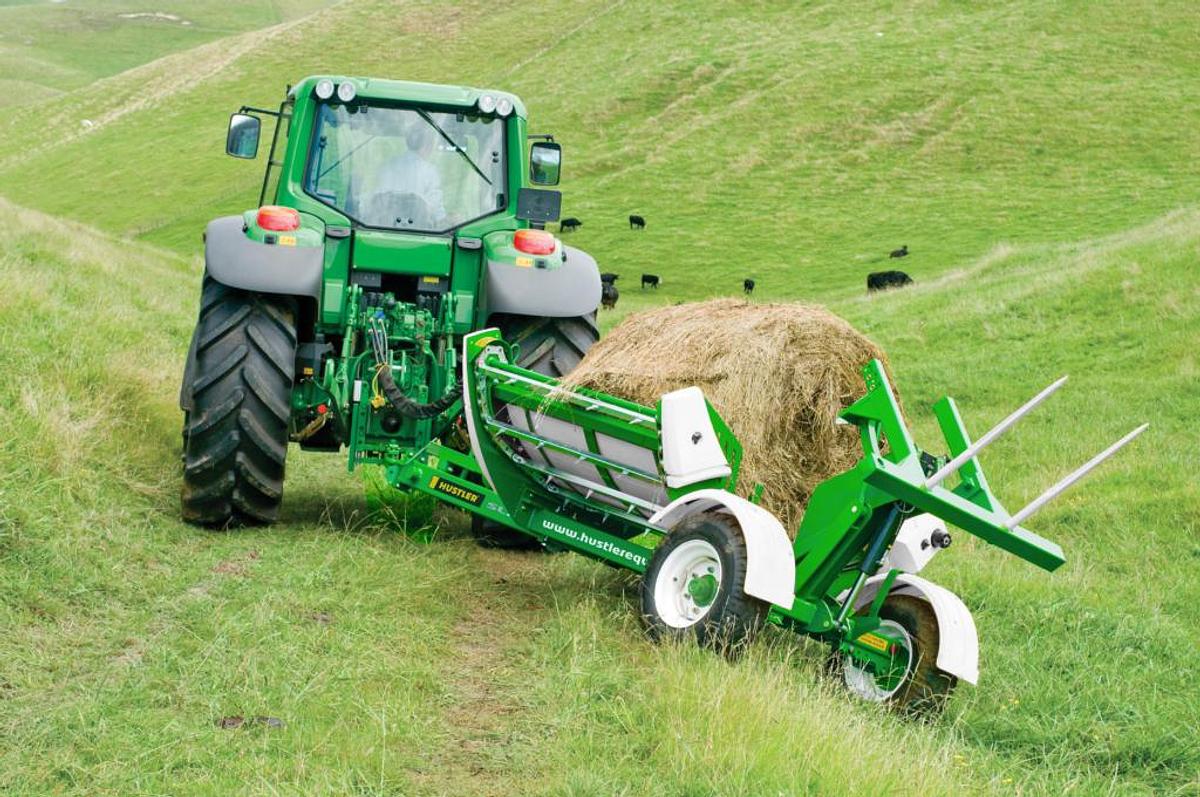

Trailed self-loading two bale feeder.

The latest series 2 model retains the fundamental Hustler advantages such as the unique chassis design that protects the chains from dragging on the ground, the patented Total Control self-loading system, the toughest chain/floor setup on the market, and the ultra-low maintenance roller bearings and adds several improvements such as covered drive shafts to prevent wrapping, larger wheels for improved ride, improved stability, large string box as standard, and a beefier rear loading system for longer life.



Key Benefits

Easy to useToughest chainsPolyethylene floorLow maintenanceChassis designTotal Control Loading

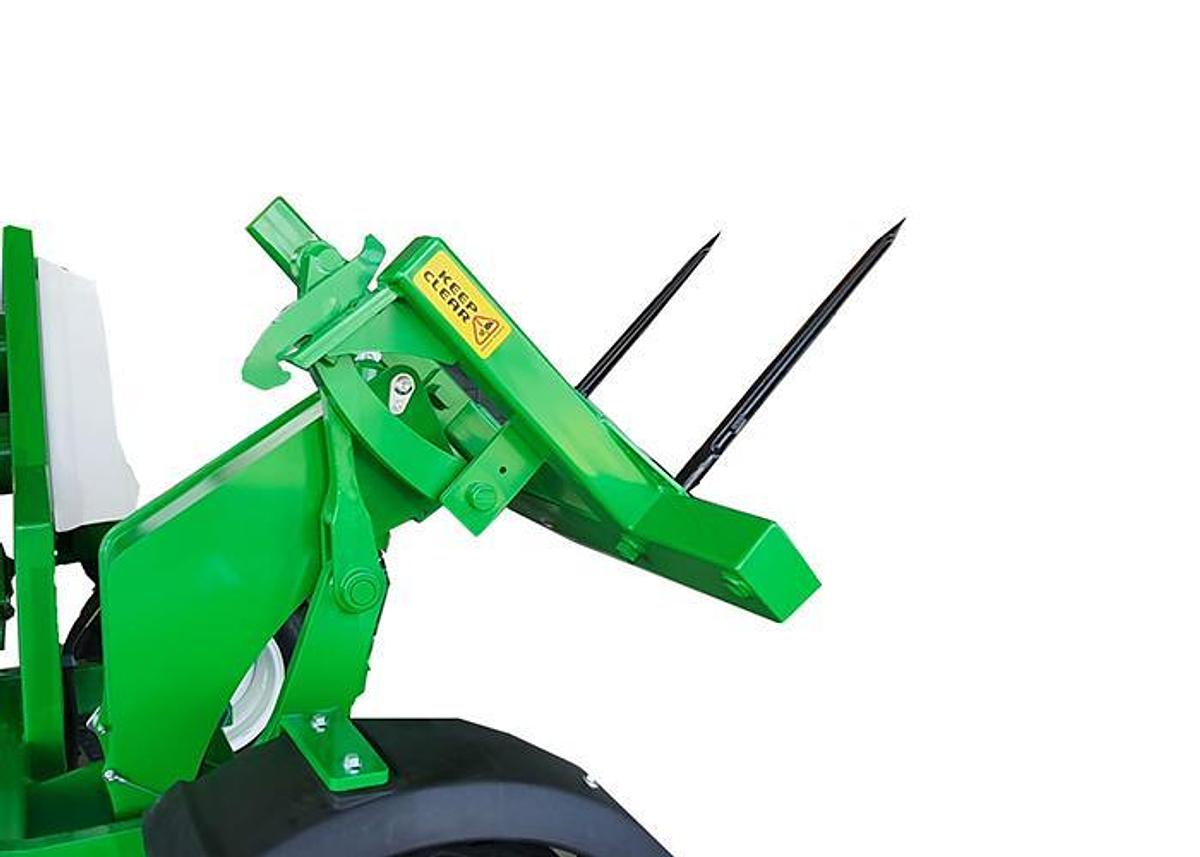

Hustler’s Unique Total Control Loading

The (TCL2) system that has revolutionized bale handling since it was introduced eight years ago. With just one hydraulic cylinder to complete the entire loading operation and a new gas strut to help reset the loader, the TCL2 is the fastest loading system out there. With only one ram it’s safer and less demanding on your tractor’s hydraulics. Unlike other systems, the operator can reverse the bale if necessary, even once the bale is positioned low over the cradle for unwrapping.

Easy to use

The double bale feeder has single level feed control, making it very easy to use and ideal for share milkers.

Toughest chains on the market

Super strong roller chains with the combined strength of 24,000 lbs, with tough 40mm x 40mm (1.5 x 1.5 in) zinc-plated bars. Bars are bolted to the chain, a stronger and more easily replaceable system.

Tough polyethylene floor

Non-corrosive, impervious to UV, slippery, easily repairable and very shock resistant. Fully enclosed – no wastage of expensive feed. The long bed can take 5’ long bales

Low maintenance

Instead of bushes we use longer lasting block bearings, mounted outboard, to keep them clean and free of damage.

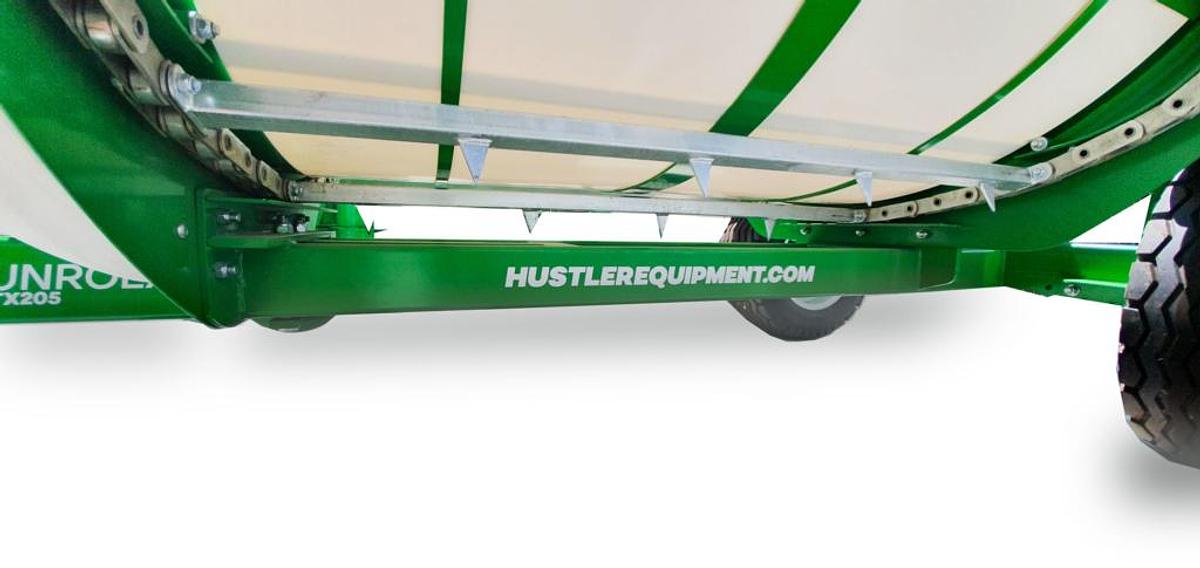

Chassis design

Our fully enclosed chassis prevents rust by stopping water from getting in. We’ve built the Unroller Trailed Round Bale Feeder with plenty of ground clearance to minimise bellying out and to avoid damage to chains and feed bars when it does touch the ground, we’ve made the underside of the chassis smooth, so it slides until the wheels gain traction again. Impressive strength to weight ratio has been achieved by constructing the Unroller Trailed Round Bale Feeder from high tensile steel, which is 50% stronger than mild steel. Bolted construction eliminates stress cracking common with some conventional Bale Feeders.

Hustler’s Unique Total Control Loading

The (TCL2) system that has revolutionized bale handling since it was introduced eight years ago. With just one hydraulic cylinder to complete the entire loading operation and a new gas strut to help reset the loader, the TCL2 is the fastest loading system out there. With only one ram it’s safer and less demanding on your tractor’s hydraulics. Unlike other systems, the operator can reverse the bale if necessary, even once the bale is positioned low over the cradle for unwrapping.

Easy to use

The double bale feeder has single level feed control, making it very easy to use and ideal for share milkers.

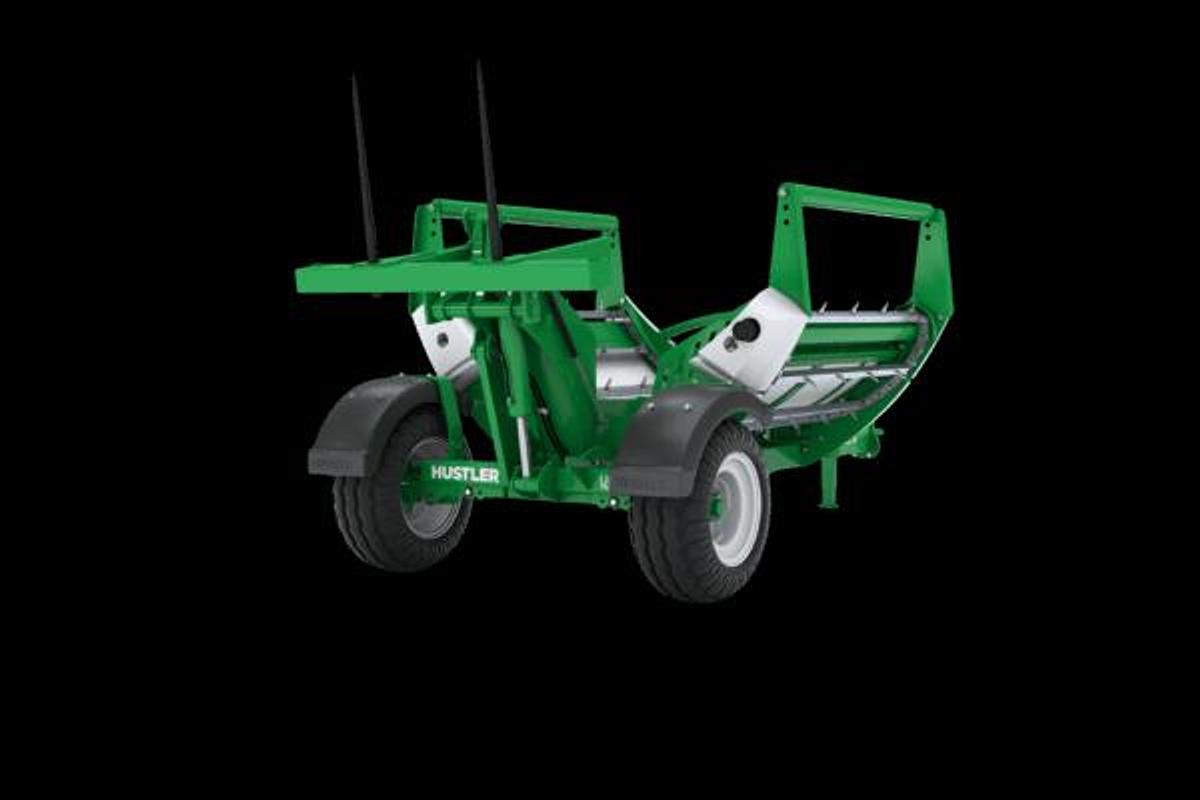

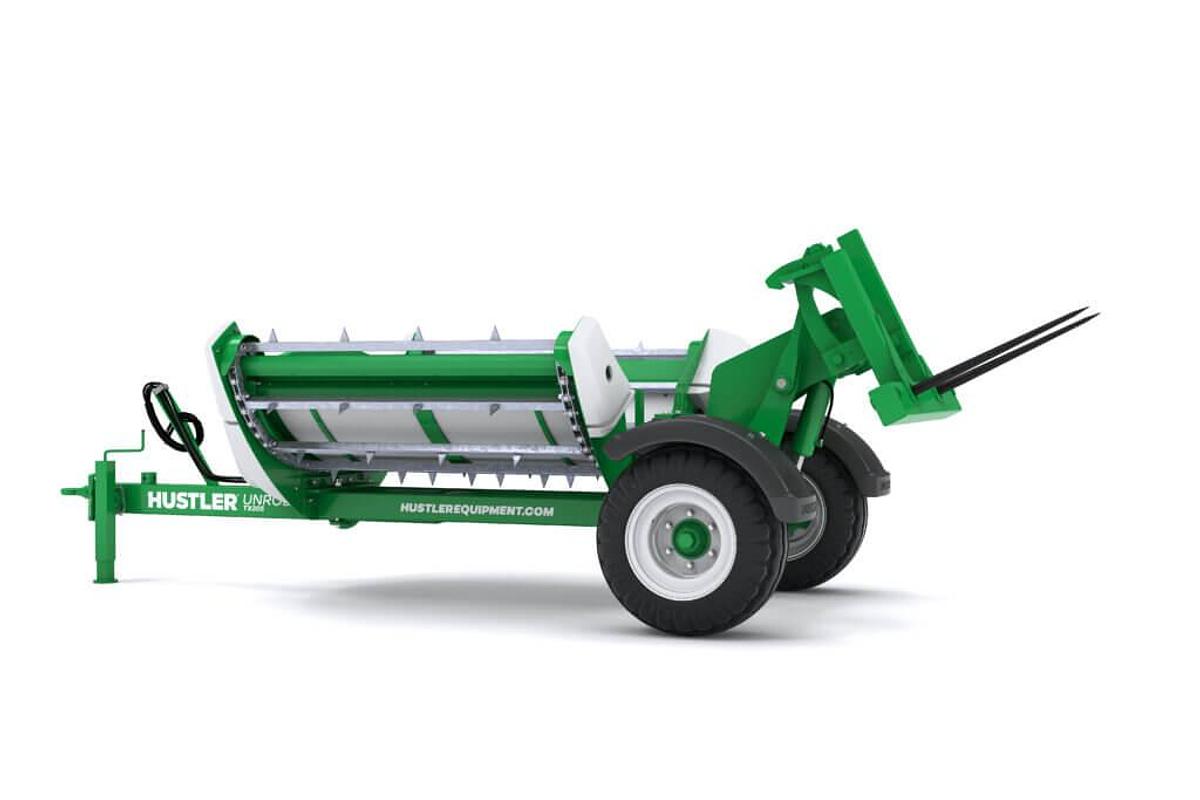

Unrolla TX205 trailed round bale feeder

Includes as standard equipment:

Drive shaft covers

String box

Bearing covers

Larger 11.5/80-R15.3 Wheel Assemblies

Key Features

ChainsStrong barsBearingsSprocketsPolyethylene floorStabilityNew DriveAxleTowing eyeDrawbarBearing coversWheel TrackCovered shafts

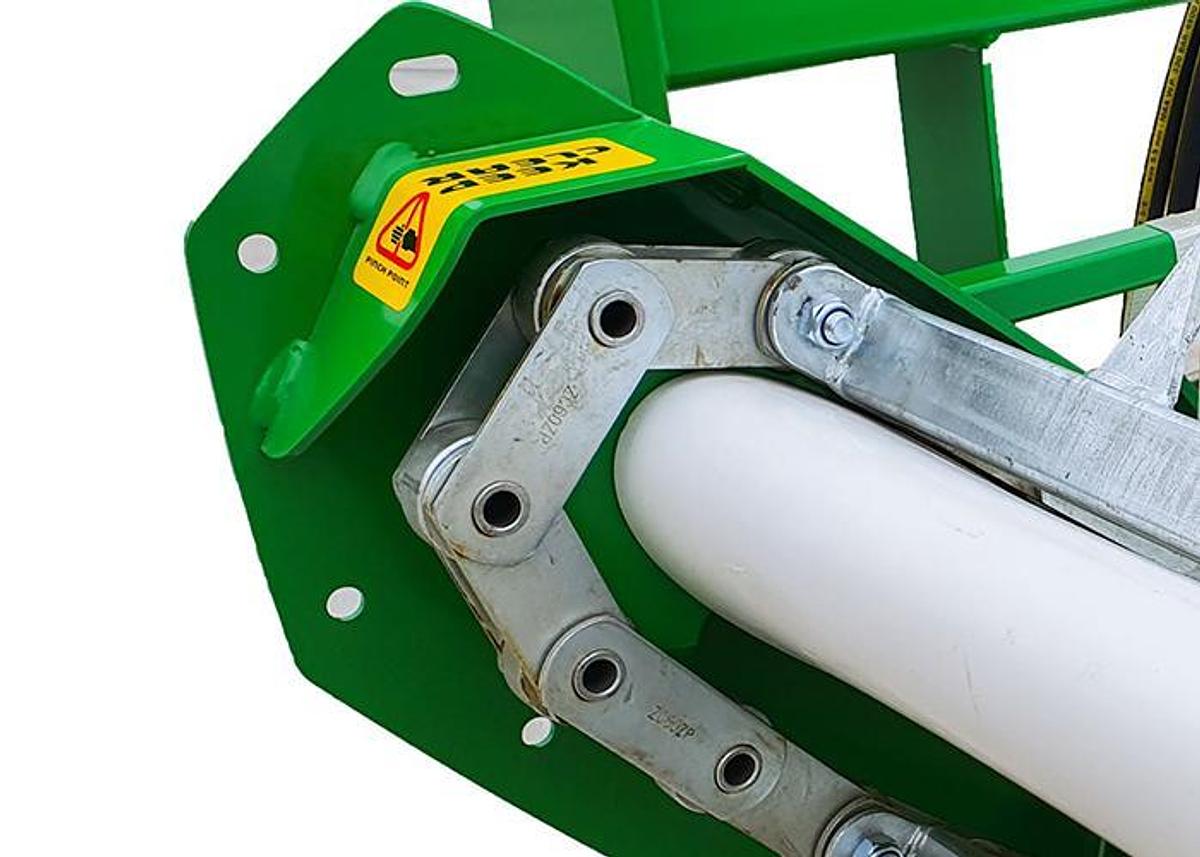

Covered Shafts

New Thermoform floor covers the driveshaft’s which eliminates any possibility of feed wrapping around the shafts or jamming.

Toughest chains

Zinc plated chains rated to 24,000 lbs with the larger diameter rollers and pins make our chain drive system almost twice as strong as our competitors. And the greater surface on each roller pin increases chain life because they can’t stretch or snake.

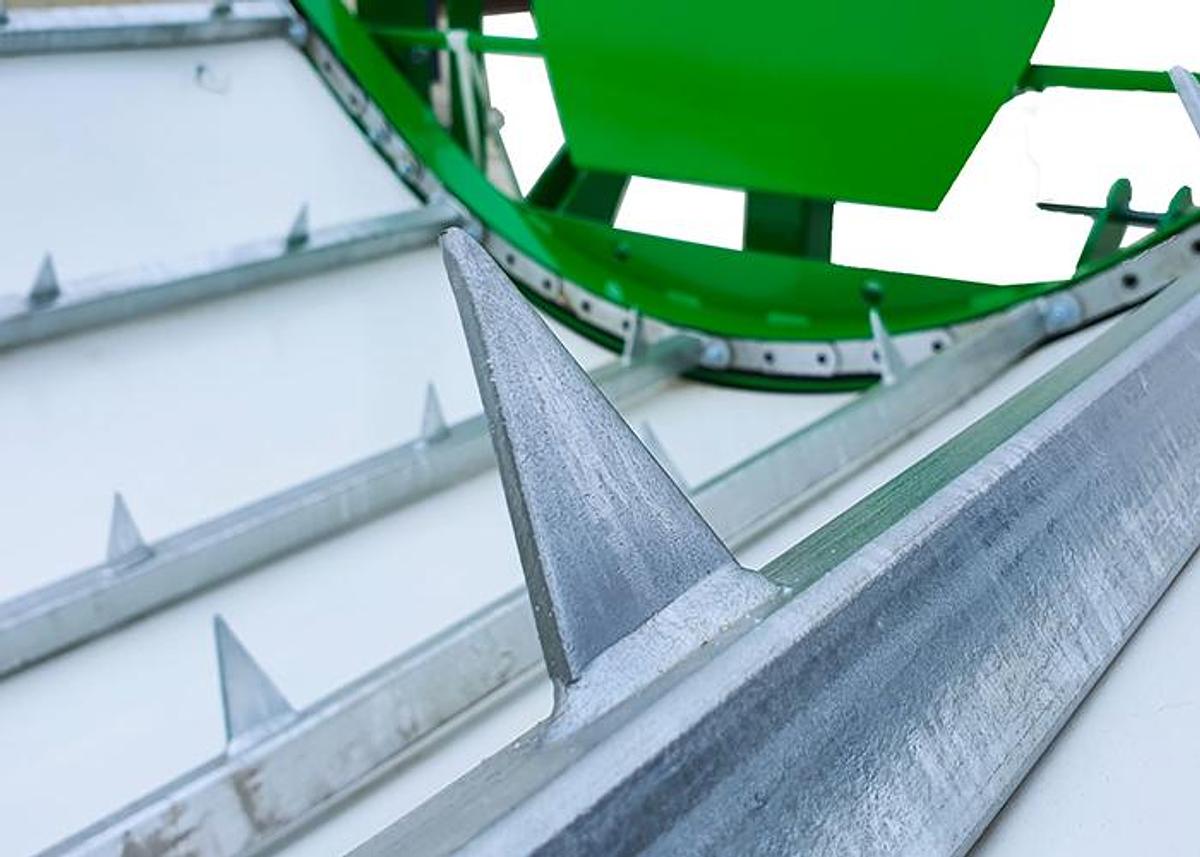

Strongest feeding bars

Bars are 4-5 times stronger torsionally than angle type bars of the same size. We’ve bolted them to the chain which is stronger and for different bale types, blank bars or bars with more aggressive teeth are available and can simply be bolted on in a matter of minutes.

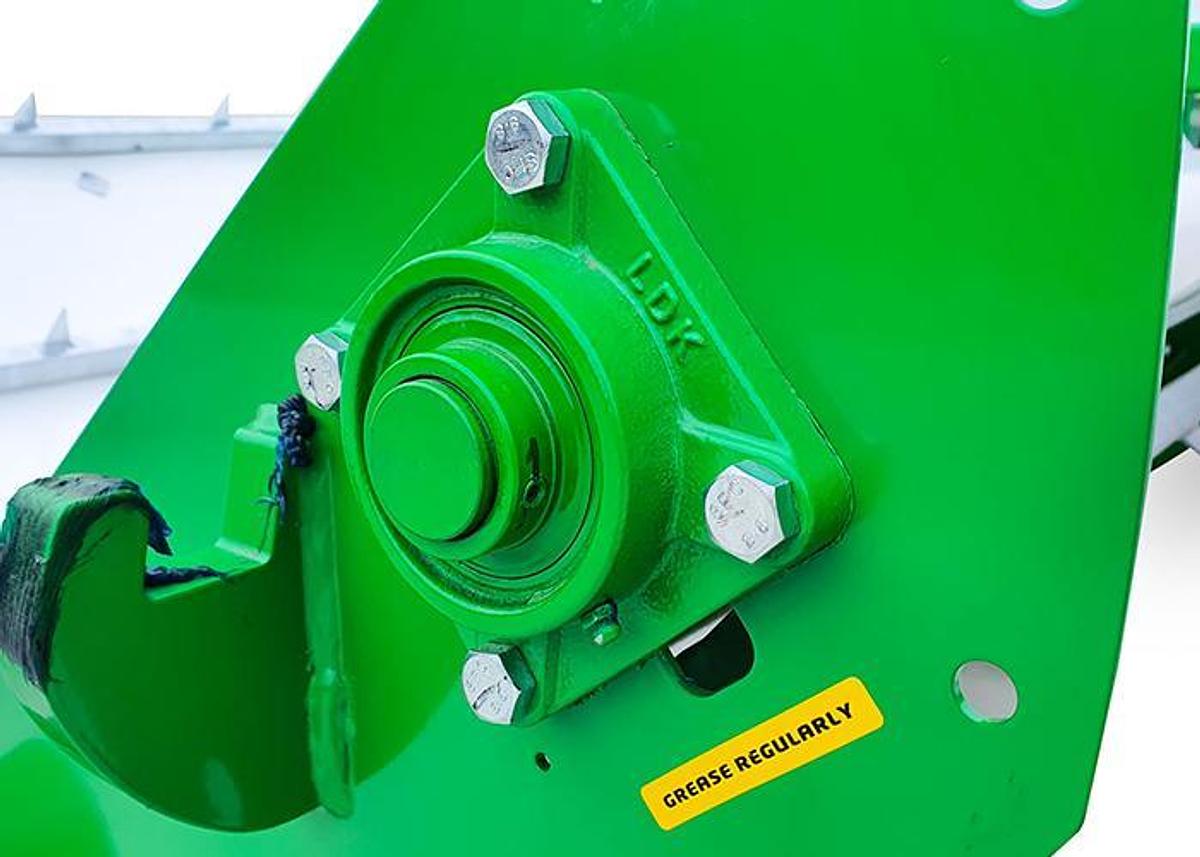

Low maintenance bearings

Protected double sealed heavy-duty 4-bolt bearings with trash shields are mounted outboard of the Trailed Round Bale Feeder feeding chamber. Making them last longer than internally mounted bushes.

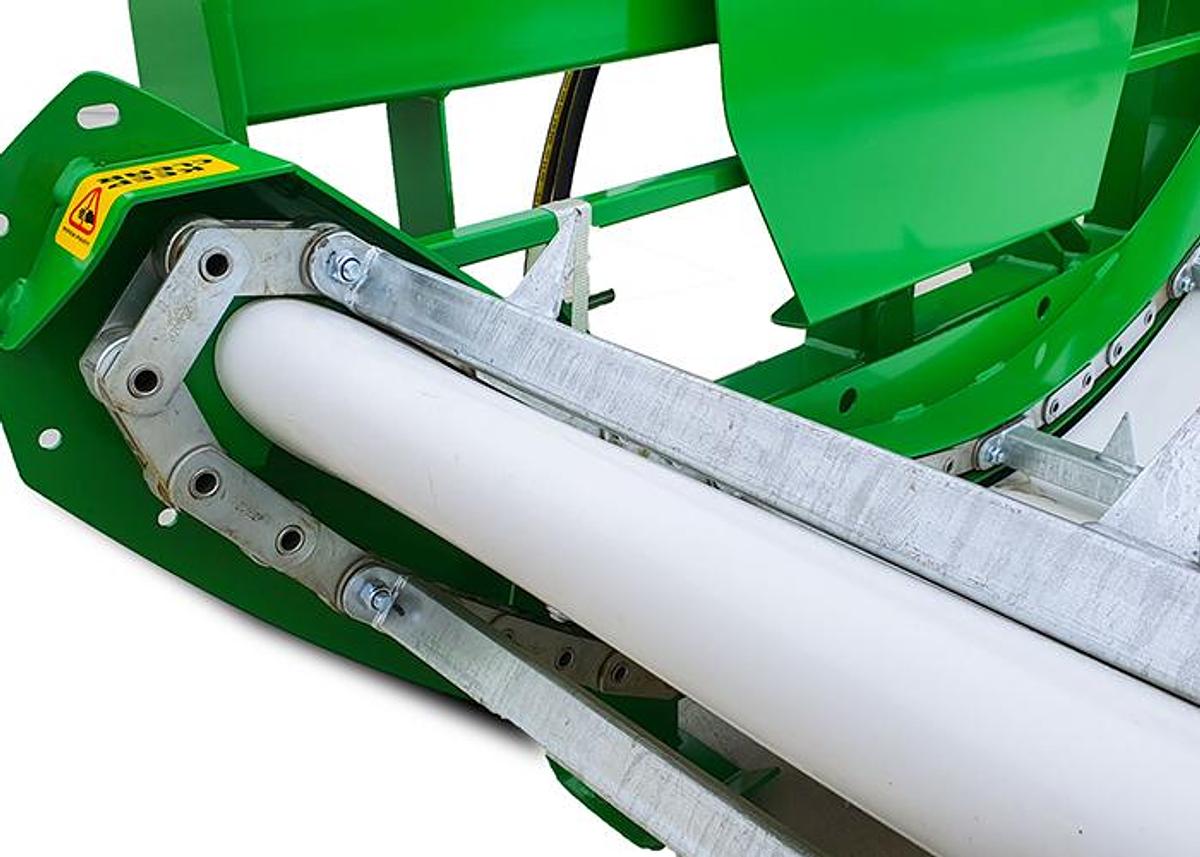

Enclosed sprockets

Our 6 tooth sprockets are made from Bisalloy (the same material a bulldozer blade is made from) so they last forever. With smaller diameter sprockets less torque is required to drive the chains, giving more drive power for tough bales. Designed so it is impossible for the chain to jump off the sprocket saves you downtime in the field.

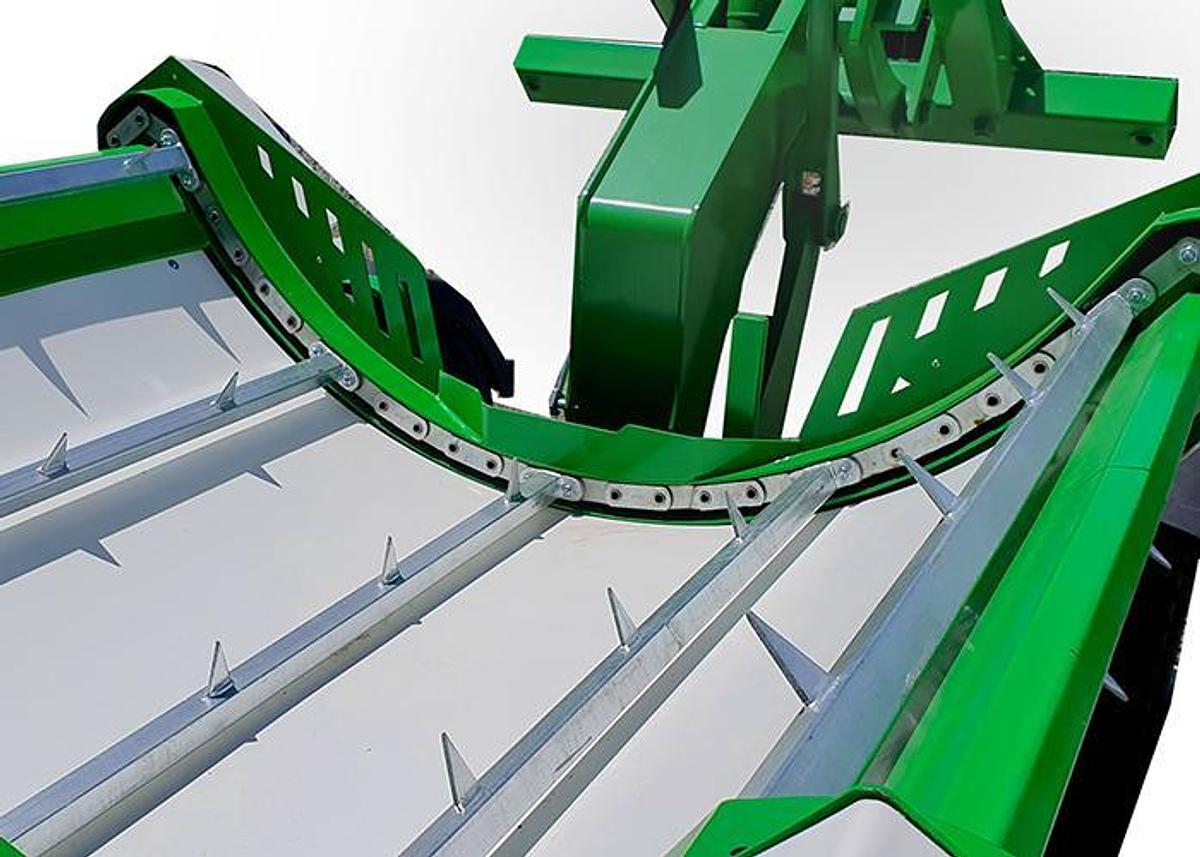

Polyethylene floor

Fully enclosed extruded polyethylene floor reduces feed waste and it will never corrode. Being polyethylene it is slippery with 30% less drag compared to steel which makes feeding sticky silage or wet bales easy.

Hill Country Stability

A lower centre of gravity and steeper feed cradle results in a 20% increase in stability. This means greater safety and peace of mind when the going gets steep.

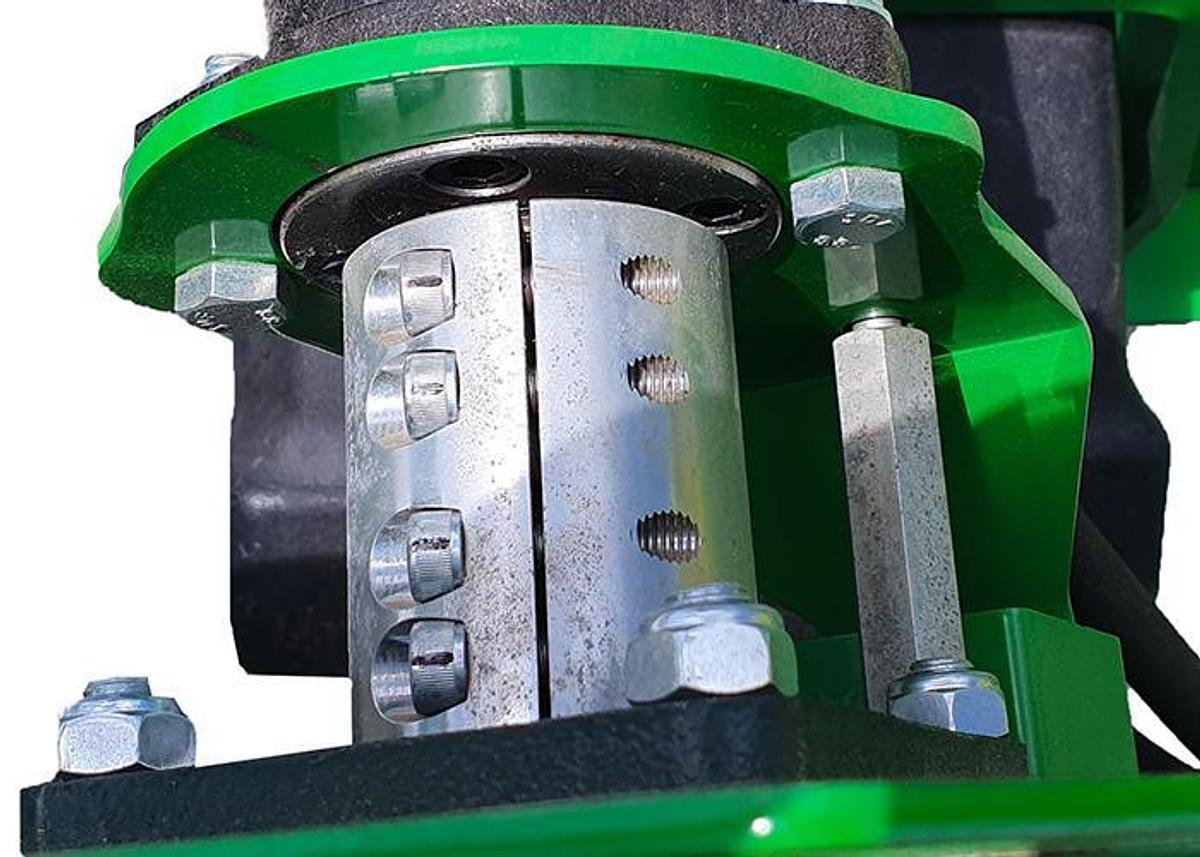

New Drive

A beefed up drive system, including a newly designed coupling, provides unparalleled direct drive strength, while a bigger motor allows you to feed even the heaviest and sloppiest bales with ease.

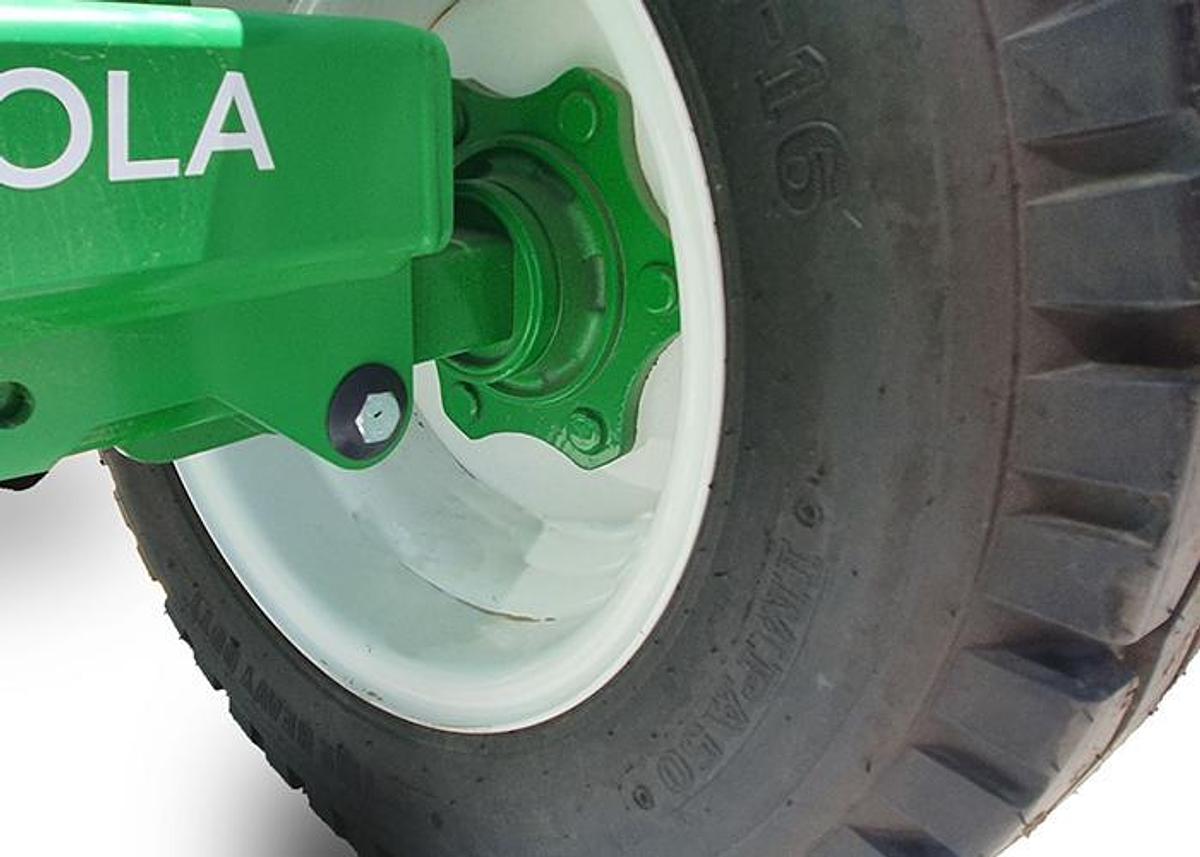

6 Stud Axle

You need to feed out in all conditions, so we’ve fitted the strongest stub axle on the market. The Unroller TX205 Double Bale Feeder is suited to the fastest tractors available today. We’ve also made it adjustable so that it suits any terrain, without running over the feed.

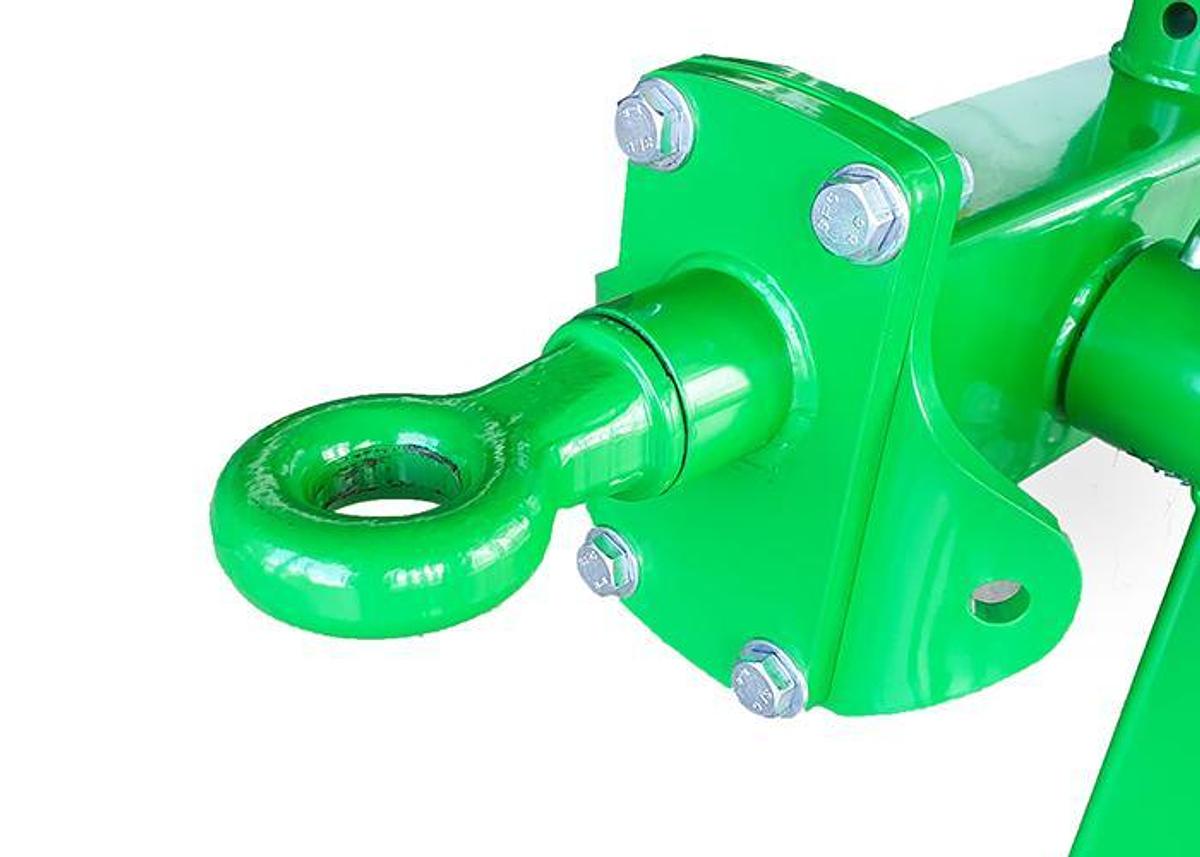

Swivelling Towing Eye

Our heavy-duty 360 degree forged towing eye handles the roughest terrain without causing damage to your machine. It also has an adjustable height, so that it sits level on whatever size tractor you have.

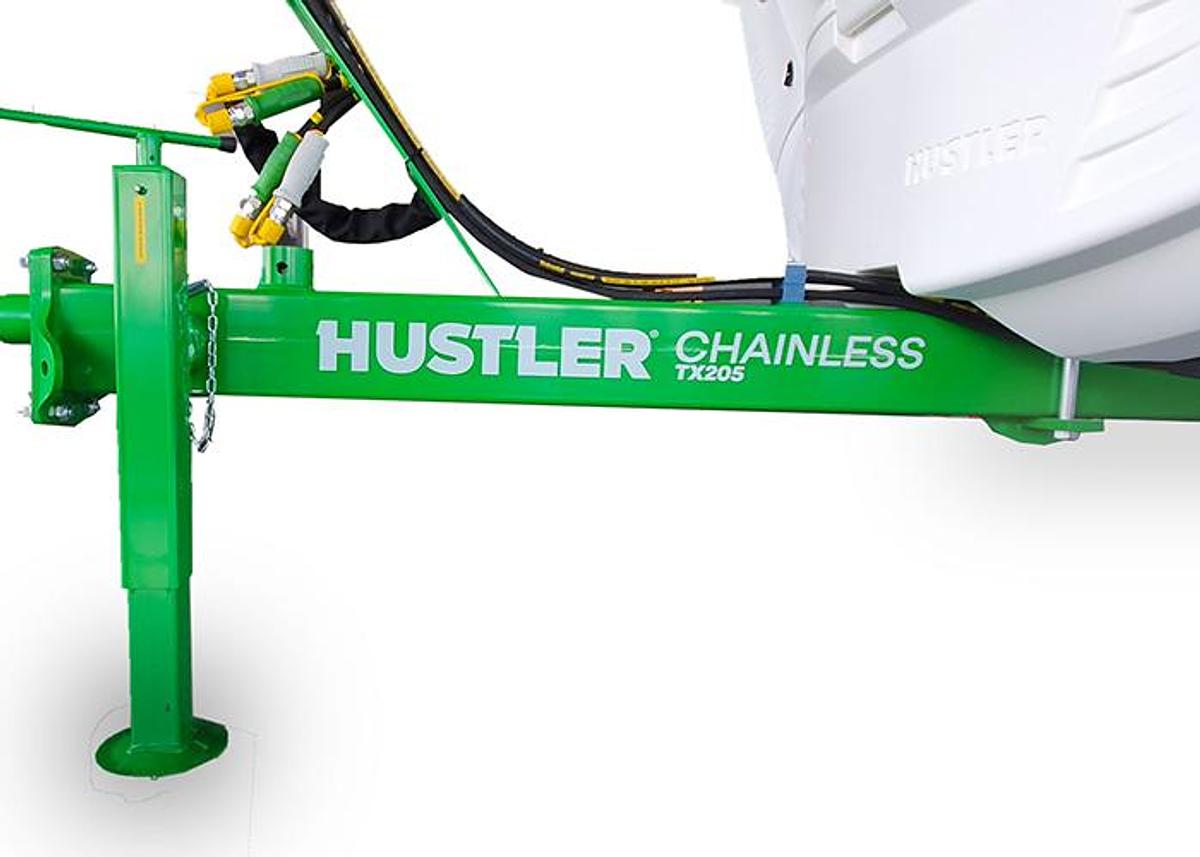

Single post drawbar

Our single post drawbar design has set the benchmark in feeder manoeuvrability. Now it is completely removable, which means you can replace it without having to buy a whole new chassis. By lowering the drawbar, we’ve made it easier stepping from side to side.

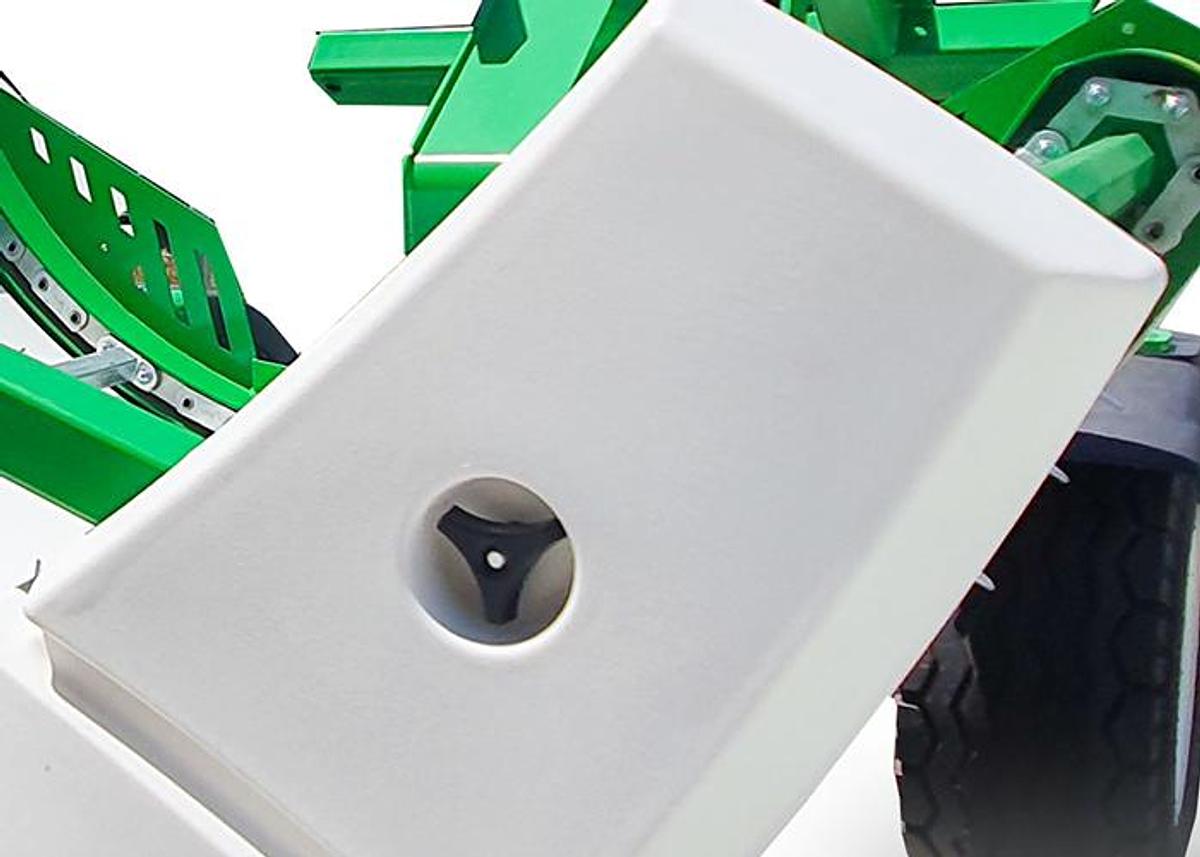

Bearing covers

Removable bearing covers protect the bearings from mud and make cleaning and greasing easy.

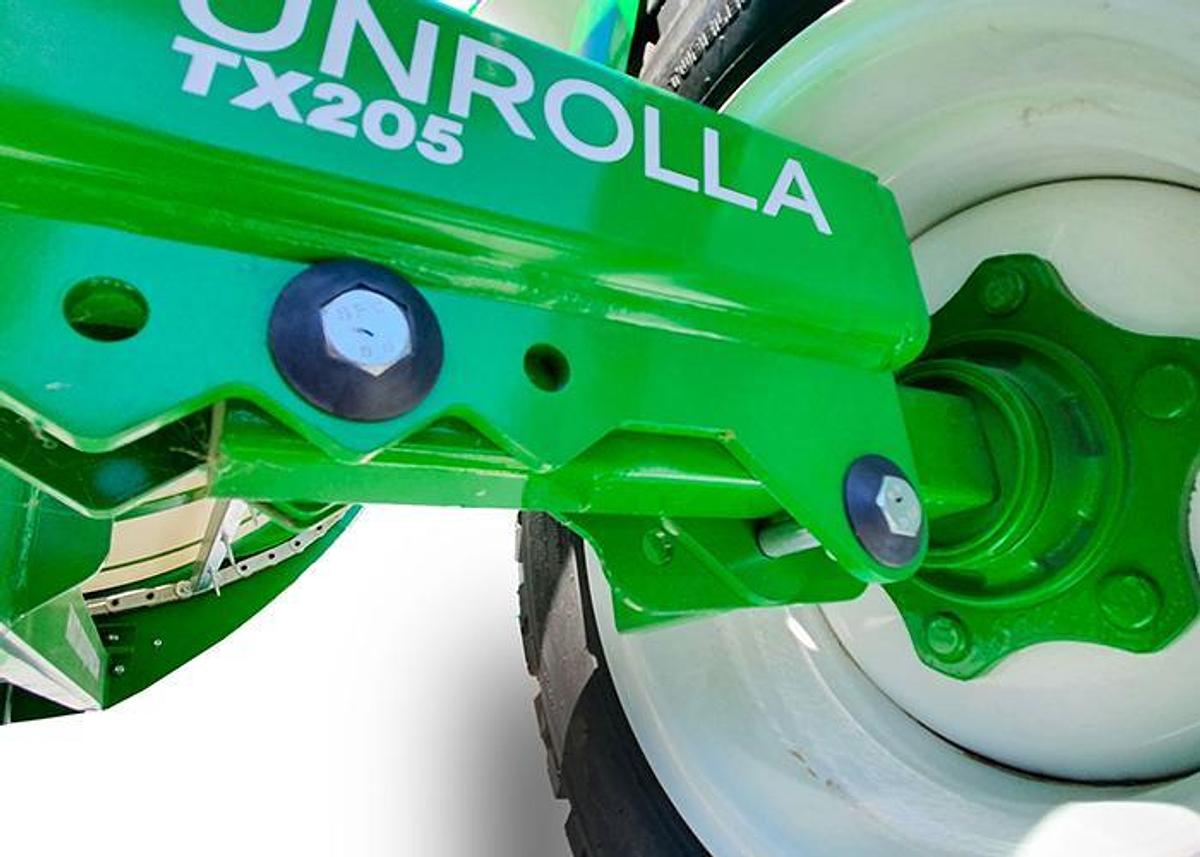

Adjustable Wheel Track

Adjust the wheel track up to 300 mm (11 in) for greater stability in hill country or less feed trampling when feeding in wet fields.

Covered Shafts

New Thermoform floor covers the driveshaft’s which eliminates any possibility of feed wrapping around the shafts or jamming.

Toughest chains

Zinc plated chains rated to 24,000 lbs with the larger diameter rollers and pins make our chain drive system almost twice as strong as our competitors. And the greater surface on each roller pin increases chain life because they can’t stretch or snake.
