Combi RX² Multi-Feeder Range

THE LEGEND REBUILT

Introducing the all-new Combi RX®² multi-feeder range. With unique features delivering unprecedented feeding versatility, standing as the lowest maintenance wagon on the market, offering unrivaled maneuverability and enhanced feed control. Built upon the success of its predecessor, the Combi RX®² incorporates valuable user feedback for an even better feeding out experience.

With more than a decade of extensive product development and testing, working on large-scale farms and ranches around the world, the Combi RX®² range is ready for whatever you throw its way.

What sets the Hustler Combi RX®² range apart?

1. Unbeatable Versatility - One Machine, Any Feed

If you’re feeding a combination of bales, silage, root crops, or any other supplementary feed, then the Combi RX®² is the only feeder you’ll need.

The Hustler Combi RX®² multi-feeder range is designed to accommodate all types, shapes, and sizes of bales, including straw, hay, baled silage, fine chop silage, maize silage, root crops, and virtually any type of feed you have. Its unique elevator design enables feed delivery from the side of the machine, allowing you to easily feed into troughs, feed pads, bunks, or open pastures without any spillage.

2. Chainless Reliability & Simplicity

With its chainless rear floor, greaseless components, and simplified design, the Combi RX®² multi-feeder wagon takes the crown as the most reliable option on the market!

Featuring 100% hydraulic drive (no PTO), self-aligning bearings for durability, a single elevator ram, protected motor drives hydraulic and electric components, the Combi RX®² range is engineered to significantly reduce operating and maintenance costs. Plus, with the added convenience of central greasing as a standard feature, you’ll spend more time in the field and less time in the workshop.

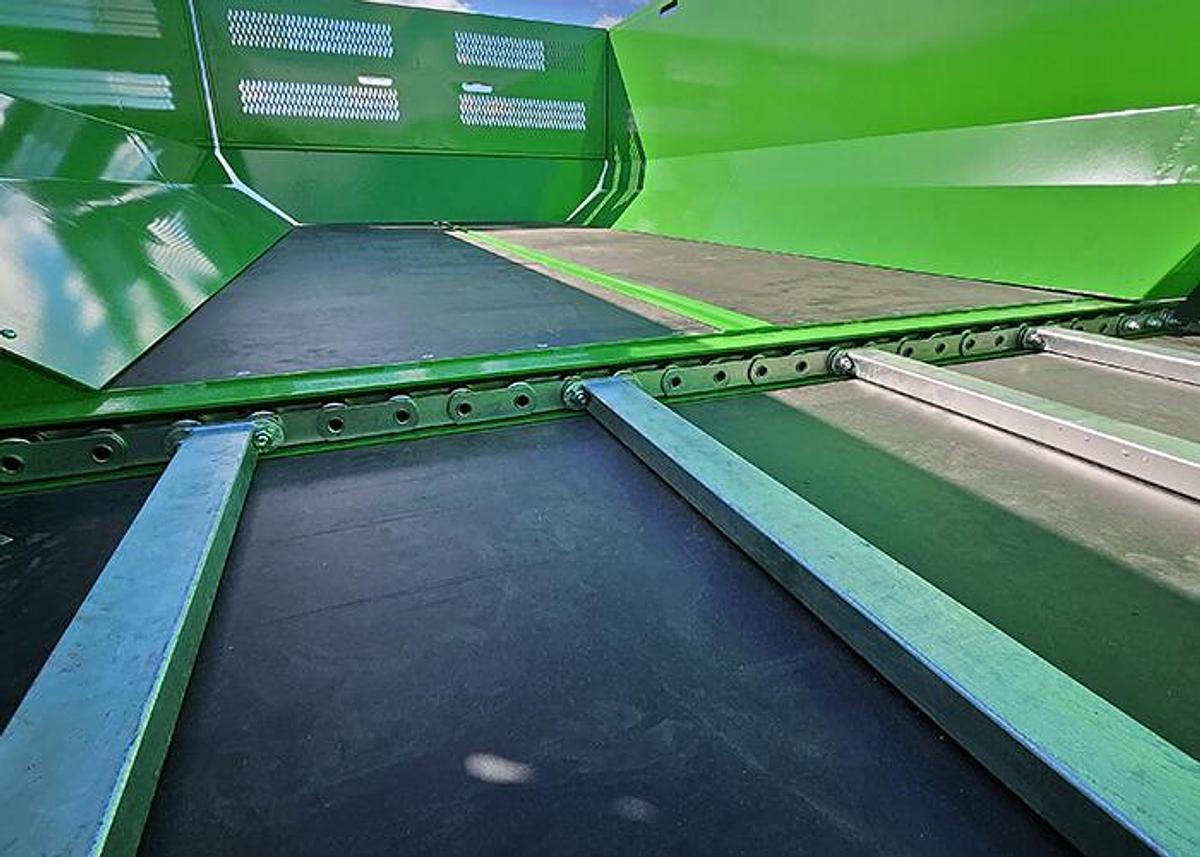

3. Trouble-free Stepless Floor and Load Dividing Design

The Hustler Combi RX®² range features a flat floor design that ensures a smooth transition between the unique, 2-speed chainless rear bed floor and cross floor, eliminating any spillage of maize/corn silage between them.

This innovative design prevents downtime caused by root crops bending bars and jamming the rear bed floor. With no staged floors, you’ll enjoy ample ground clearance, making operation in rough terrain a breeze. Take a closer look at the internal bin design, exclusive to the Hustler Combi RX®² range, and appreciate its simplicity. The proven dividing system effectively reduces loads and stresses on drives, motors, shafts, and the floor, significantly extending the wagon’s working life.

4. Compact Design for Unparalleled Manoeuvrability

The Combi RX®² feedout wagon range offers an average 28% increase in load capacity with bales compared to other multi-purpose wagons, making it the most compact and maneuverable option in its class.

With its unique and improved drawbar design, the RX² Range provides industry-leading clearance and enhanced maneuverability. This design minimizes the risk of damage to gate posts or the machine itself, offering operators a hassle-free experience. In fact, the RX148² boasts a remarkable turning circle of 7.8 meters (23 feet), while equivalent-sized wagons require 20.8 meters (65.6 feet)!

5. Unmatched Visibility

With industry-leading visibility on the load behind, feeding out perfect feed rows has never been easier, putting you in control.

The Hustler Combi RX®² range offers see-through visibility on the bin and the elevator thanks to openwork panels. The ability to see the entire load from the comfort of your seat and the addition of new elevator spill panels allows you to see precisely how much feed you carry and how much is coming up the elevator, resulting in improved feed control and operator safety.

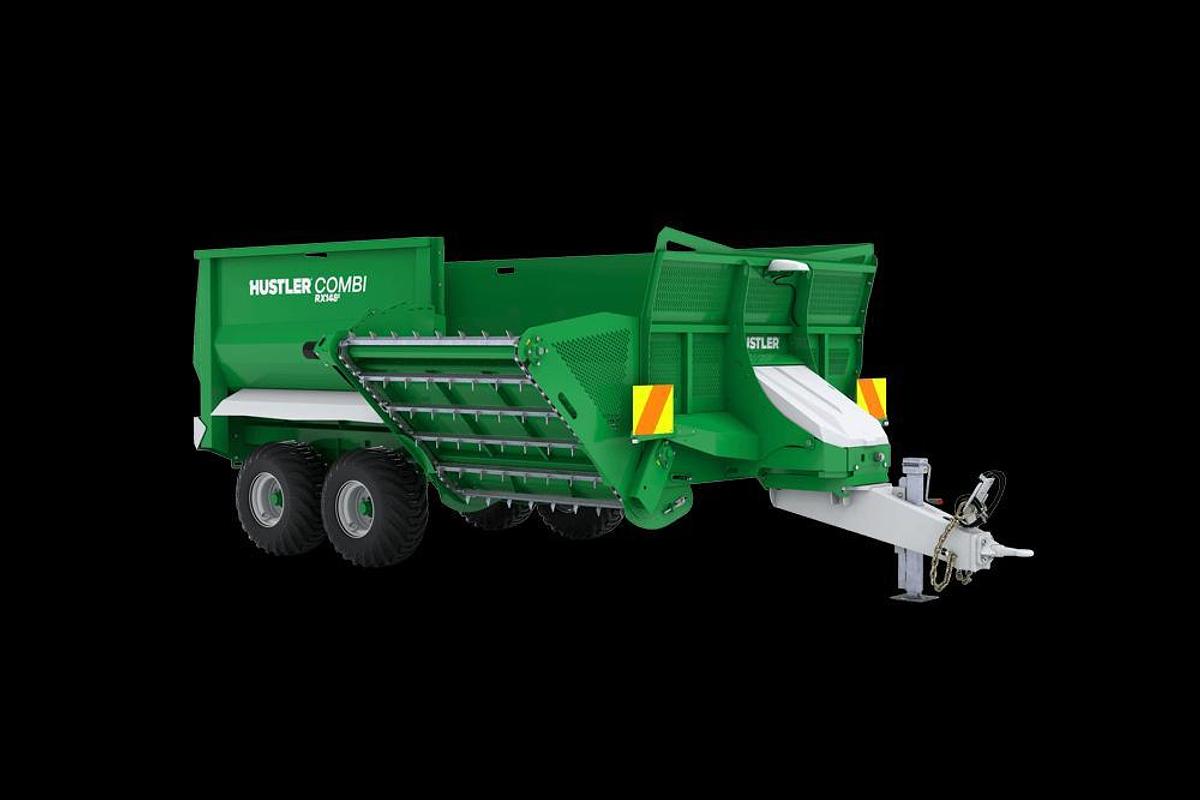

COMBI RX148²

Includes as standard equipment:

Feed Control – with silage & bales mode

Access Ladder

Feedpad optimised design

Elevator spill retainer panels

Scale Ready

Remote Greasing

Joystick controls

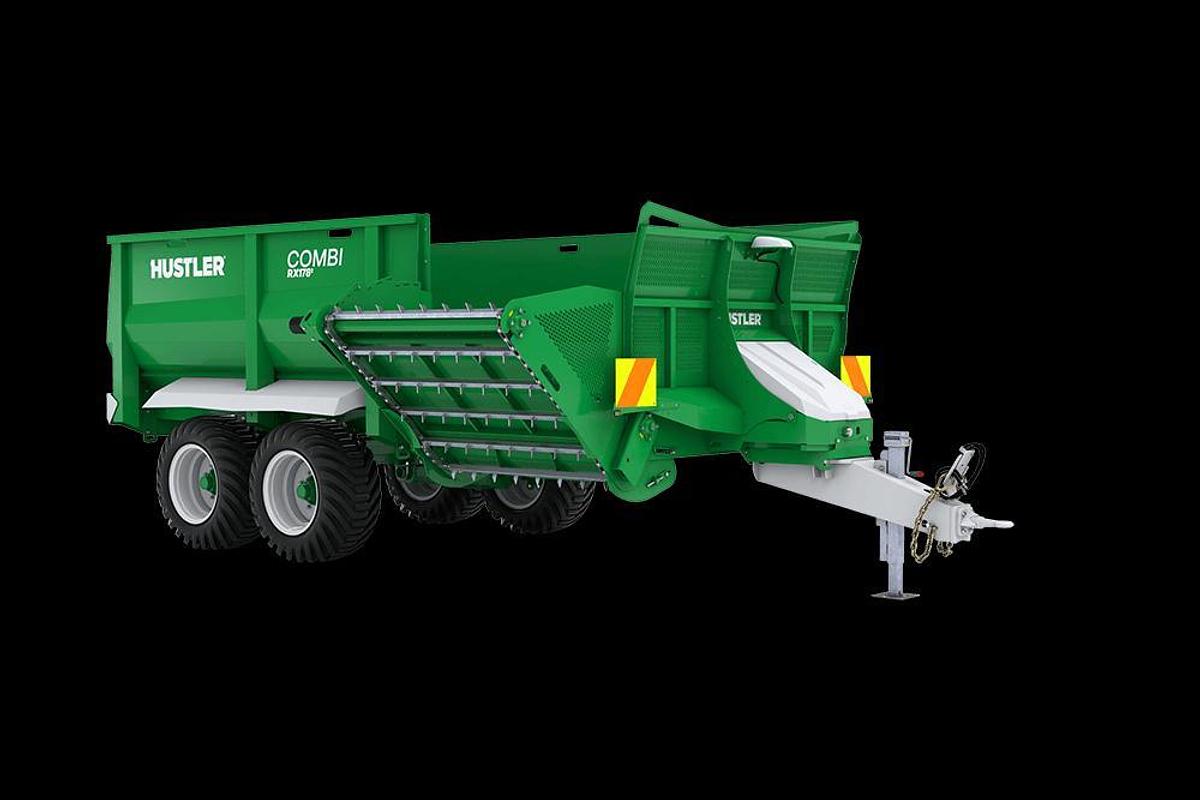

COMBI RX178²

Includes as standard equipment:

Feed Control – with silage & bales mode

Access Ladder

Feedpad optimised design

Elevator spill retainer panels

Scale Ready

Remote Greasing

Joystick controls

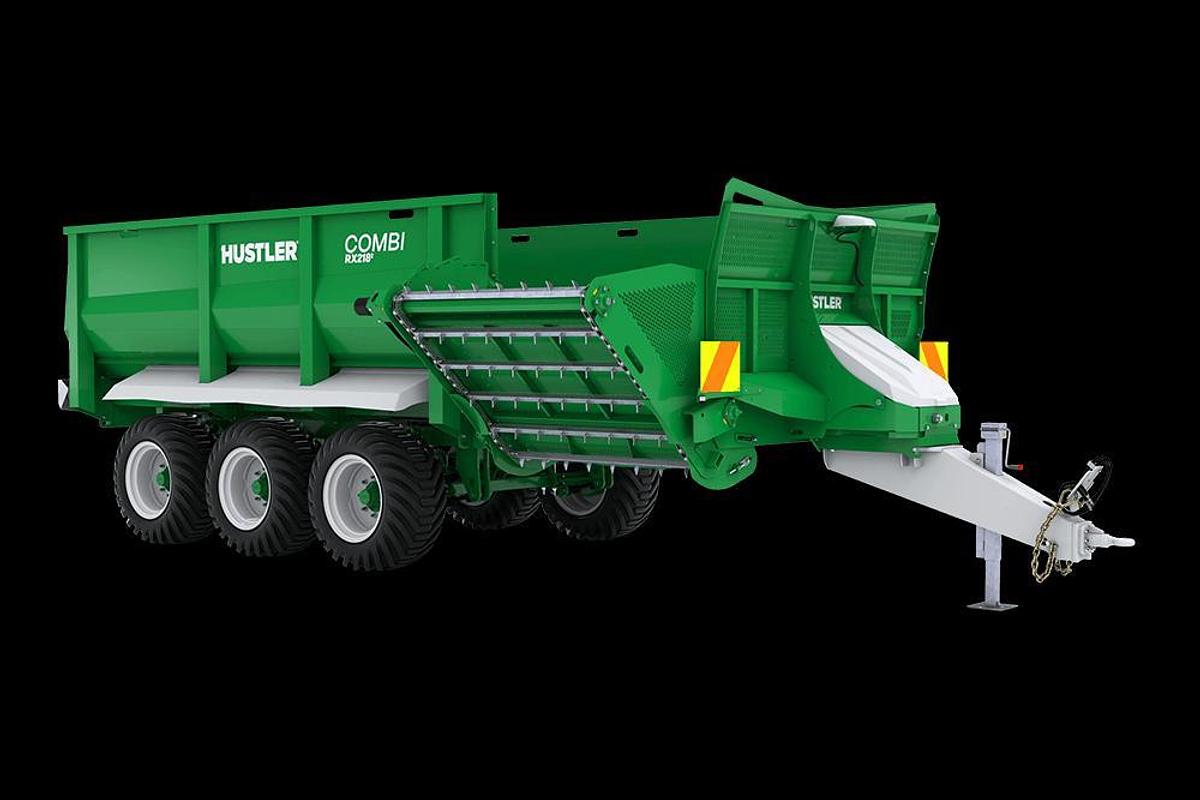

COMBI RX218²

Includes as standard equipment:

Feed Control – with silage & bales mode

Foldable Access Ladder

Feedpad optimised design

Elevator spill retainer panels

Scale Ready

Steering axle

Joystick controls

Key Features

Chainless rear floorInternally Ported RamsFingertip controlChains, drives and feedbarsFloorsOptional Trough / Bunk Feeding PackVisibilityAxlesDrawbarDrawbar eyeChain TensionersSelf-aligning bearingsElevator drive systemTie PointsScale ReadyProtected vital partsModern aestheticElevator FansGround clearanceLoad dividing designAccess LadderHose HolderGearbox drivesFeedpad optimised designCentral GreasingCable and hose tracksMudguards / Fenders

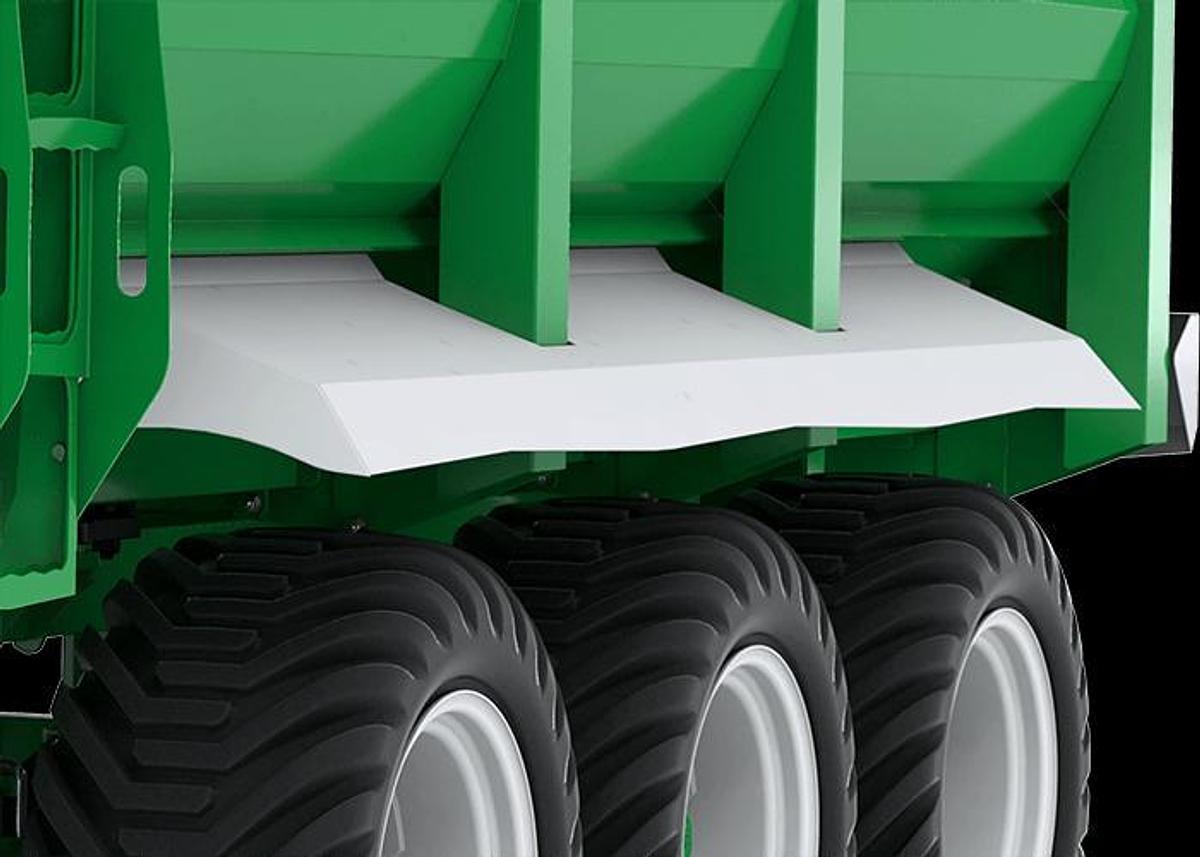

Built-in tapered mudguards / fenders

Tapered mudguards/fenders are included as standard equipment on all wagons in the Combi RX®² range to prevent material buildup during loading.

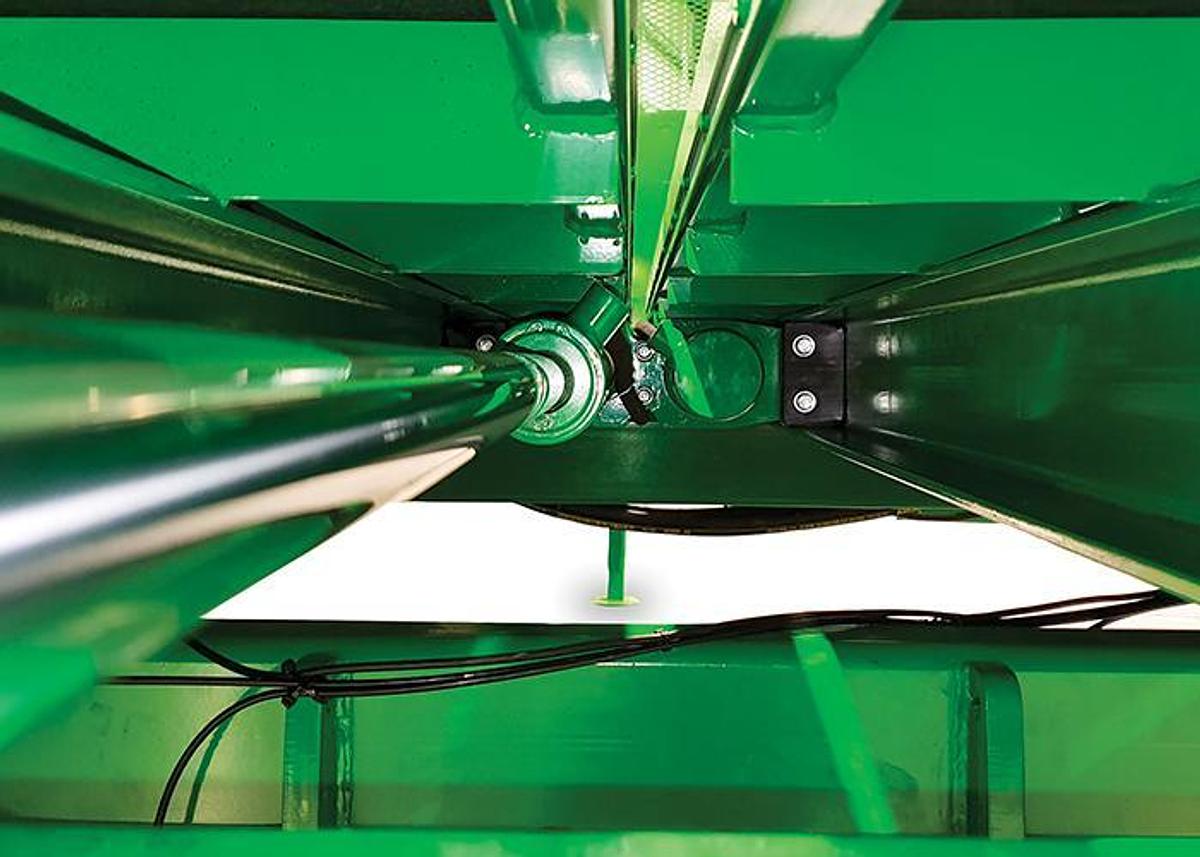

Twin-speed chainless rear floor

Bid farewell to chains with the rear floor of the Combi RX®² multi-feeder range! Our innovative design features a twin-speed rear pusher blade using hydraulic cylinders and greaseless slides with up to 5 times longer replacement life (if you ever get to replace them!) ensuring smooth operation, minimal maintenance and extended service life. The Combi RX®² also includes a redesigned pusher blade for increased strength, simplicity and reduced weight.

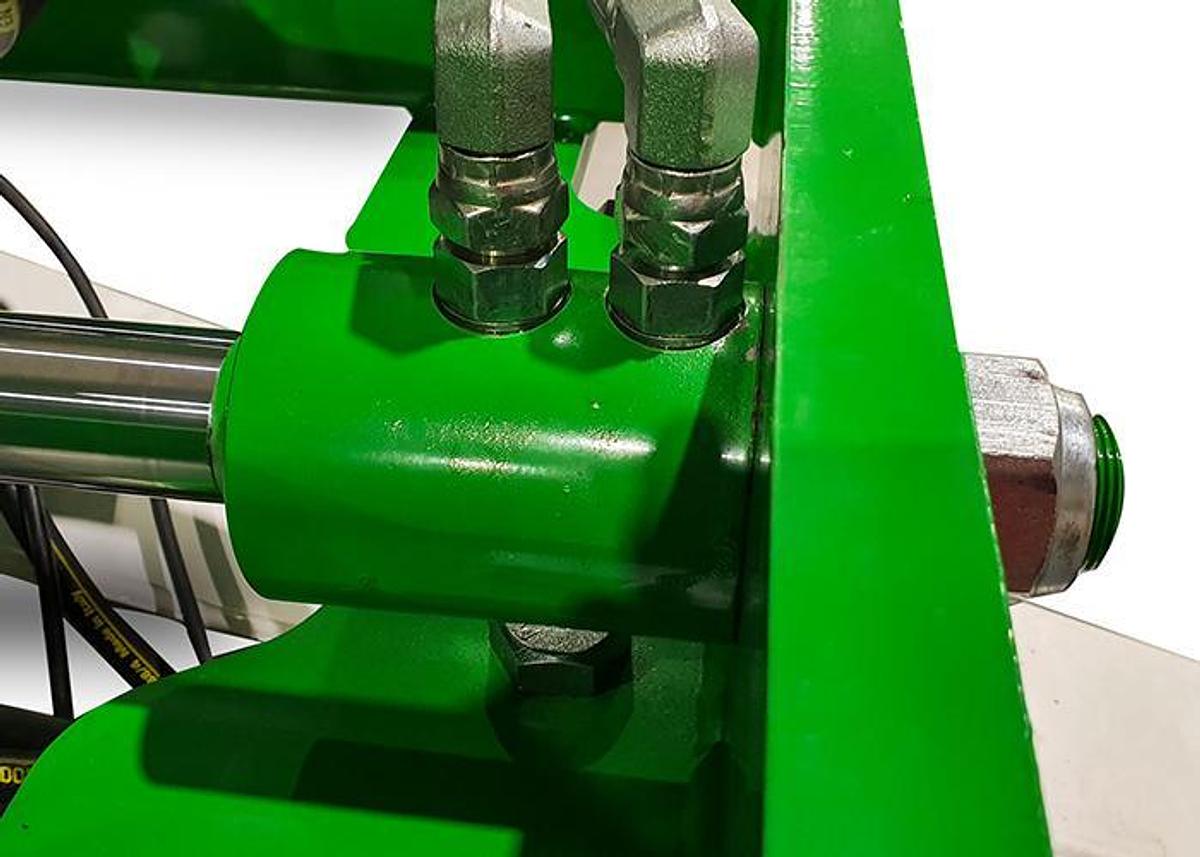

Internally ported rams

Internally ported rams eliminate hose failures and downtime, showcasing another clever innovation from Hustler. The Combi RX®² multi-feeder range features larger pushing rams to provide up to 34% greater pushing power. Massive sticky, dense, wet loads are a breeze.

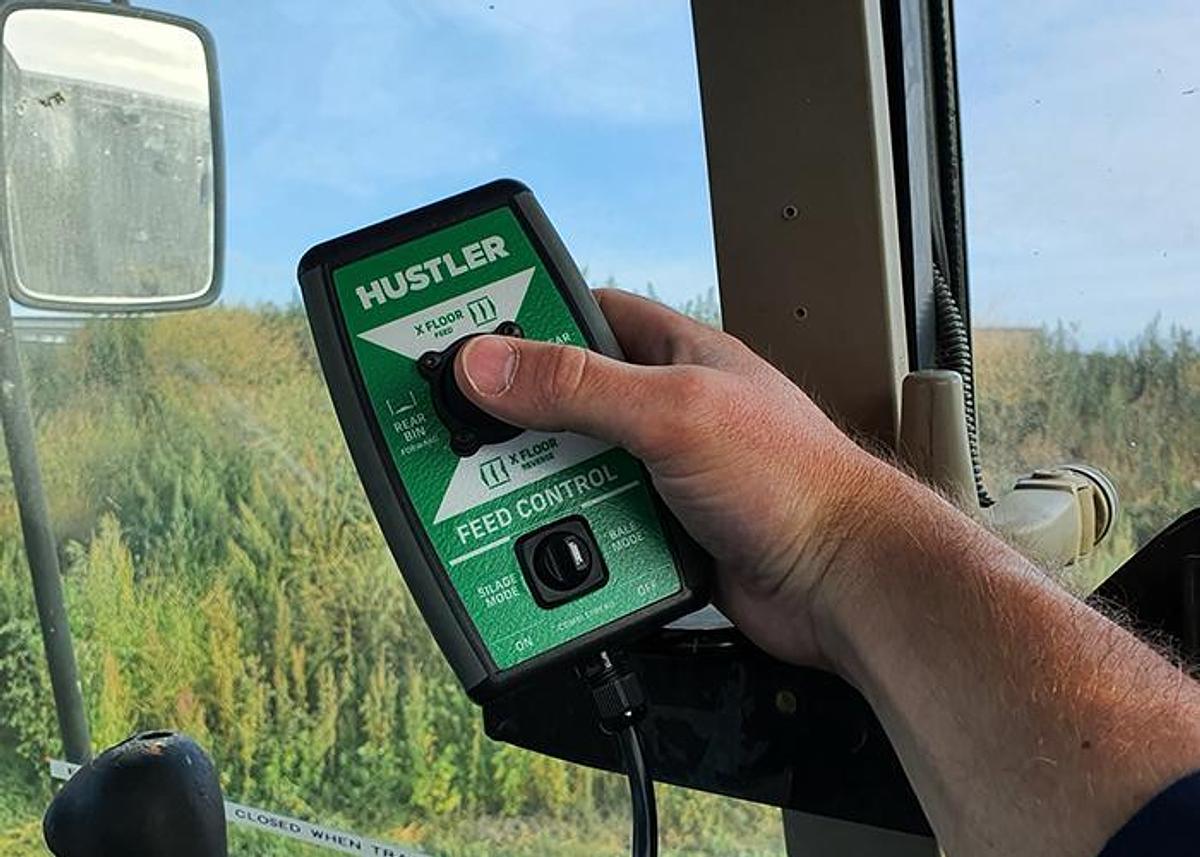

Fingertip control over the entire operation

The standard Feed Control™ in-cab electric joystick provides precise control over all feeder functions, allowing for easy management of various feed types and densities. Automated and manual control over each floor with a silage and bale feeding modes are readily switchable for optimal efficiency.

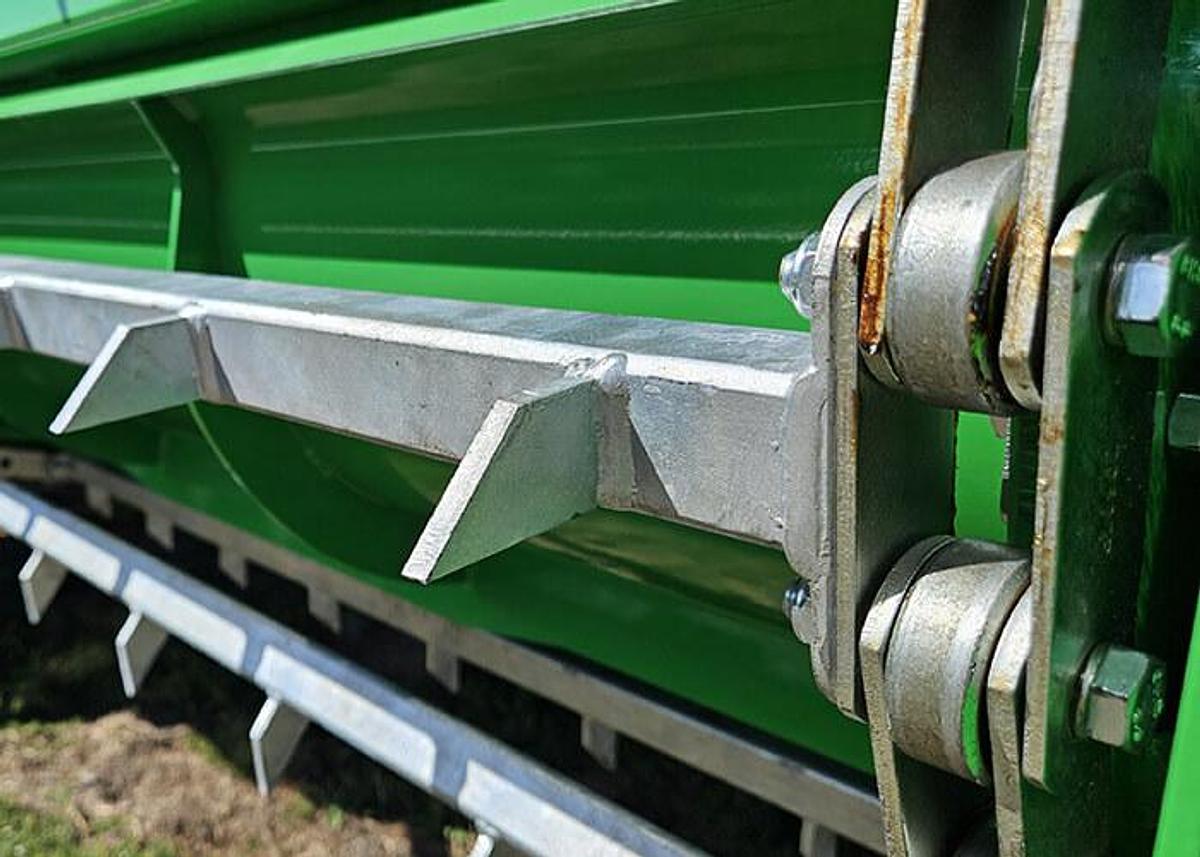

Toughest chains, drives and feedbars yet

Featuring high-tensile Bisalloy® sprockets, robust zinc-plated 24,000lb combined-strength roller chains, and larger 47.5 mm (1.87 in) diameter rollers and pins, the Combi RX®² handles demanding loads effortlessly. The new chain guides on the cross floor ensure straighter tracking with no derailing, while larger RHS feed bars offer optimal strength.

Impact-resistant and low-friction floors

The heavy-duty 15-mm (.59-in) thick puckboard floors of the Combi RX®² endure heavy loads with ease while providing a smooth surface for efficient feed flow. Compared to wood or steel, they offer reduced friction, cutting power requirements for smoother feed movement. The new wider cross floor design reduces crushing and jamming, with a steeper left-hand side to minimise operator errors.

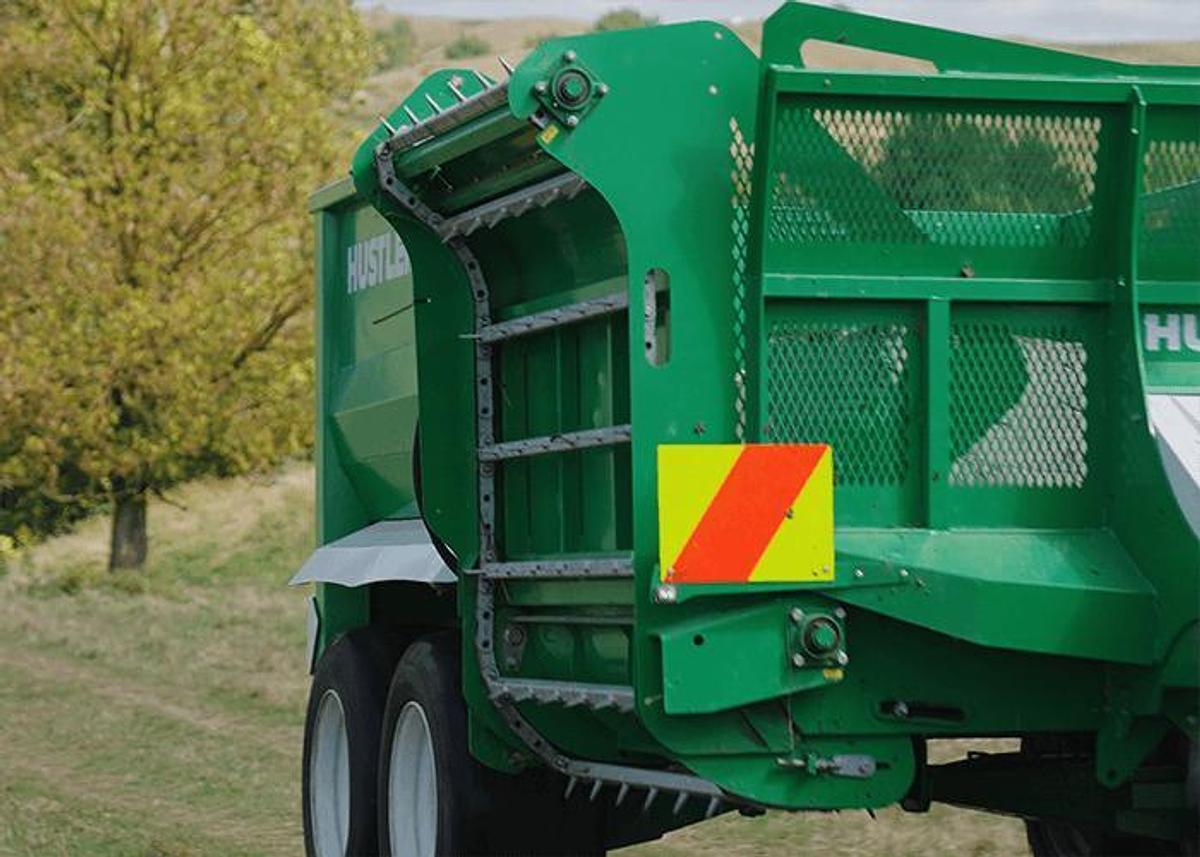

Includes the optional curved elevator, and special feedbars designed for accurate trough feeding

The curved elevator, shaped like a hockey stick, is a new advancement in feed delivery technology for the Combi RX®² range. Combined with its special feedbar design, this curved elevator offers better trough feeding, ensuring a more even distribution of feed across the trough. The improved release point guarantees accurate feed placement, enhancing feeding efficiency and reducing waste.

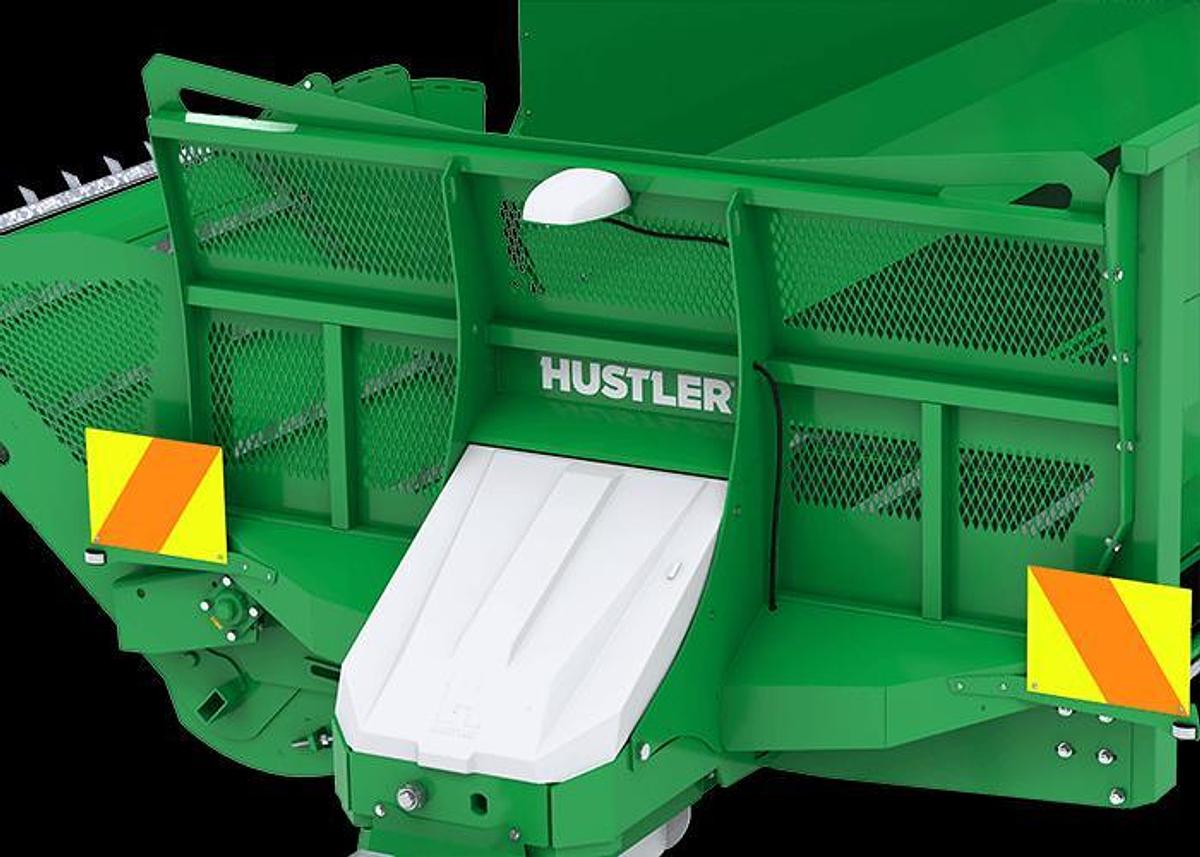

View-through visibility into the wagon

When it comes to visibility no other wagon beats a Combi RX®². See right through from the cab to the rear of the machine with an unobstructed view through the entire wagon and cross floor providing safety and efficiency during feeding operations. The clever cut-out design of the front panel means you can also see the feed coming out of the side elevator.

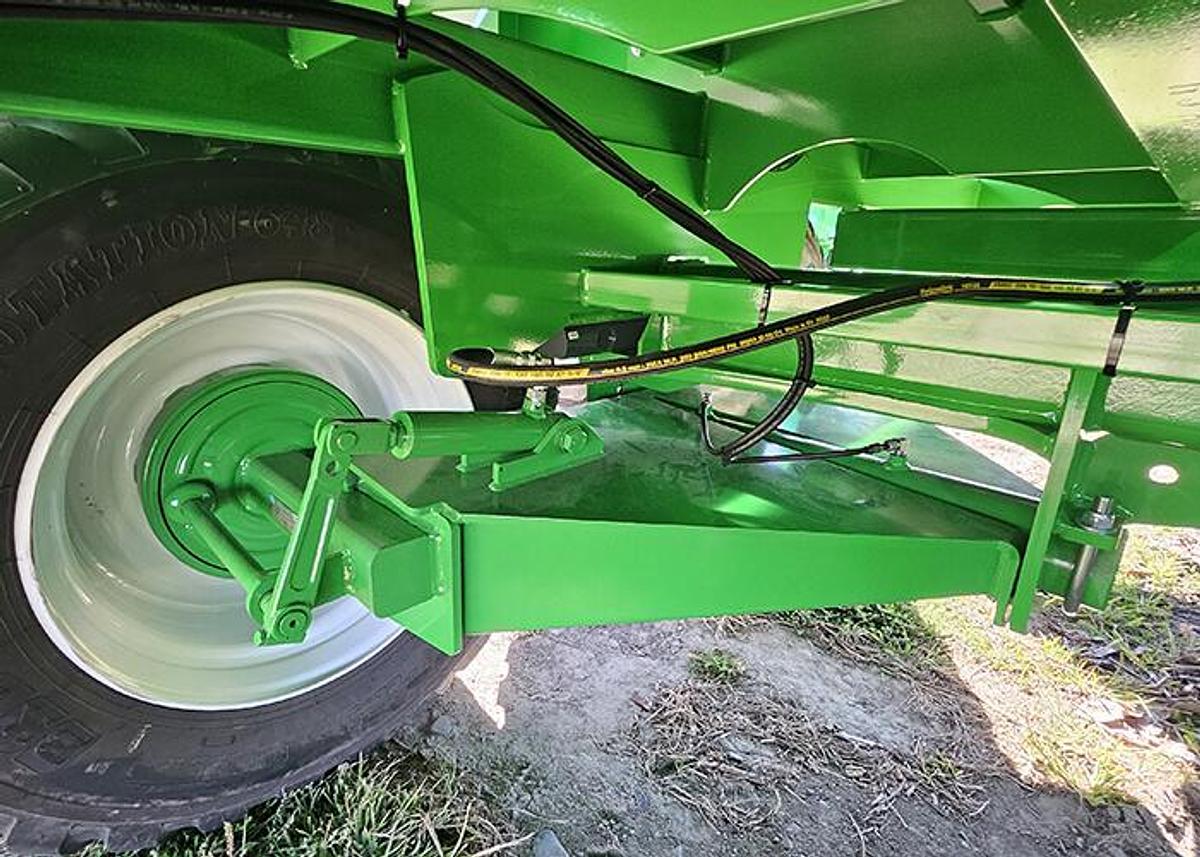

Strongest axles on the market

The massive 2,200 cm² (341 sq²) pivot surface area and 100 mm (4 in) diameter pivot pins ensure outstanding strength and minimize the risk of axle failure. With the pins bolted on the outside and securely fastened on the inside, there’s virtually no chance of them loosening. Additionally, the tandem axles offer a 15-degree oscillation, setting another industry standard.

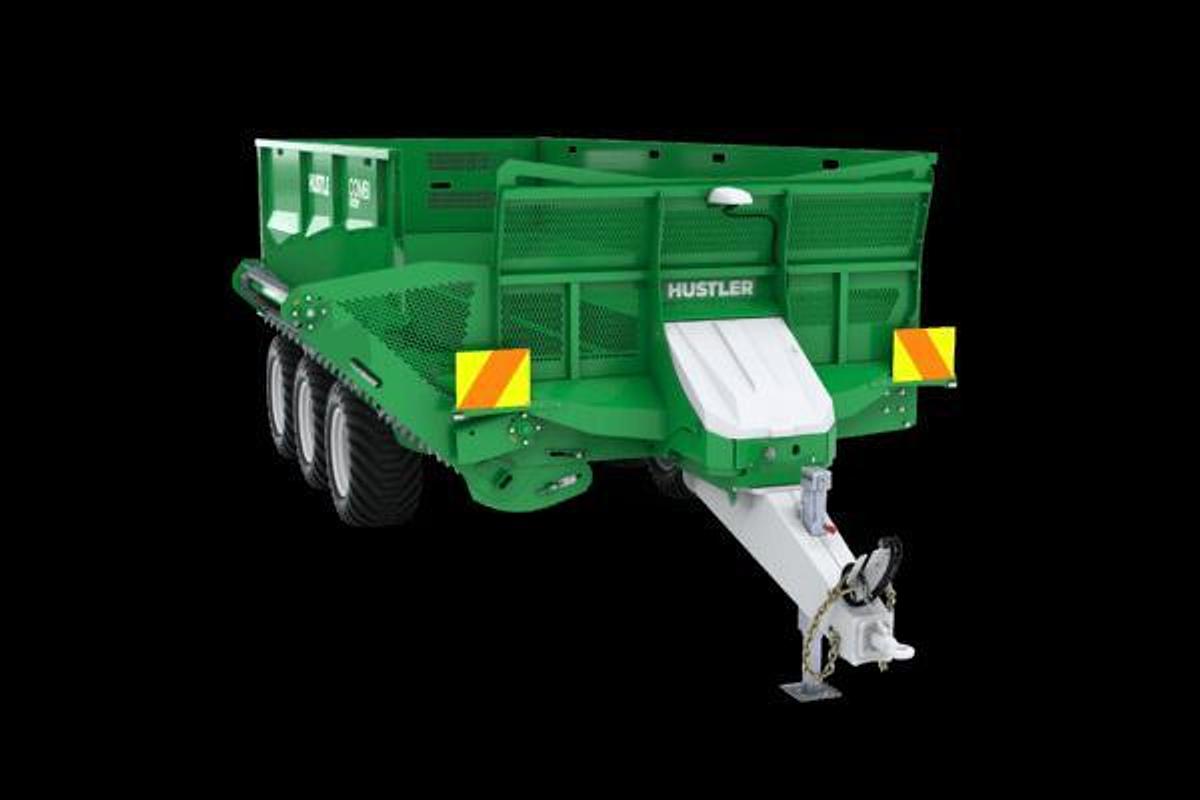

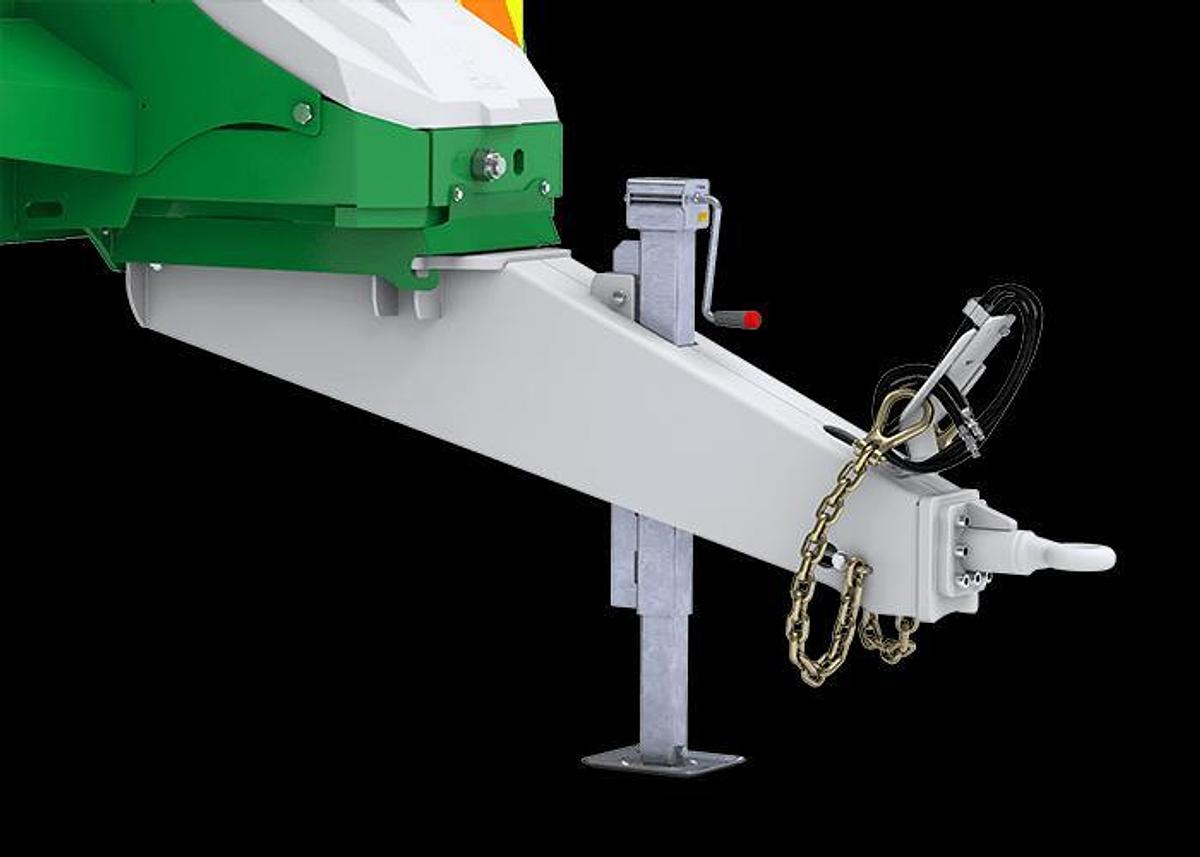

Single post drawbar with massive link arm clearance

The Combi RX®² drawbar provides superior maneuverability and generous linkage arm clearance. The new angled chassis rails in the Combi RX®² range allow sharper turns, reducing the risk of tire rubbing. This design evenly distributes the load, when both on the jack and attached to the tractor, eliminating the need for a parking stand.

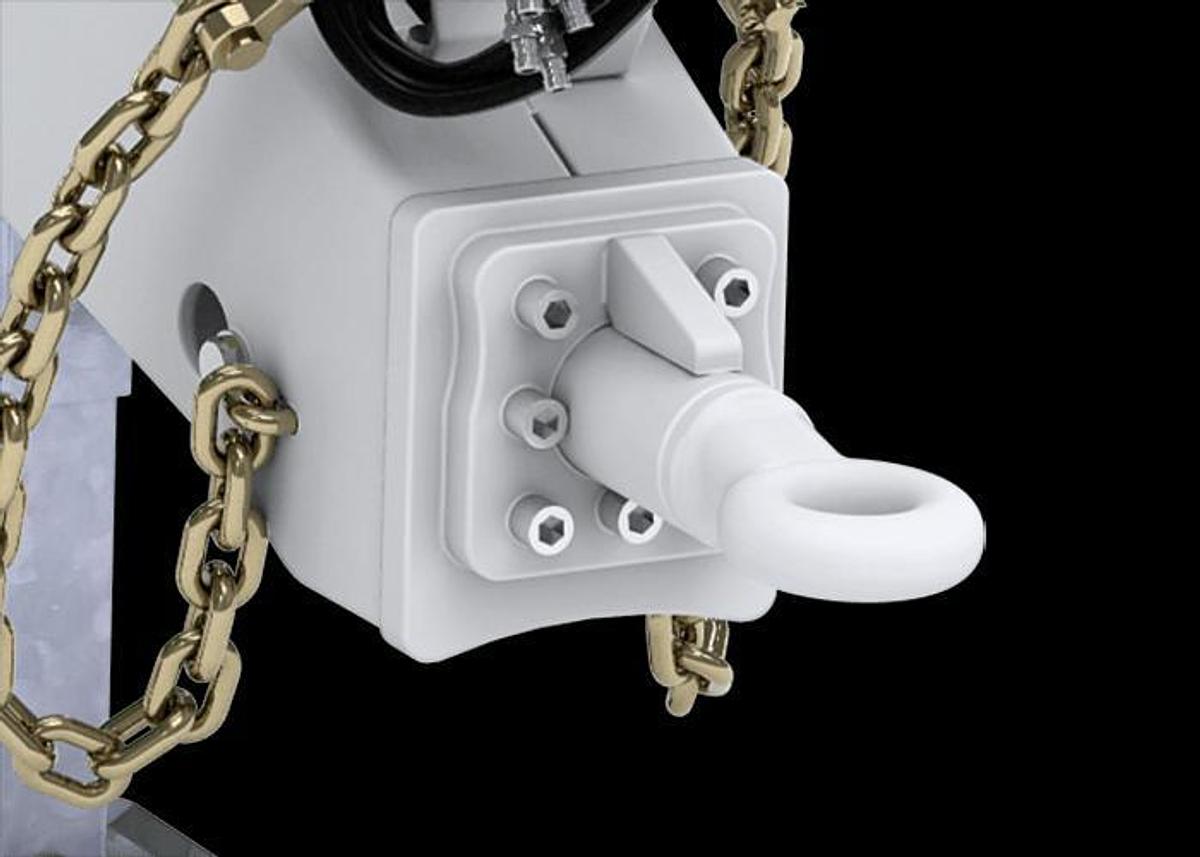

Removable drawbar eye hitch

Featuring a bolted drawbar eye, the Combi RX®² is adaptable to various hitch types, including fixed eye, swiveling, clevis, or spoon type hitches. Its ample clearance also accommodates pickup hitches seamlessly.

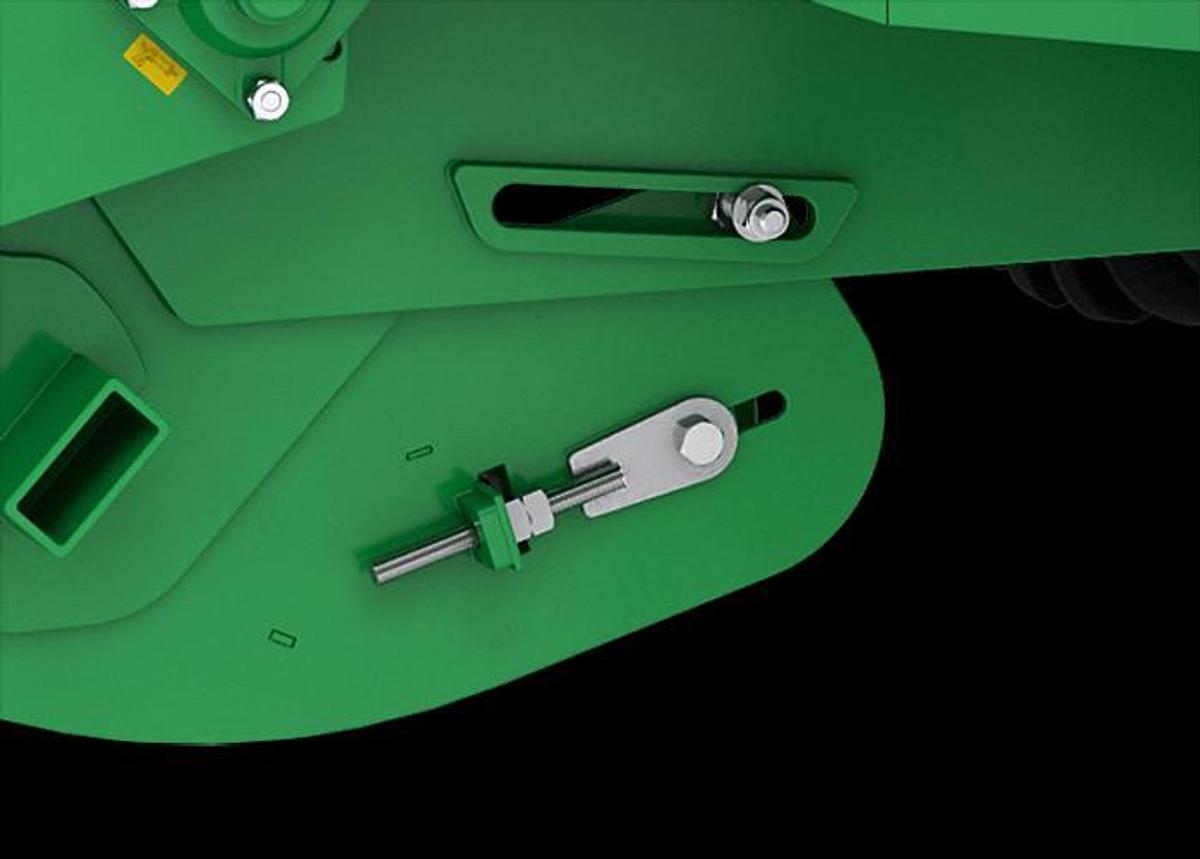

Improved chain tensioner design

All chains feature adjustable tensioners with convenient access for prolonged lifespan and straightforward maintenance. The latest upgrades in the Combi RX®² multi-feeder range enhance reliability with increased tensioner adjustment range and improved access makes servicing easier.

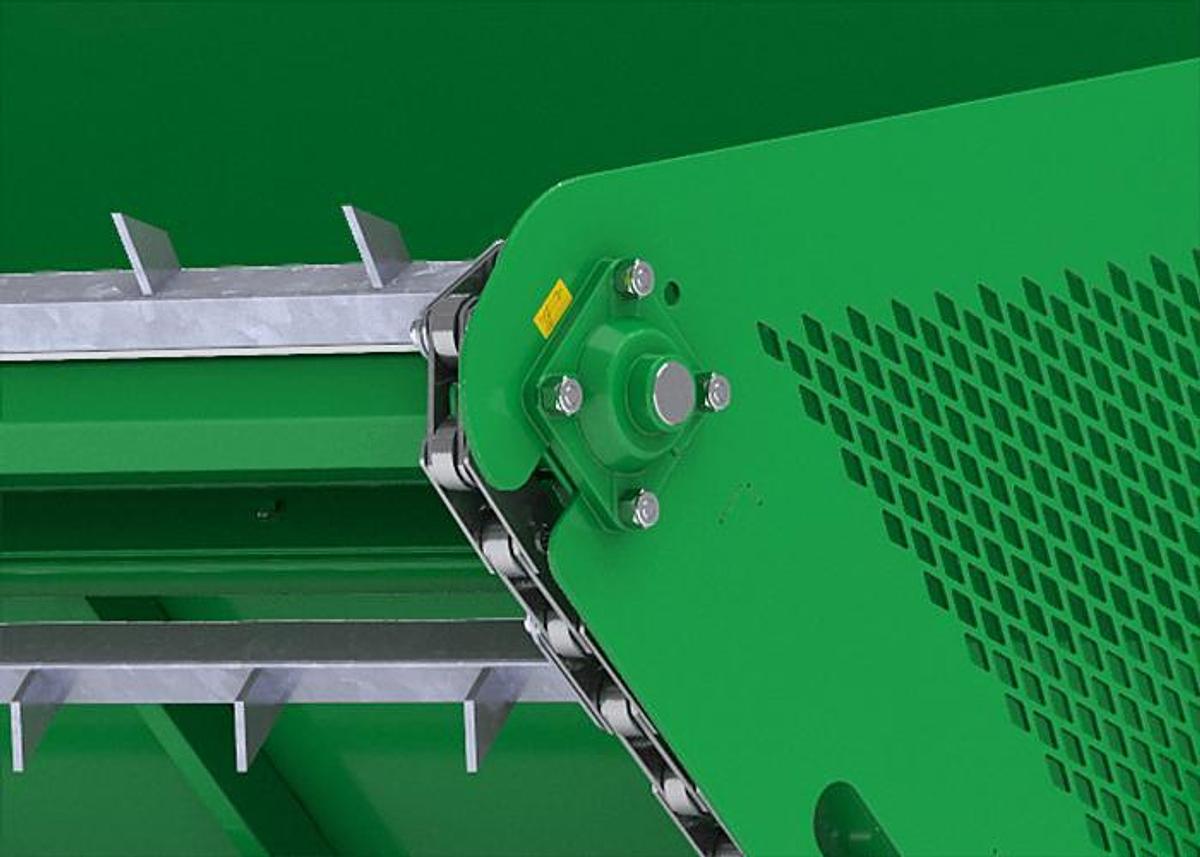

Durable self-aligning bearings

Combi RX®² multi-feeder range features self-aligning bearings for more flexibility, reduced friction, lower maintenance requirements and longer service intervals, enhanced load distribution and reliability compared to bushes.

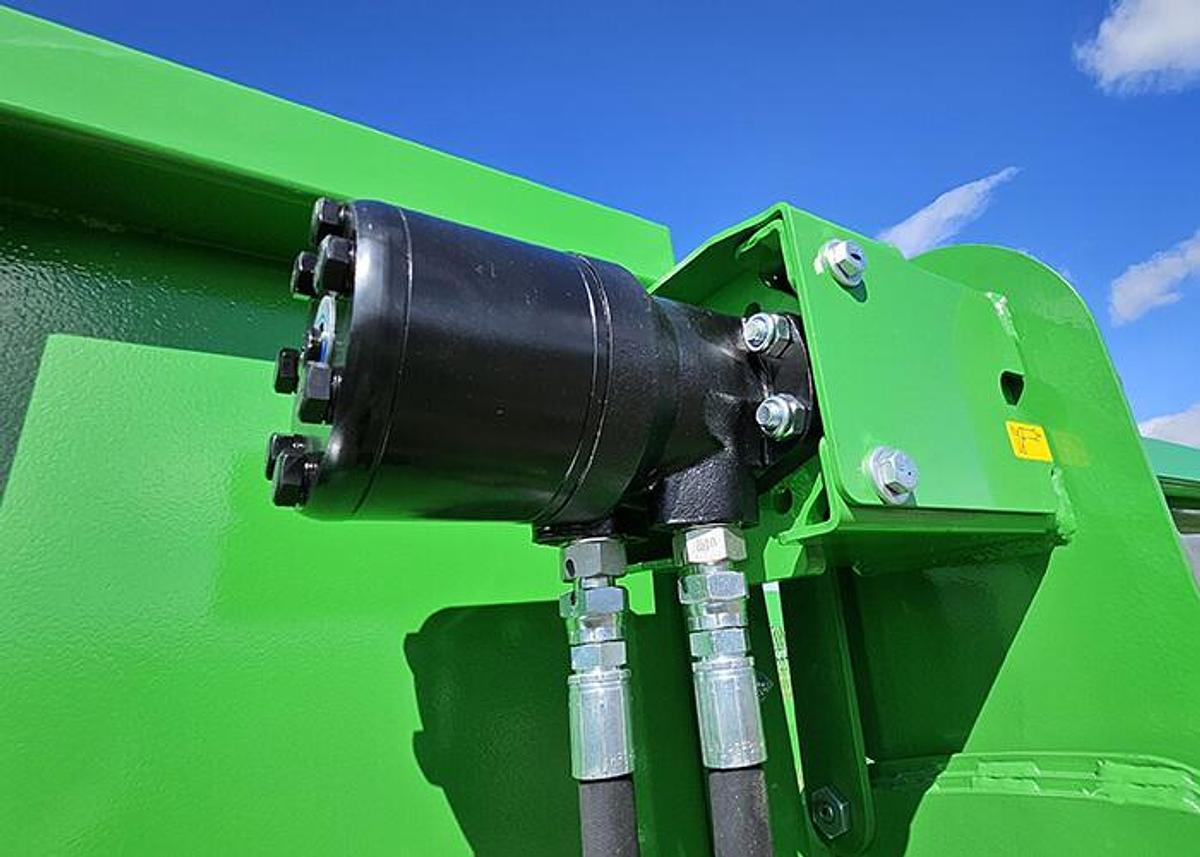

Single elevator ram and improved motor

Featuring a single elevator ram and an enhanced motor, the Combi RX®² ensures efficient operation and minimal maintenance. Positioned to avoid damage from debris, the elevator ram eliminates twisting and protects the seals from tire debris and silage juices. Additionally, the revamped motor connection system provides a secure, locked-on and foolproof solution, with 3 redundancies built in for reliability preventing downtime.

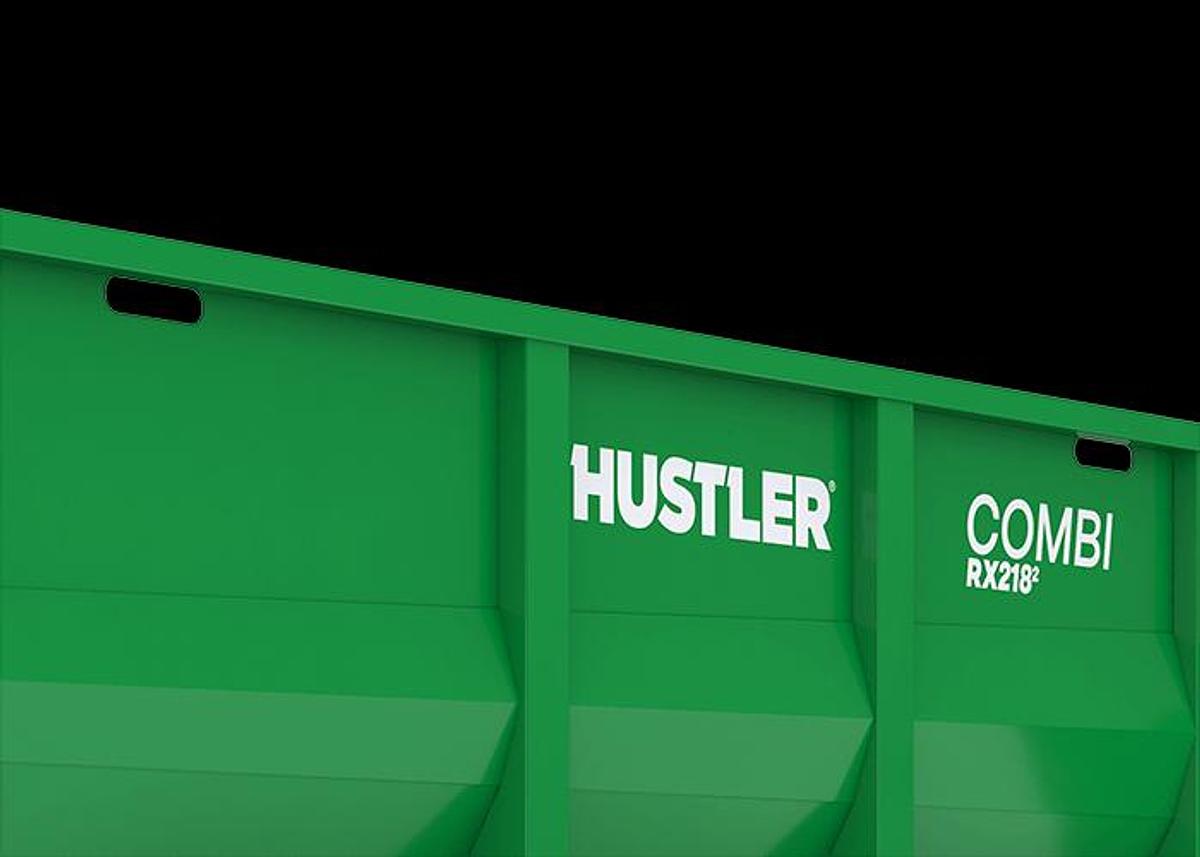

Bale string tie points

Cleverly integrated tie points along the wagon’s length allow for easy tying of square bale strings, enhancing operator safety and convenience. Simply cut, tie, and clean bale strings after feeding out.

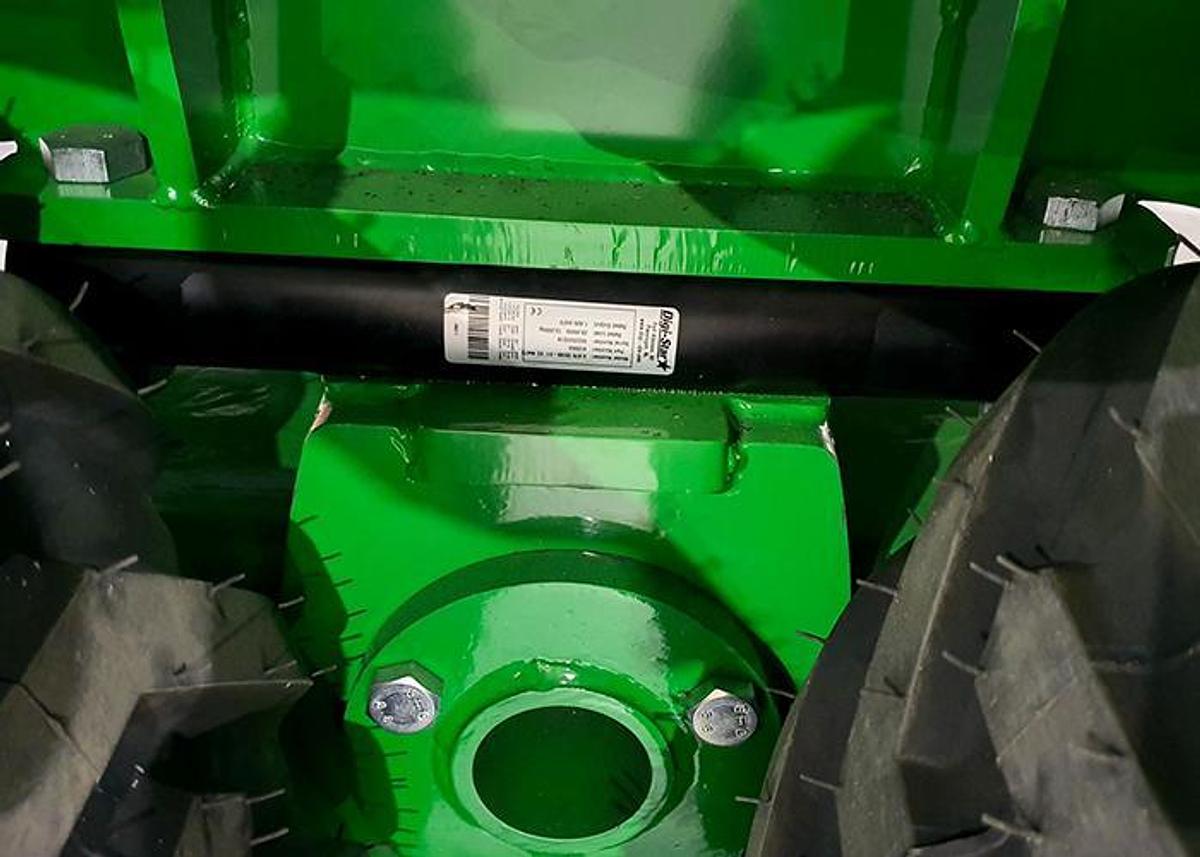

Unique design scale ready integration

The unique design of the Combi RX’s load cell integration, 2.46 times stronger than the old design, simplifies scale installation. With fewer load cells, there’s less wiring, fewer electronics, and fewer potential issues.

All vital parts and components protected

All vital components of the Combi RX®² are safeguarded, ensuring heightened safety and reliability. This includes fully shielded hydraulic motors, drives, and load cells, conveniently located hydraulics and electric valves beneath an accessible bonnet cover at the front of the machine, and covered driveshafts to prevent feed material wrapping and reduce the risk of jamming and blockage.

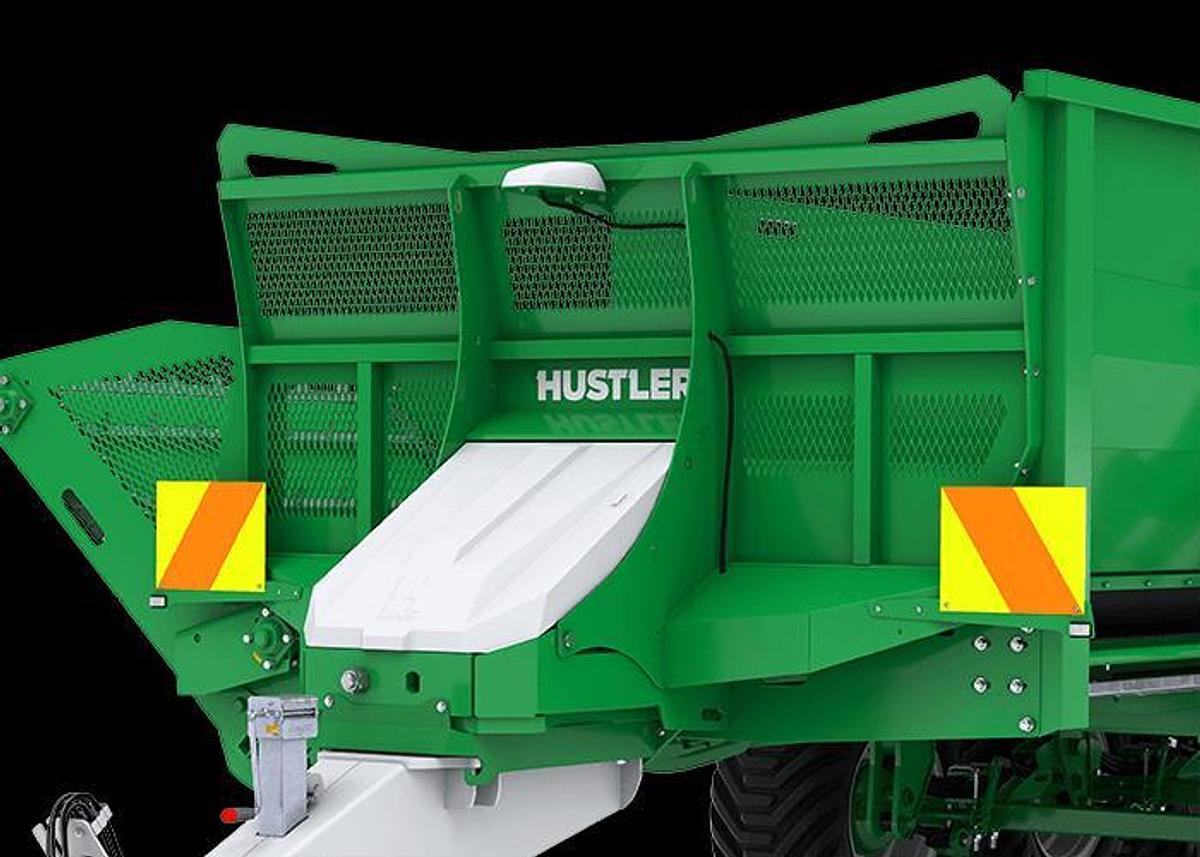

Facelift for a modern aesthetic touch

Combining both form and function, the new high-density polyethylene, easy-to-access front bonnet, and redesigned antenna, paired with the new angled chassis rails design, provides a modern aesthetic touch to the Combi RX®² while protecting hydraulics and electric valves from the elements and scale antenna from impacts whilst loading, and improving turning radius.

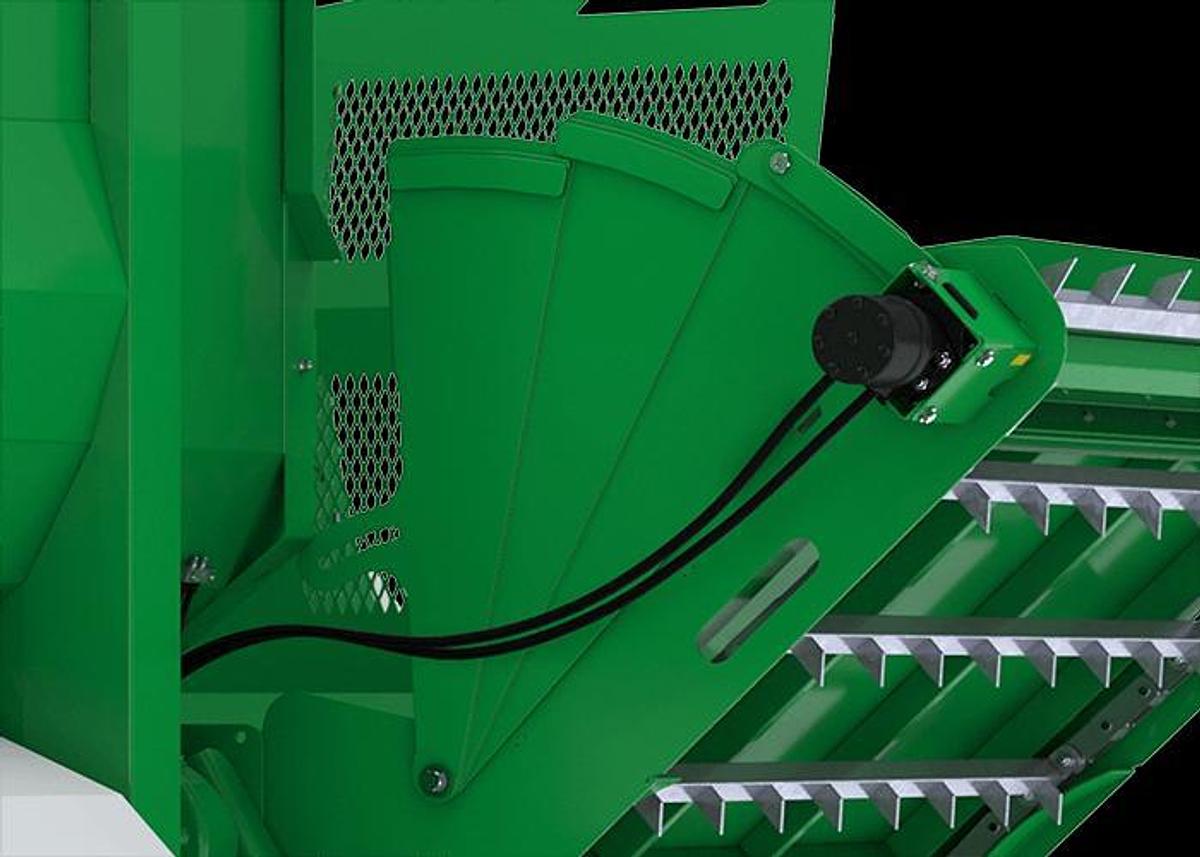

Low maintenance elevator fan panels

Innovatively designed, the Combi RX®² features a single set of elevator spillage fans, minimising maintenance requirements. Through clever engineering, we’ve reduced the number of fans needed for the required tilt angle, eliminating 14 wearing parts from the design and streamlining operation for enhanced simplicity and efficiency.

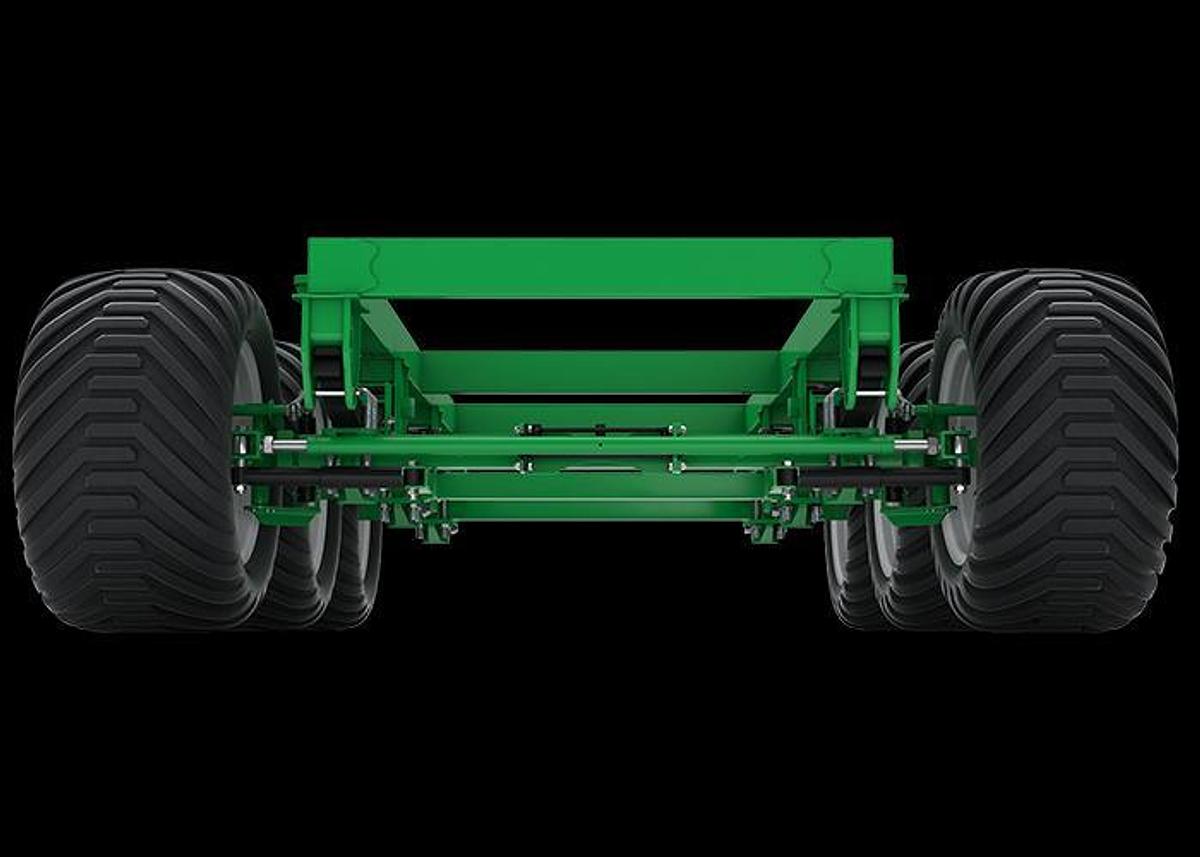

Largest ground clearance

Featuring the largest ground clearance on the market, the Combi RX®² ensures that its elevator remains out of harm’s way, reducing the risk of damage to the machine’s vital components when operating on uneven terrain.

On the RX218² model we developed an improved spring and sub-frame design featuring Bisalloy wear plates with an improved design and thickness so rest assured operators can expect reduced greasing requirements, less wear and lower maintenance, resulting in a wear-block design that no longer requires replacement catering to the needs of high-end users.

Efficient load distribution

The load dividing design of the Combi RX®² ensures reduced stress on all drives, contributing to the longevity of the machine. Additionally, with the floors traveling less per load, they experience less wear and tear compared to other wagons.

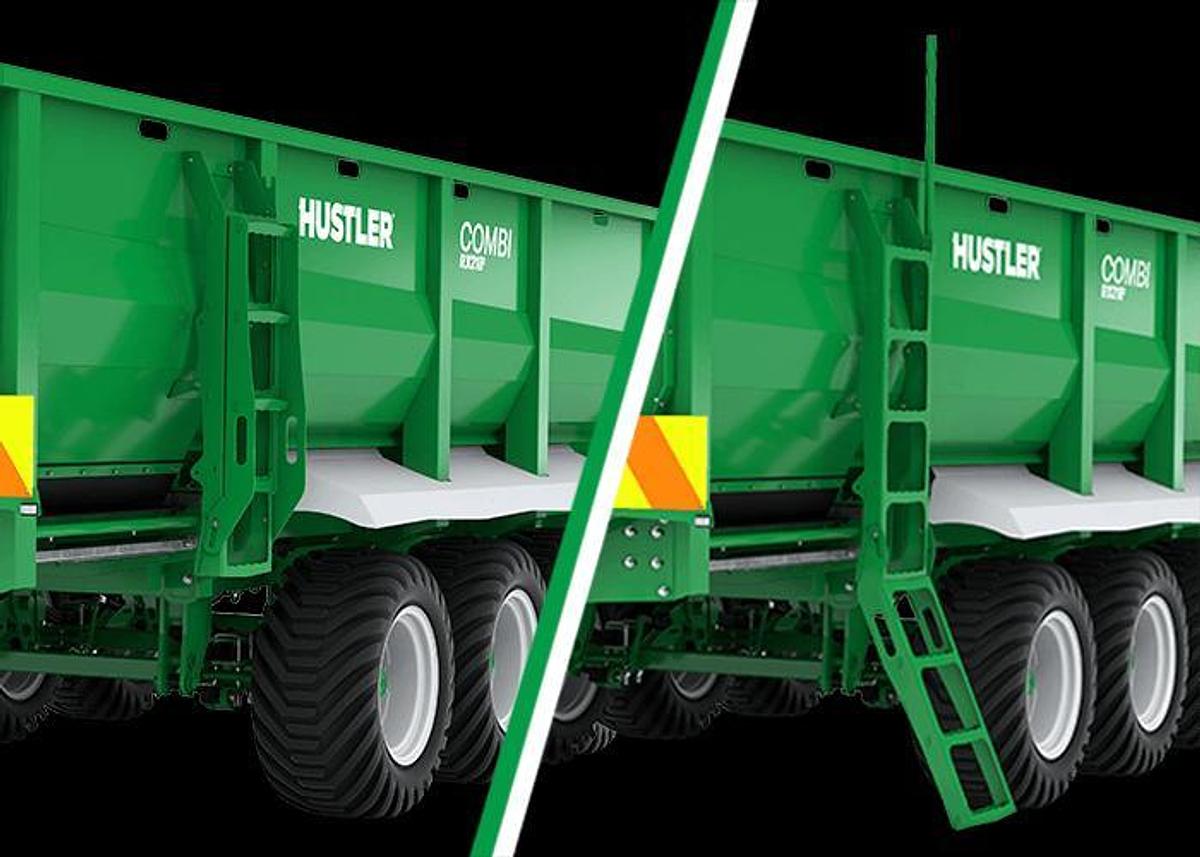

Integrated Access Ladder

This standard feature facilitates safe and easy access to the wagon for tasks like removing bale strings. On larger models, a NEW foldable ladder and handrail are included for added convenience.

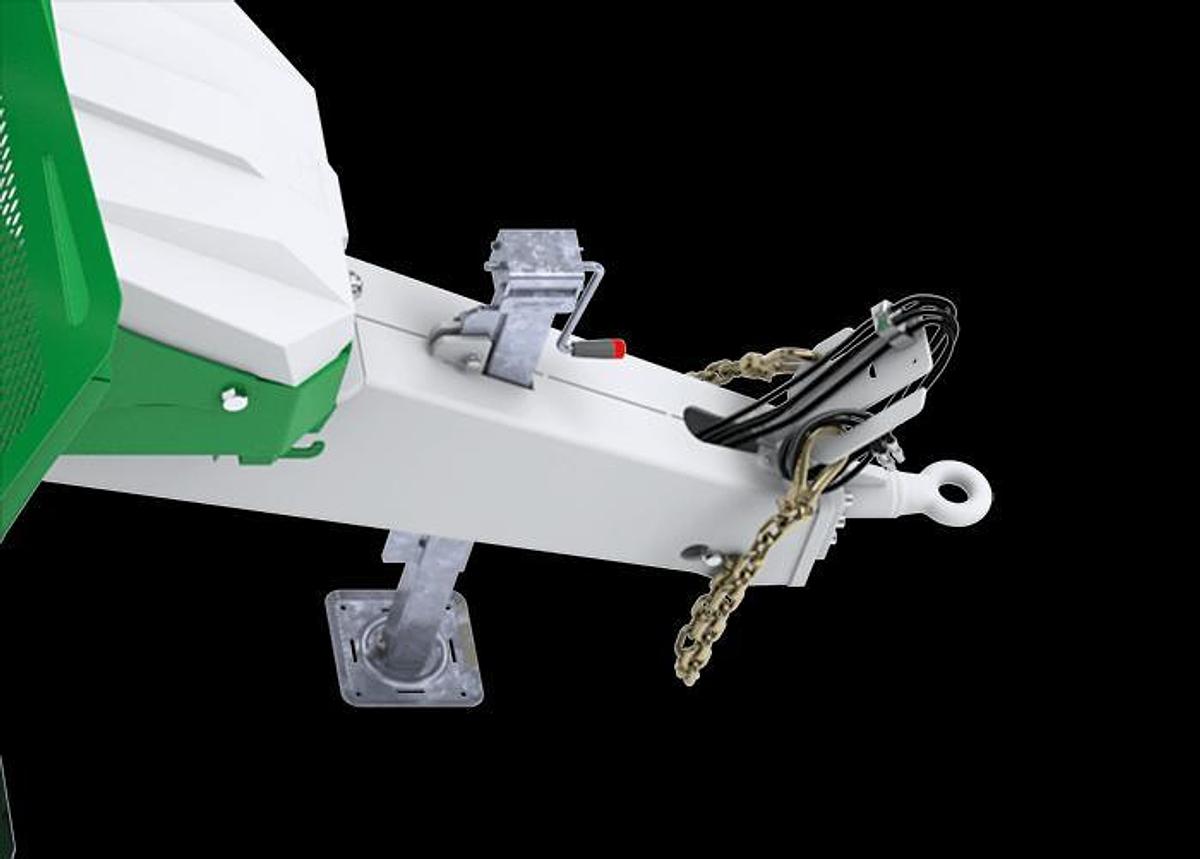

Smart hose holder

Standard integrated hose holder, strategically positioned on the drawbar at the front of the machines, minimise the risk of hose chafing and subsequent downtime.

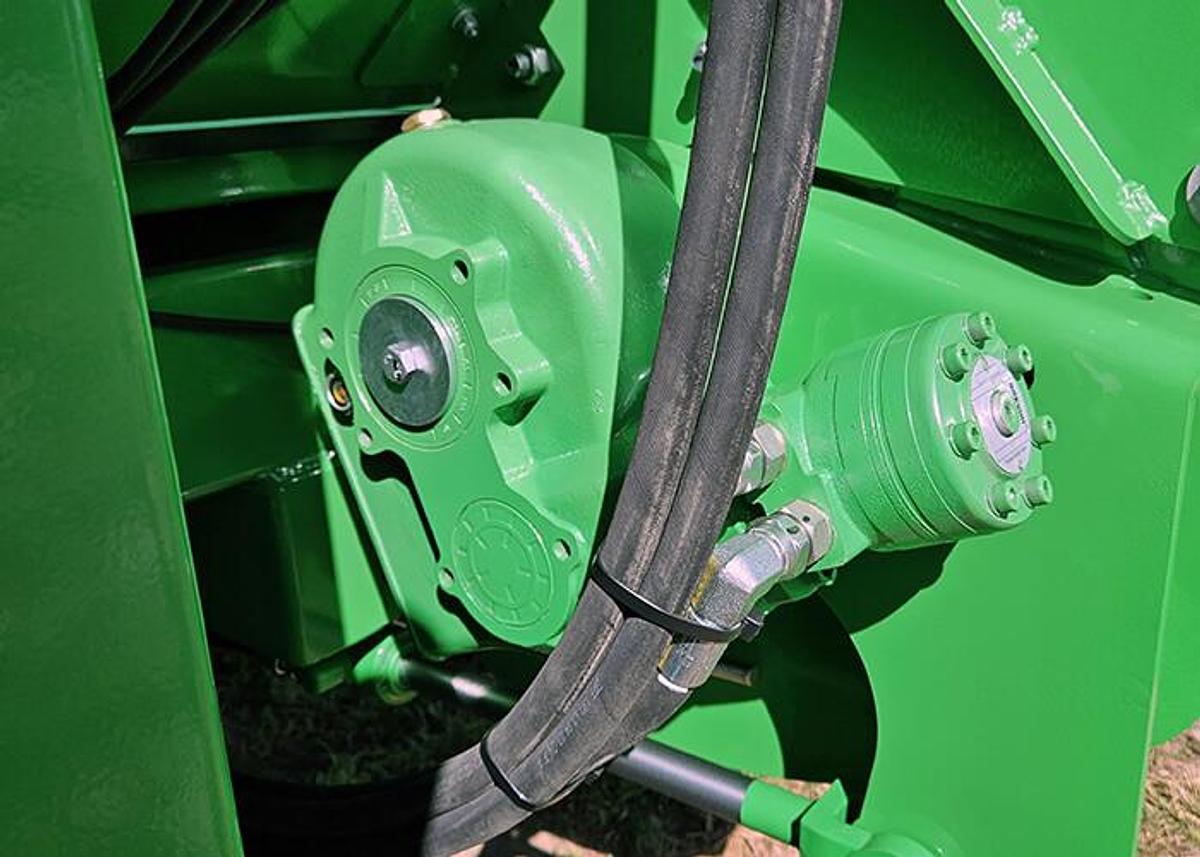

Cross-floor hydraulic gearbox drives

Standard hydraulic gearbox drives are now integrated into all Combi RX®² models to eliminate moving parts, enhancing reliability and boosting drive power.

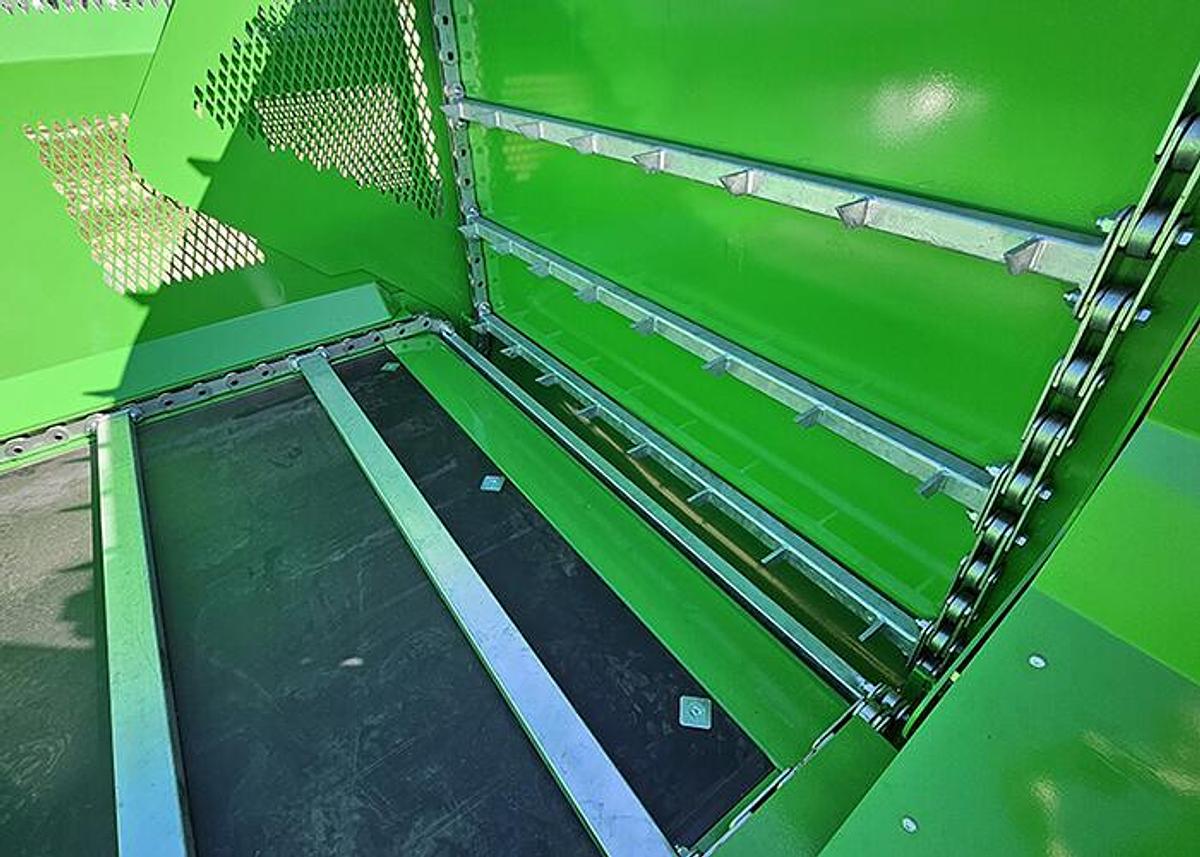

Standard feedpad optimisation for cleaner operation

Included as standard equipment on all models within the Combi RX®² range, our unique feedpad optimised design eliminates feed spillage from underneath the side elevator and prevents feed from accumulating and dropping between the rear and cross-floor, significantly reducing mess on your feedpad – a definite advantage over traditional chain-driven rear floors found on other feedout wagons!

Axle central greasing

Standard on all Combi RX®² models, the central greasing station simplifies maintenance by reaching difficult-to-access grease points.

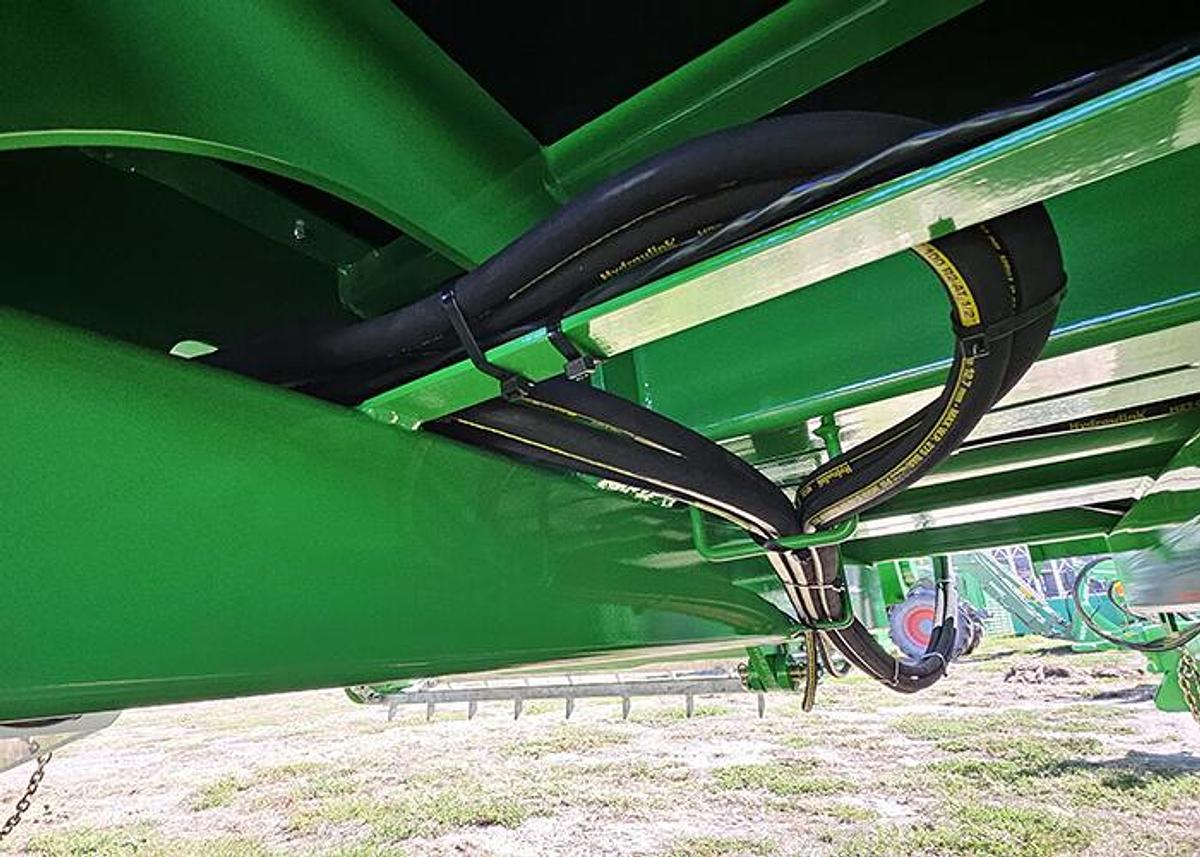

Improved cable and hose tracks

Built-in cable and hose tracks come standard to shield against potential damage. In the latest Combi RX®² models, hose routing has been optimised to minimize chafing and enhance flow.
