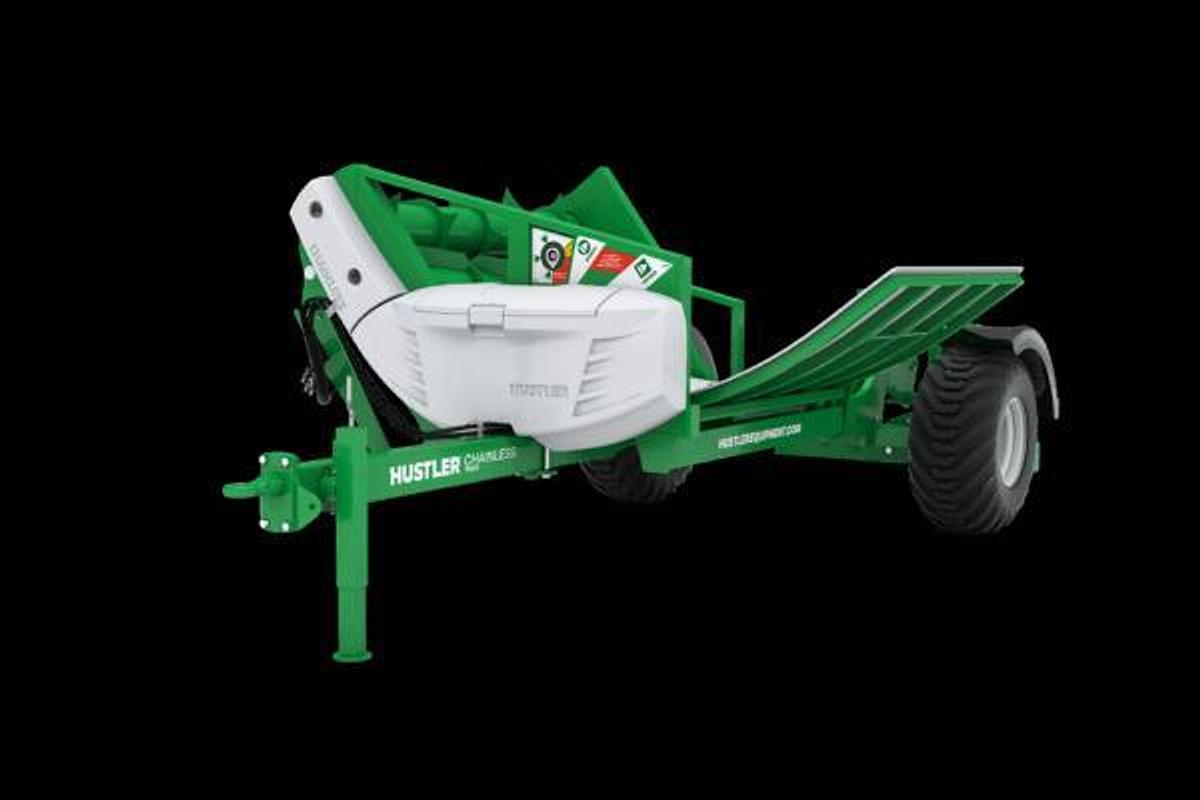

Trailed Chainless Bale Processors

Trailed Chainless Bale Processors

$31,990

or
Call +1 334-343-6213

Description

Pull-type, Self-Loading, Chainless Round & Square Bale Feeder.

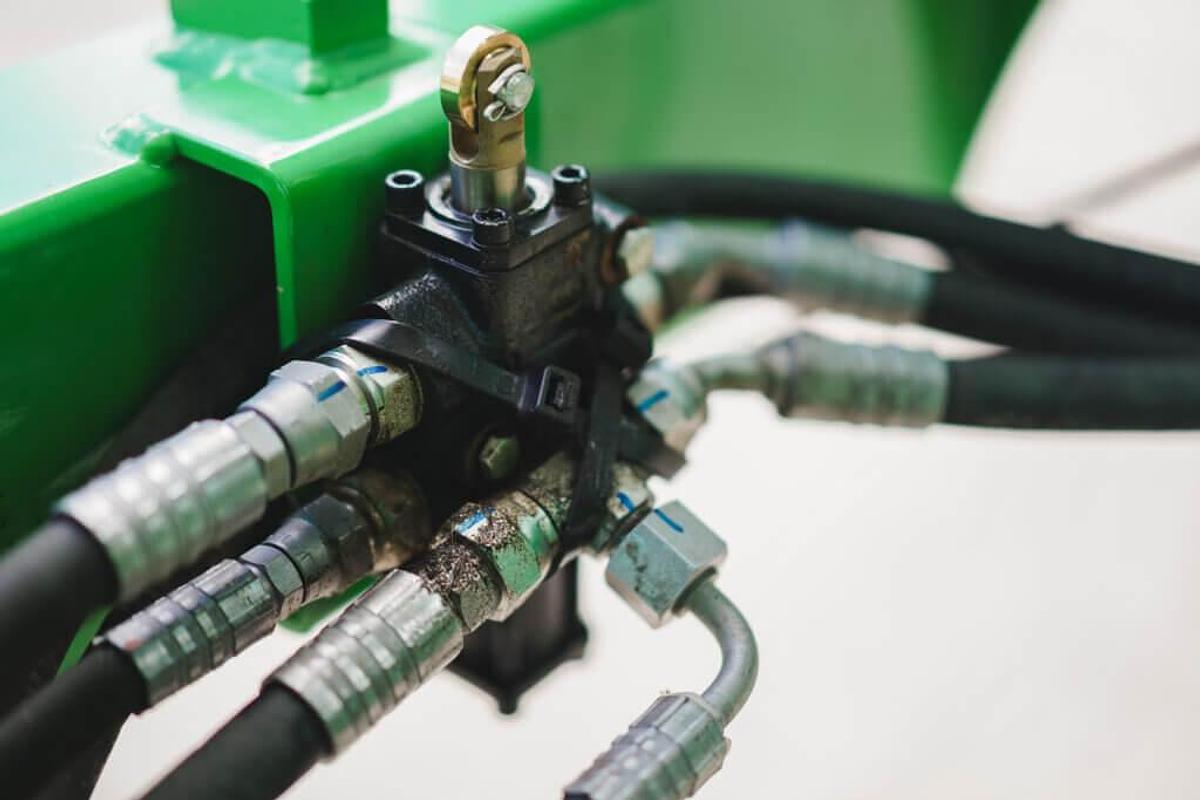

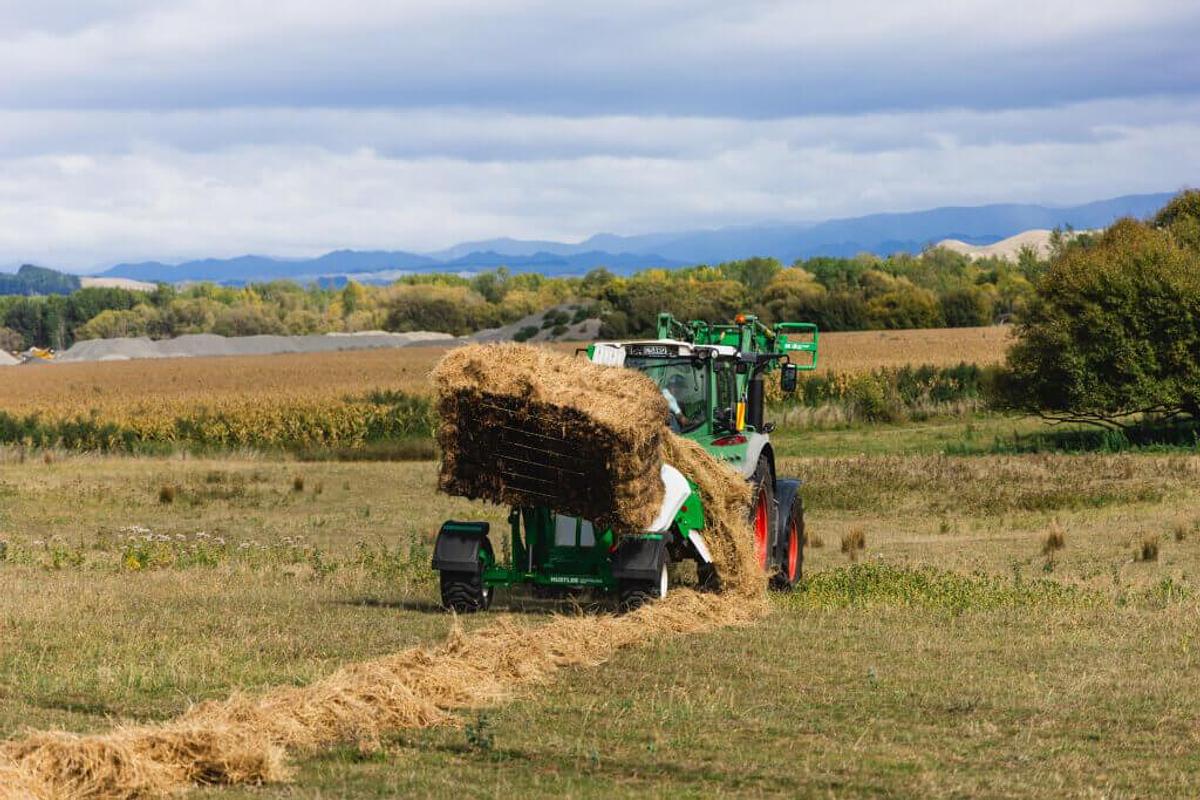

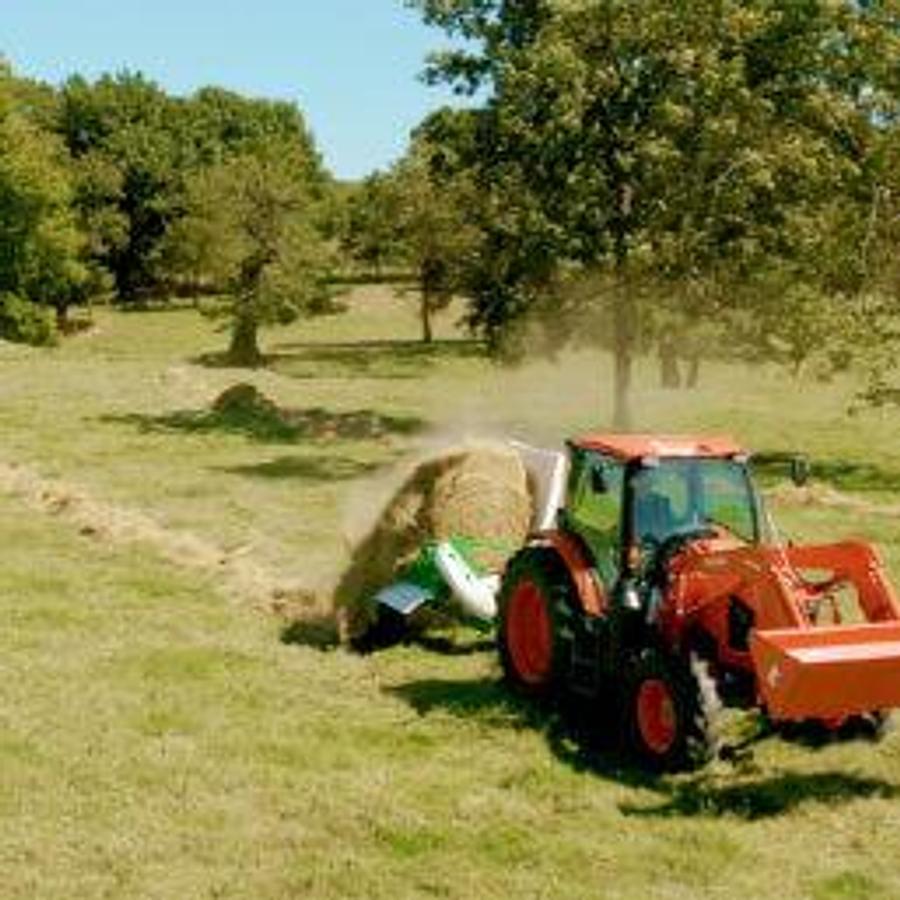

The Chainless trailed square and round bale feeders are self-loading, suitable for feeding out any bale, round or square, and it maximises feed use. Designed for medium to large operations. A Chainless feed out cart minimises feed waste by feeding out into narrow windrows to make the feed more accessible to animals and all but eliminate damage from hoof trampling, manure spoilage, and animals laying down on the feed. More efficient use of power, savings on machinery investment and faster bale feeding all add up to impressive fuel economy – made possible by the hydraulic drive system at the heart of every Hustler Chainless trailed bale processor.

5 reasons to choose a Chainless TH205

1. What's New?

  • Excavator bushes & induction hardened pivots in loading system

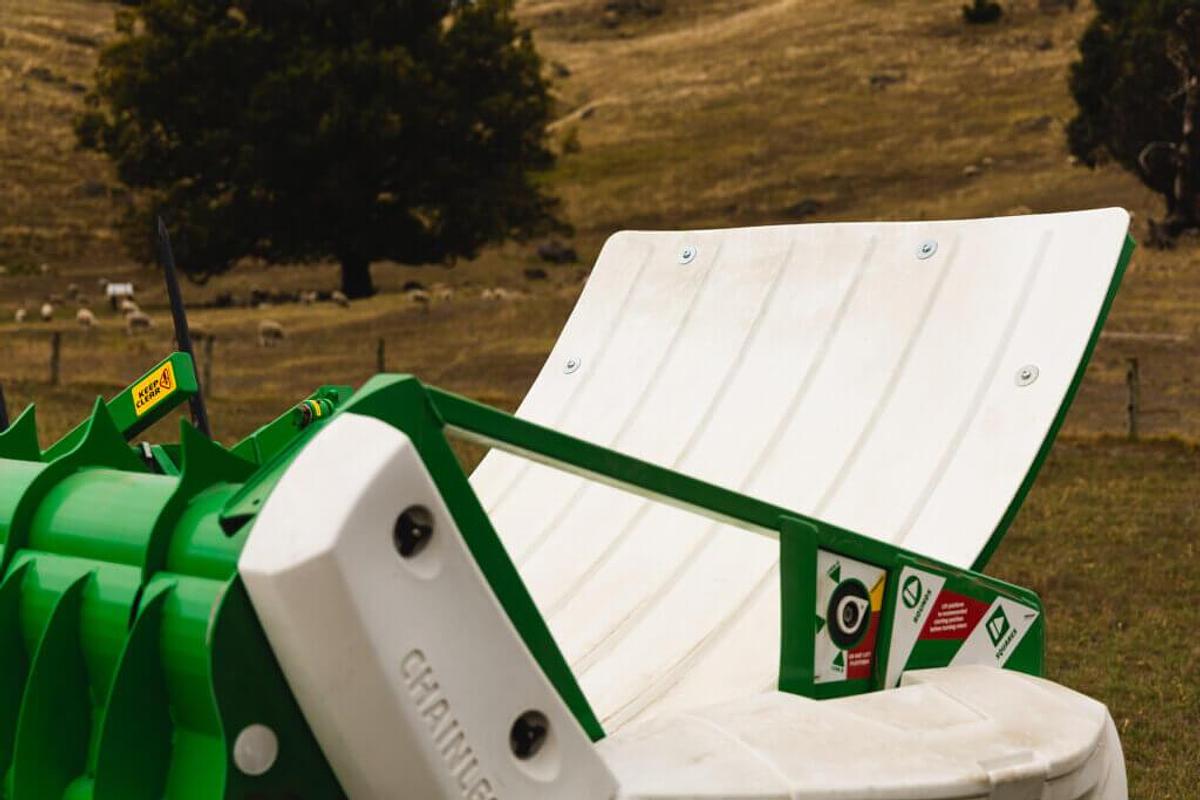

  • New indestructible puckboard table with 10 year warranty!

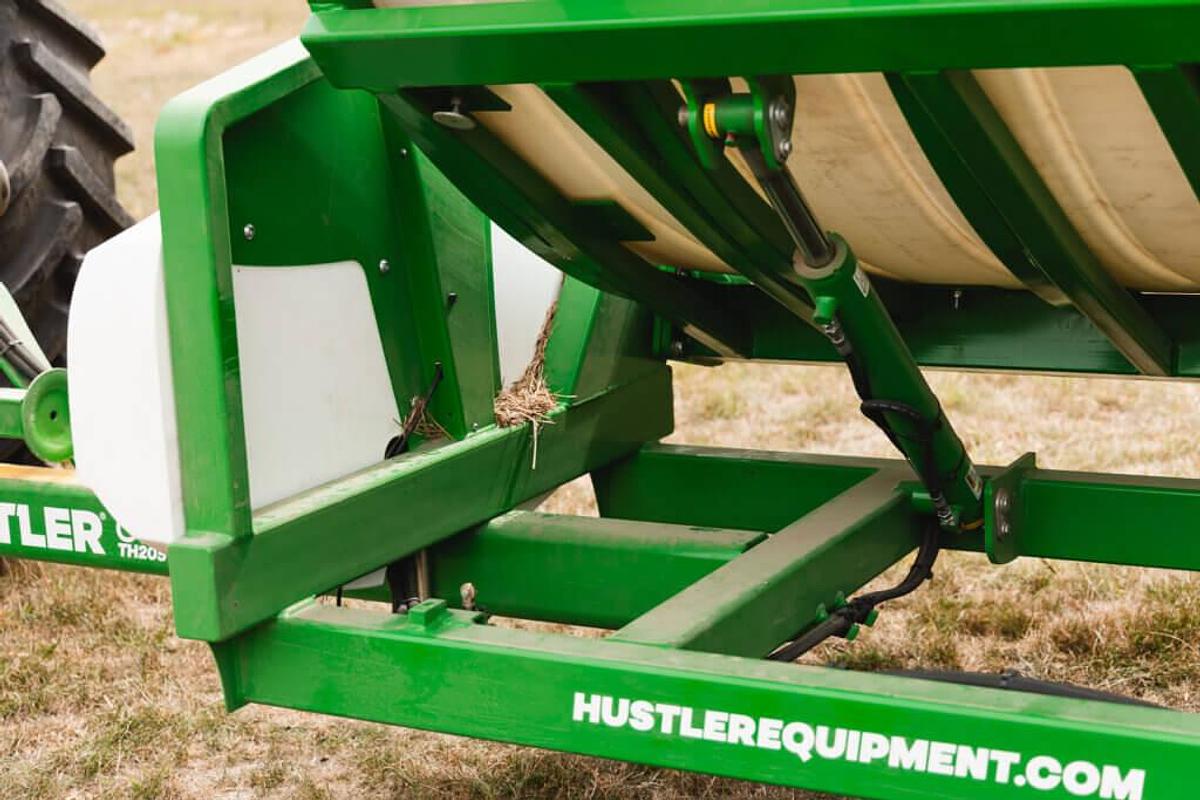

  • Beefier chasis, platform, and loading system
  • Increased lifting power

    • 2. Feeds any Bale Type Shape or Size

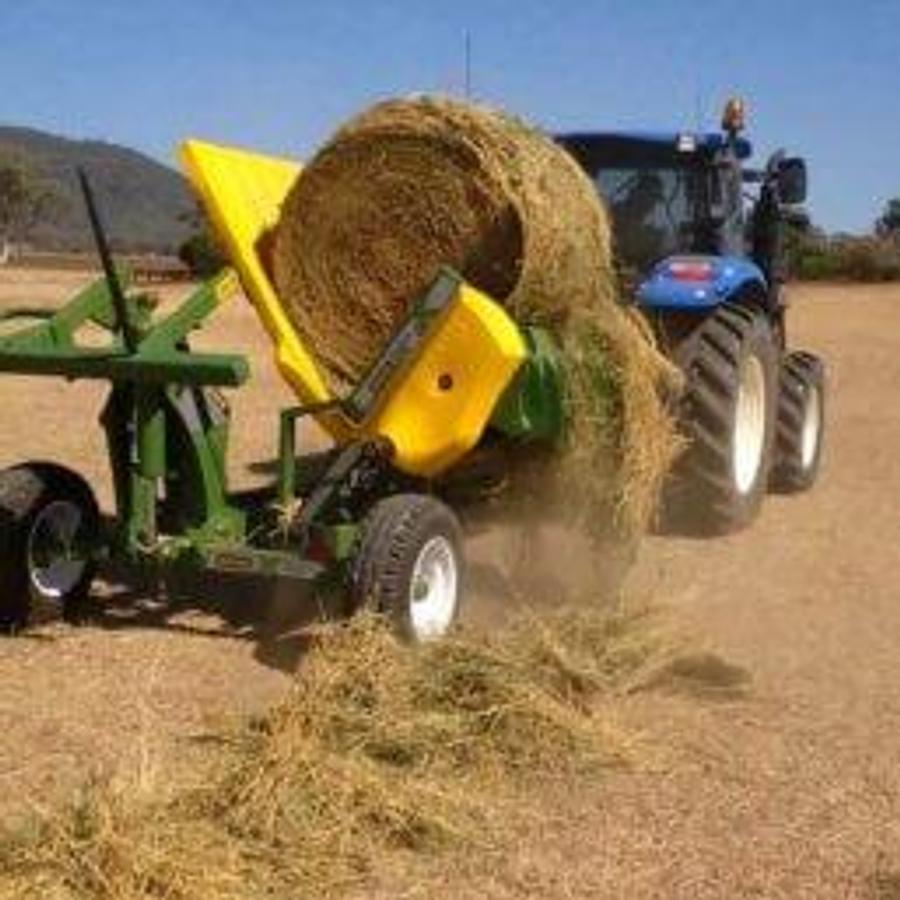

    The Chainless Trailed Bale Feeder is the most versatile Bale Feeder, it will feed out any bale round, square, tight, soft, short, long, dry and wet bales with ease.

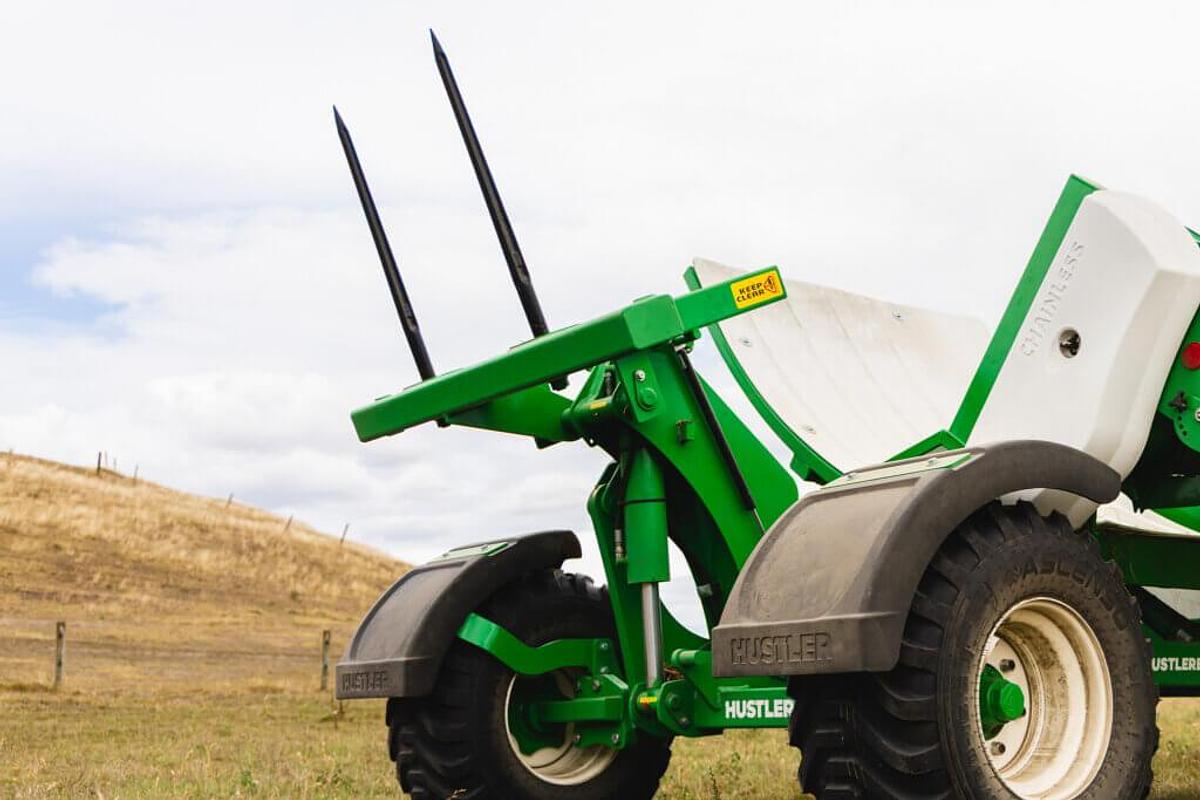

    3. Total Control 2 Loading System

    This gives you total control overloading the bale. The simple, reliable and fool-proof single cylinder design of the Hustler loading system is safer than other loading systems and allows unwrapping of the bale above the feed cradle, reducing waste.  The Hustler loading system can be reversed if the operator decides not to load that bale. It also has more support area for soft or square bales. The Chainless square and round Bale Feeder delivers more leverage, stronger design and larger 1.5-tonne (3,300 lb) capacity.

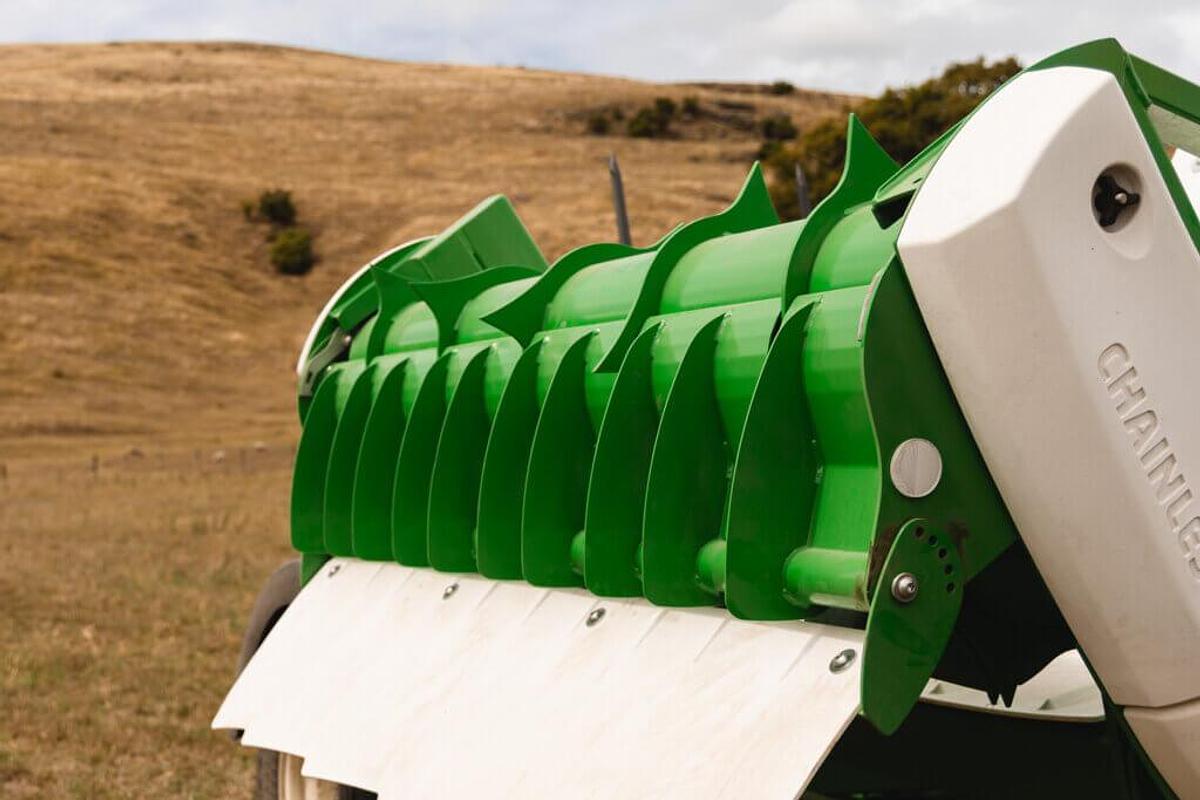

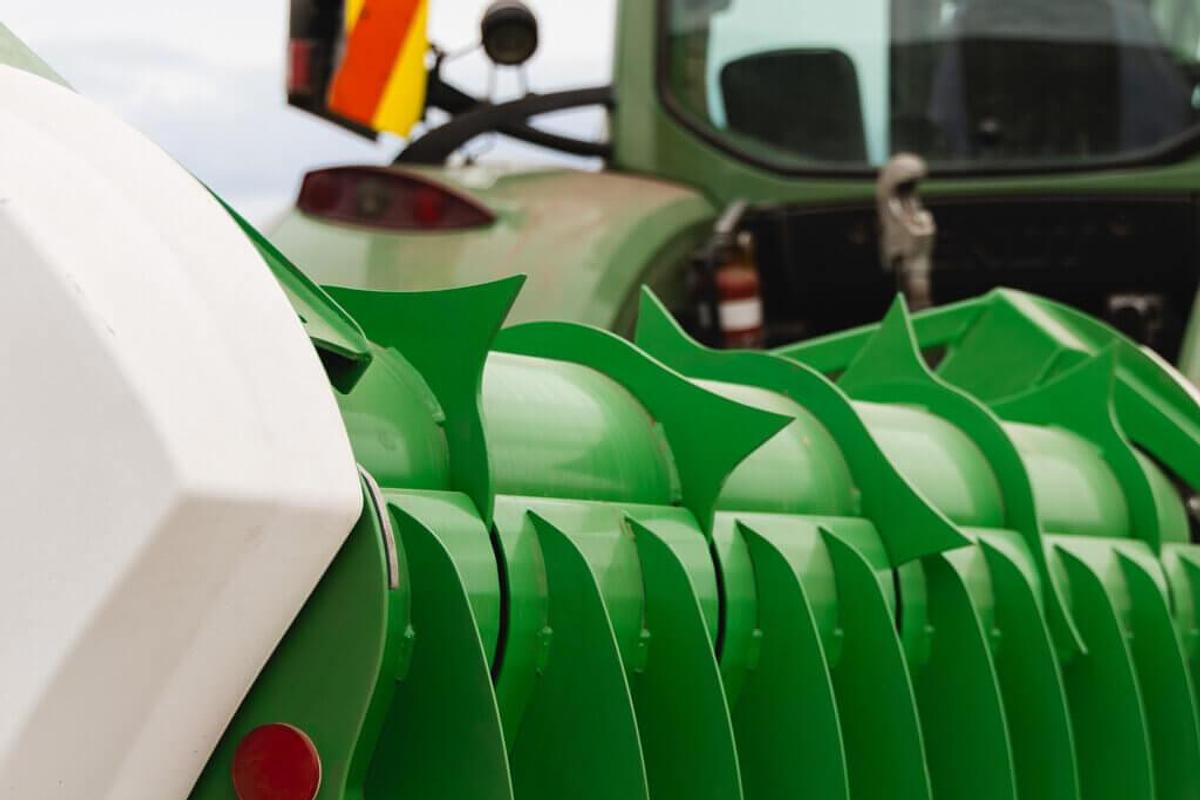

    4. Easy Clean Hypaflo Wiper Panel

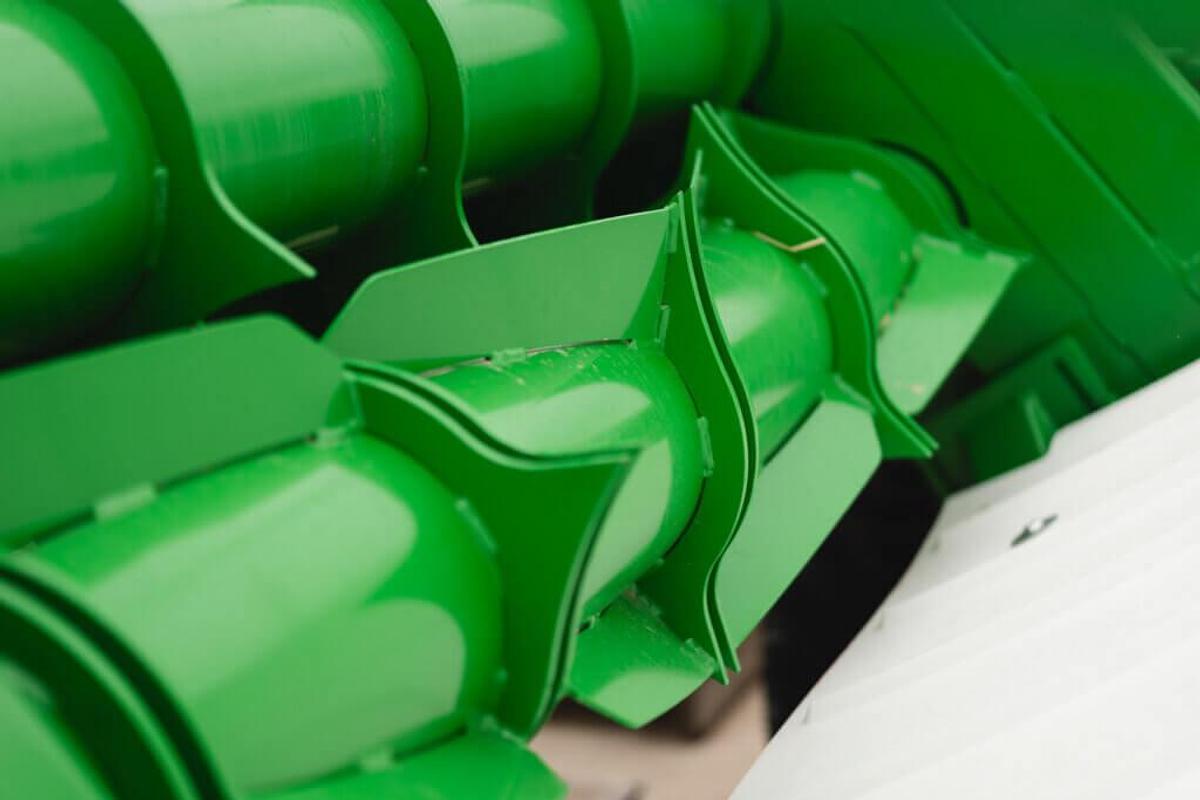

    The newly developed wiper panel that clears the hay from the rotors better. It has a new quick release latching system for releasing the panel to clean out any hay.

    5. 5 year warranty!

    All backed with the Hustler industry best 5-YEAR WARRANTY – for peace of mind, knowing you’ve got backup and support that’s been well proven for 60 years.

    Chainless TH205 (extreme duty) Round & Square 2 Bale Feeder

    Extras over and above TX205:

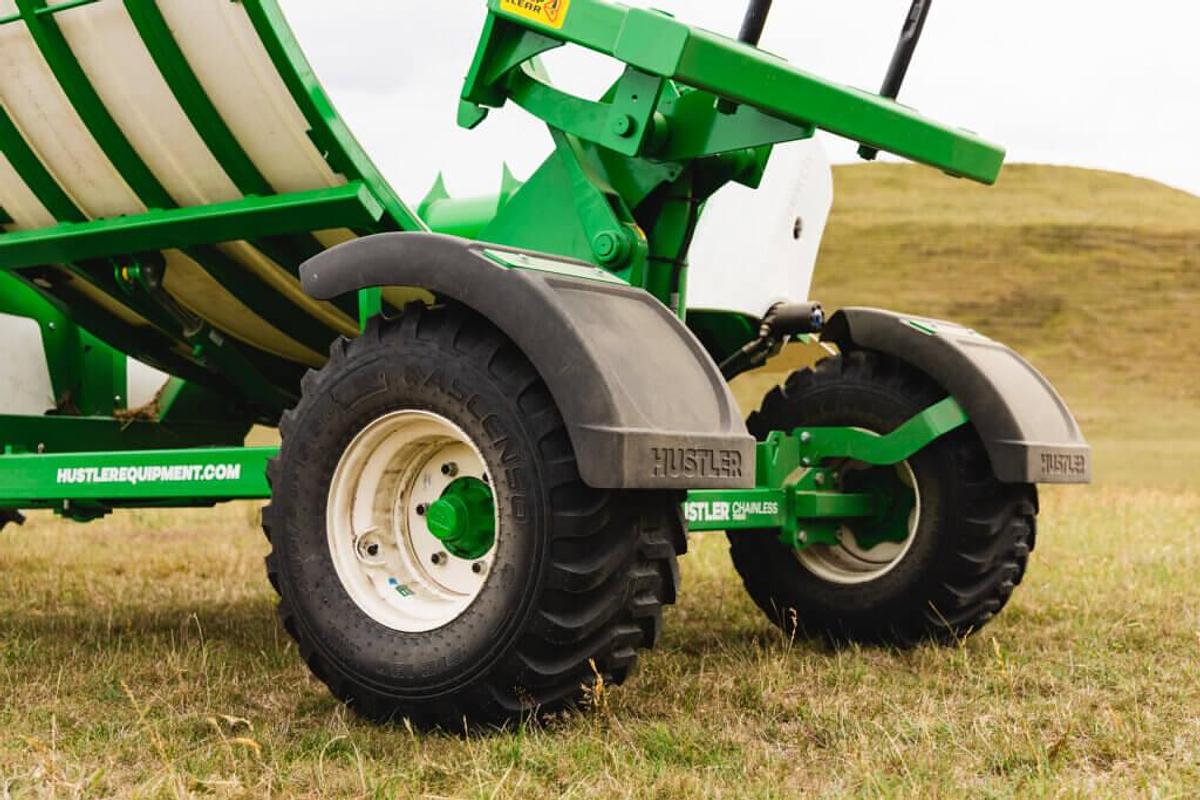

  • Larger 400/60-R15.5 floatation wheels standard
  • Puckboard platform floor – with 10-year warranty!
  • Beefier rear loading system for heavier 5′ long bales
  • Hardened steel excavator bushes and induction hardened pins in the loading system
  • Stronger platform frame & drawbar
  • Removable axles
  • Side Chute now Standard

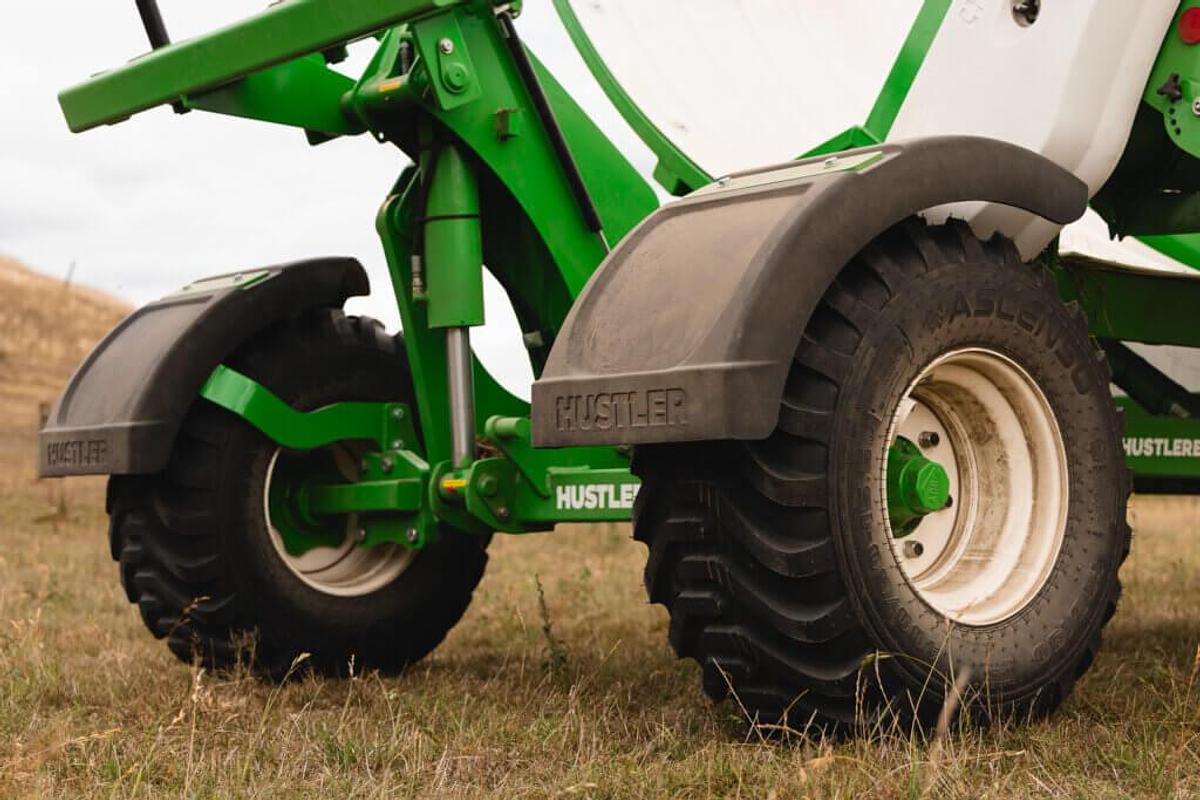

  • Mudguards/Fenders (optional)

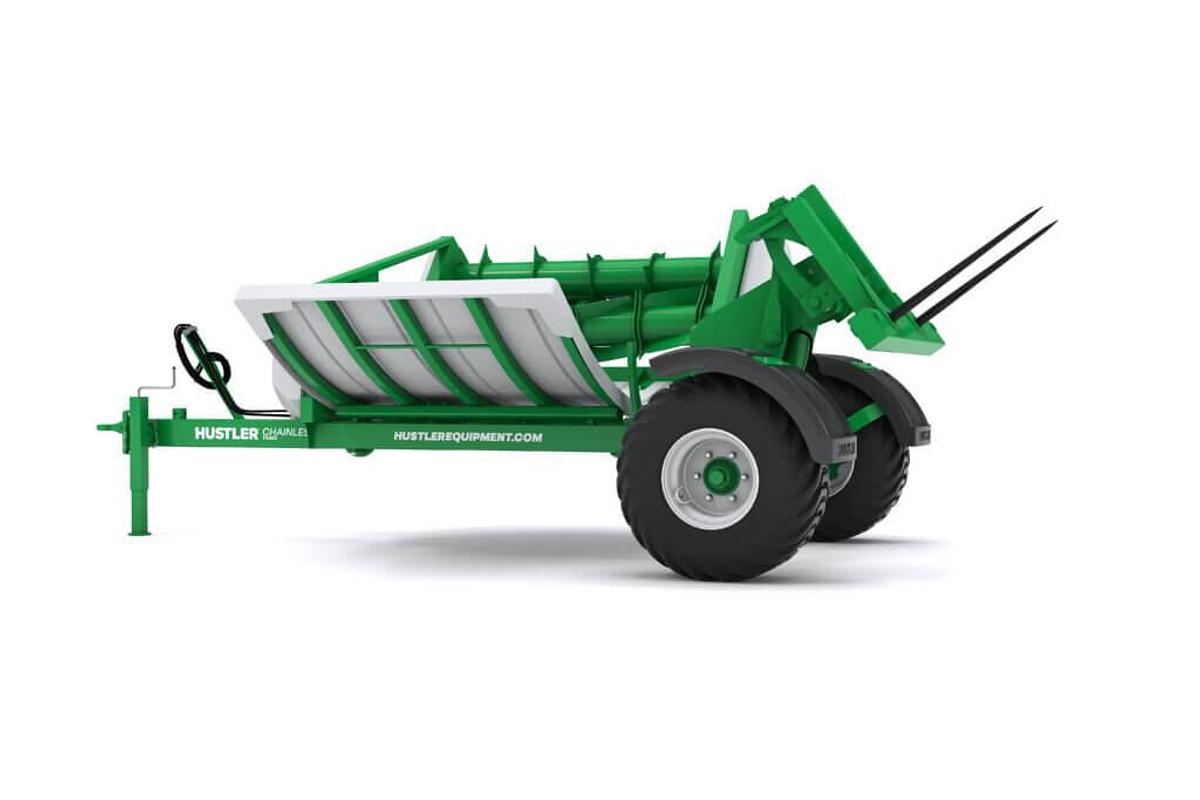

    • Chainless TX205 Round & Square 2 Bale Feeder

    Limited Stock

    Includes as standard equipment:

  • Uprated 1.5 ton capacity

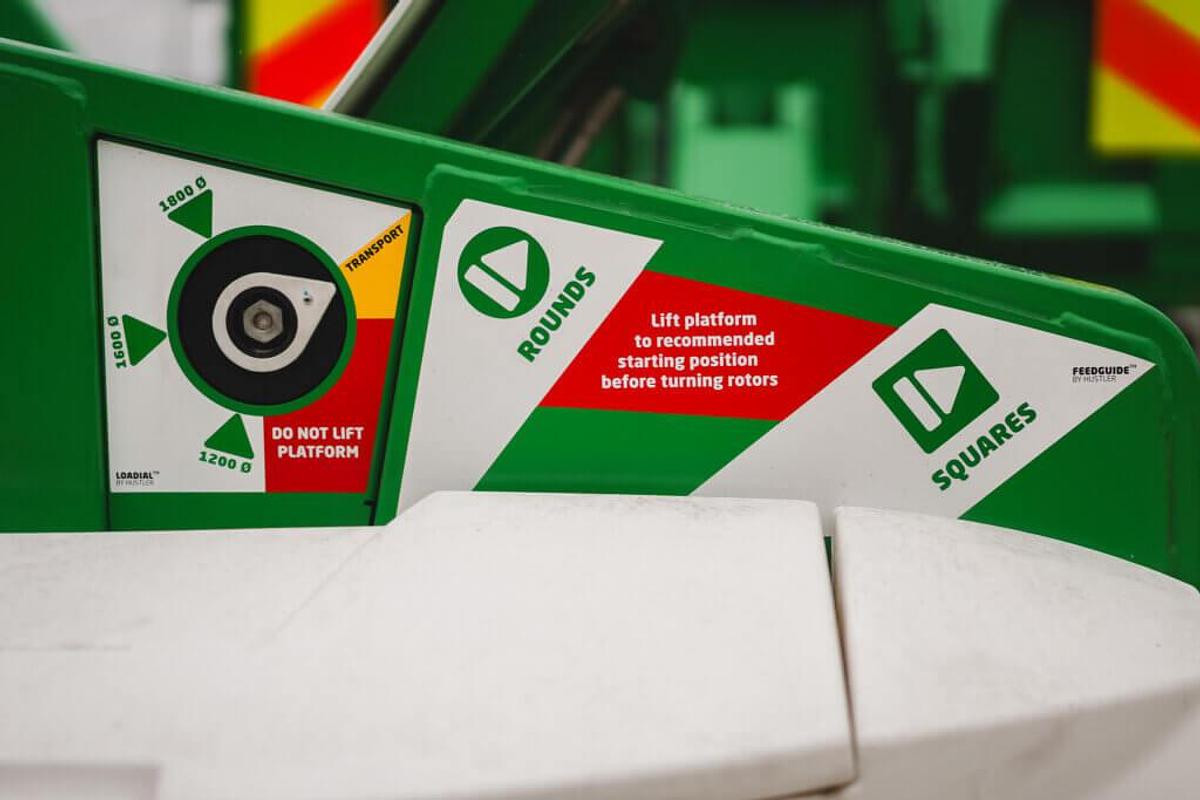

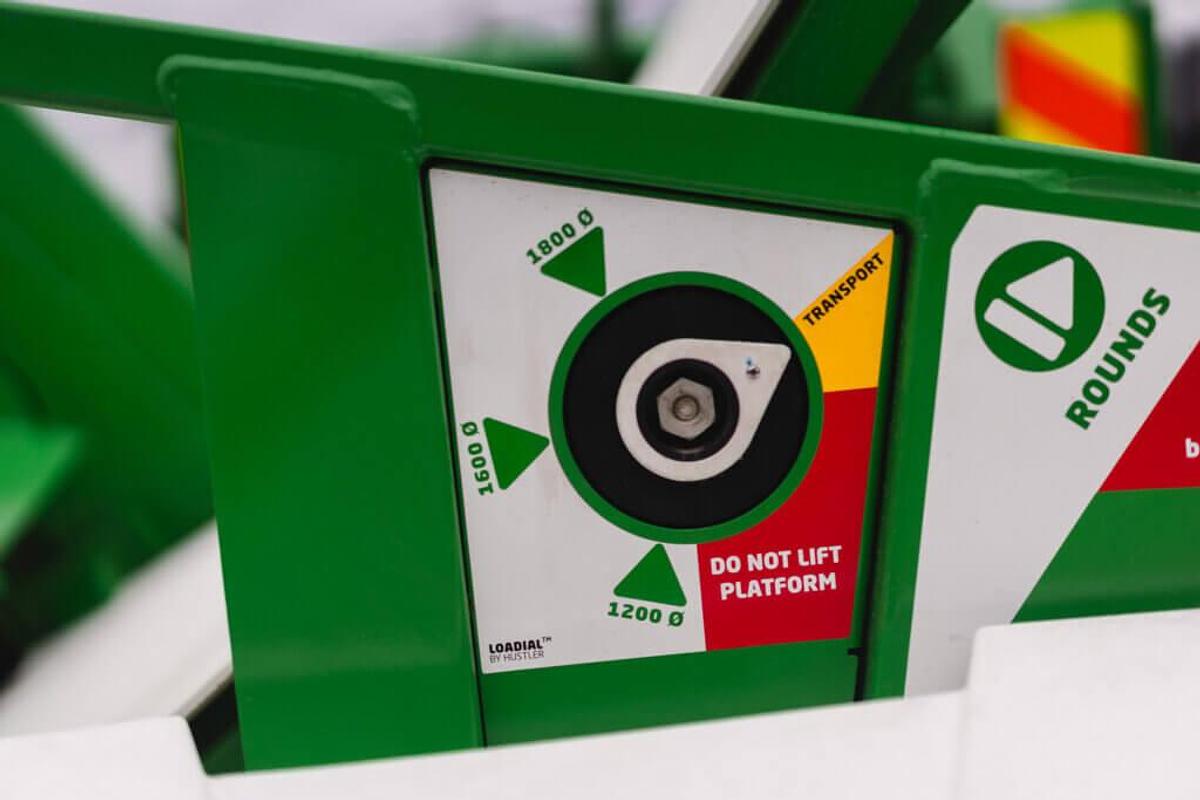

  • Loading Tyne Position Indicator
  • Quick Release Wiper Panel

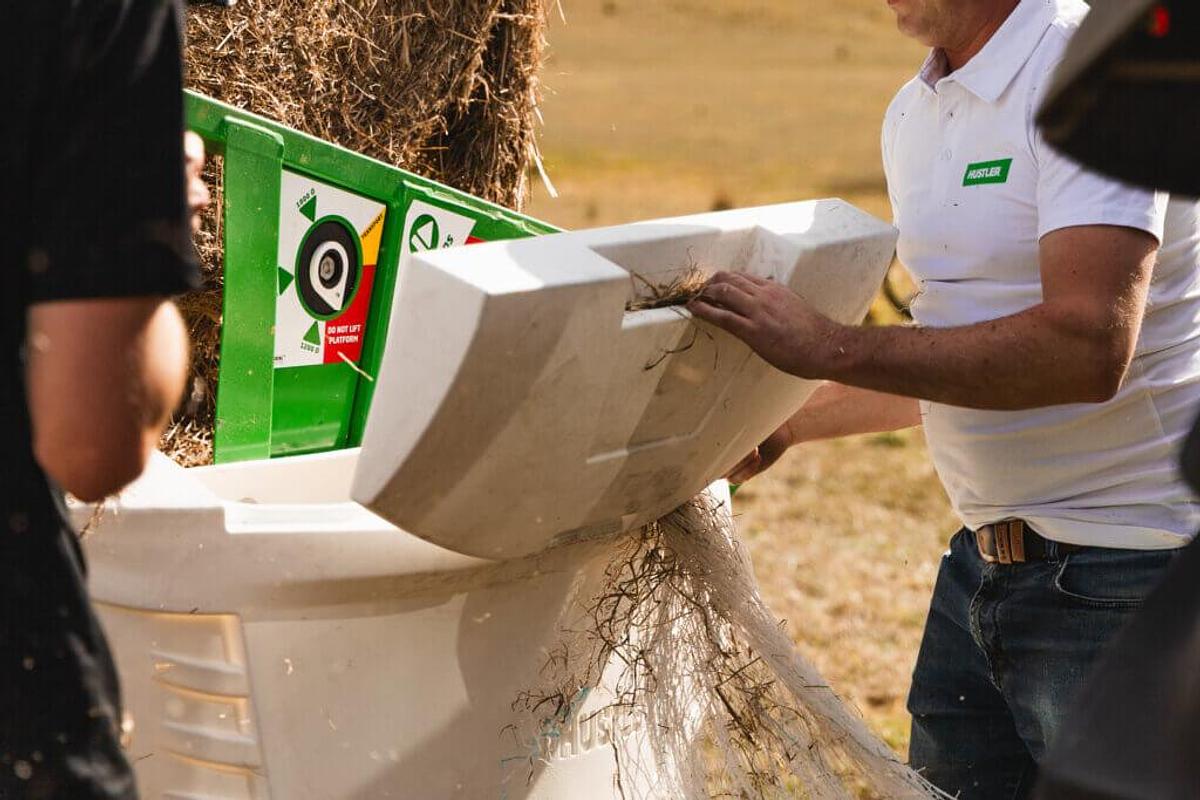

  • String Box
  • Mudguards (optional in Australia)
  • Standard with larger 11.5/80-R15.3 Wheel Assemblies
    • Show All

    Specifications

    ConditionNew
    Bale Sizes Round - Chainless TH205Up to 5’ x 6’
    Bale Sizes Square - Chainless TH205All sizes (over 6’ long requires optional platform extension)
    Bale Weight - Chainless TH205Up to 1500kg | 3,306 lb ea
    Unit Weight - Chainless TH2051400kg | 3,100lbs

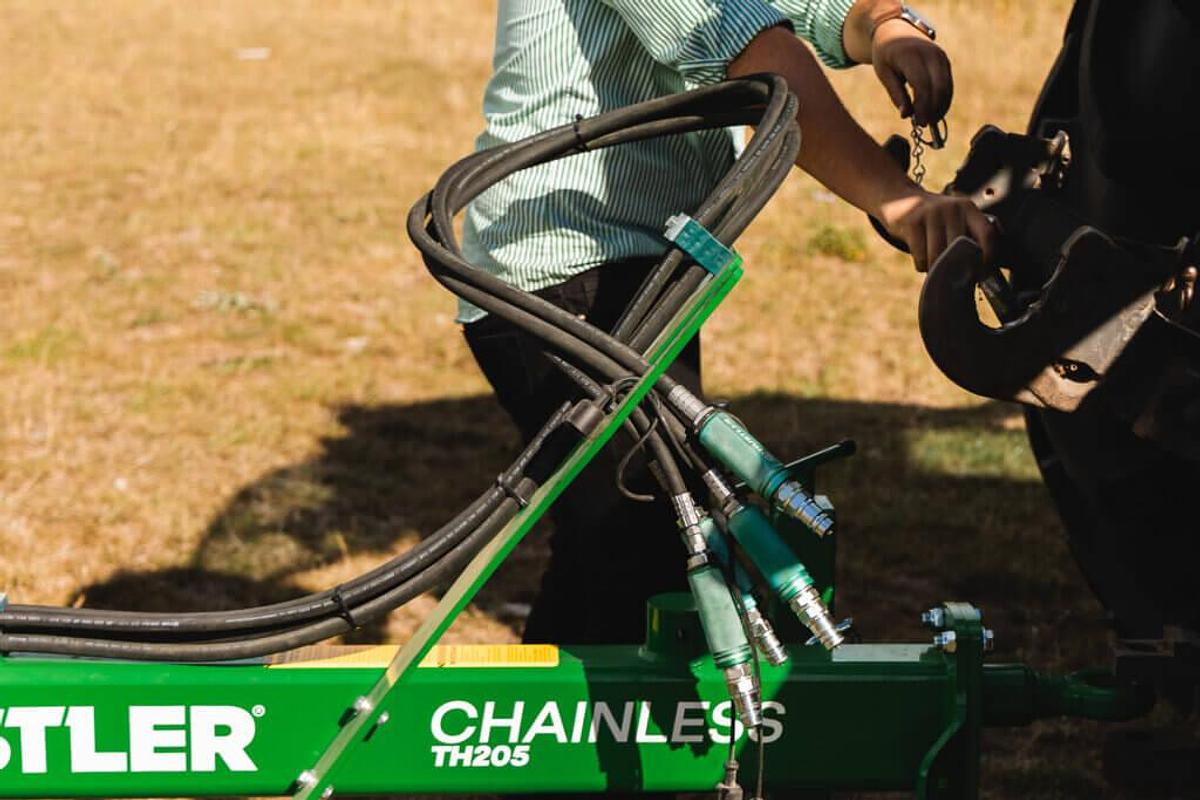

    Hydraulics Required - Chainless TH2052 x double-acting, (8-16gal/min), 2250-3000 psi
    Capacity - Chainless TH2052 bales (round or square)
    Tynes - Chainless TH2052 x forged high-tensile

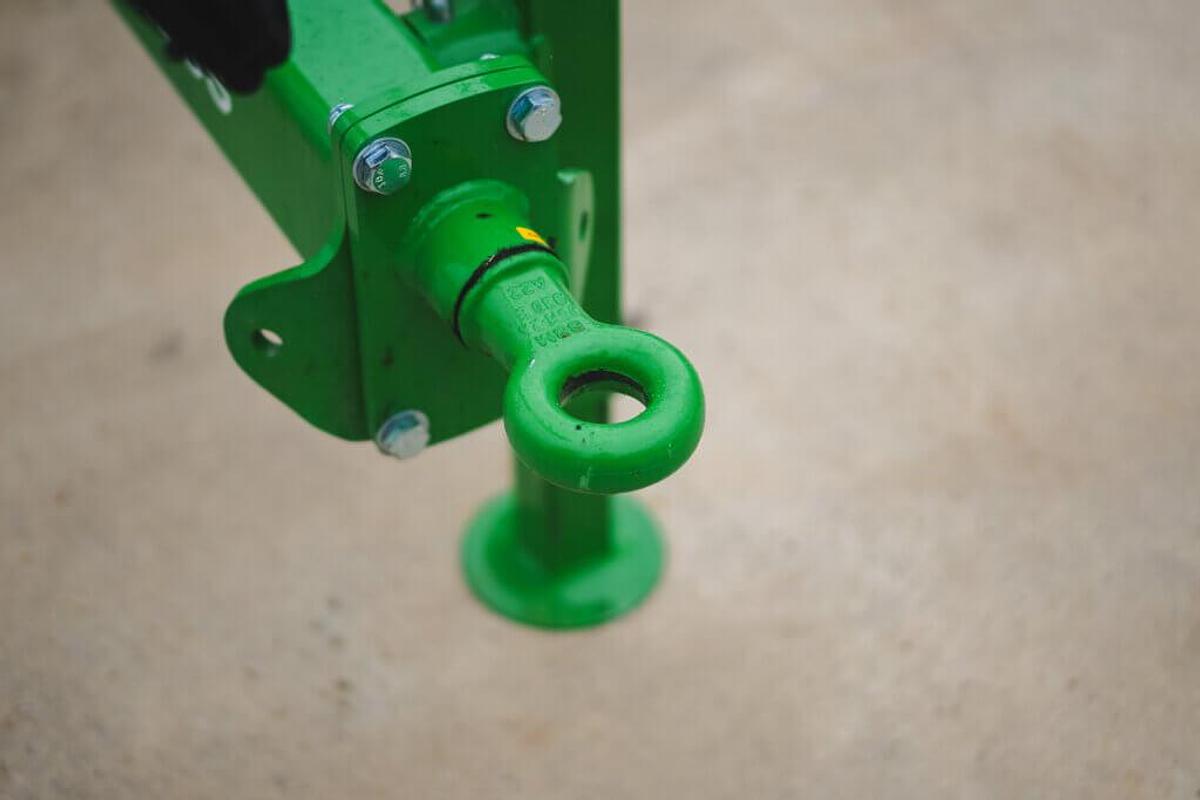

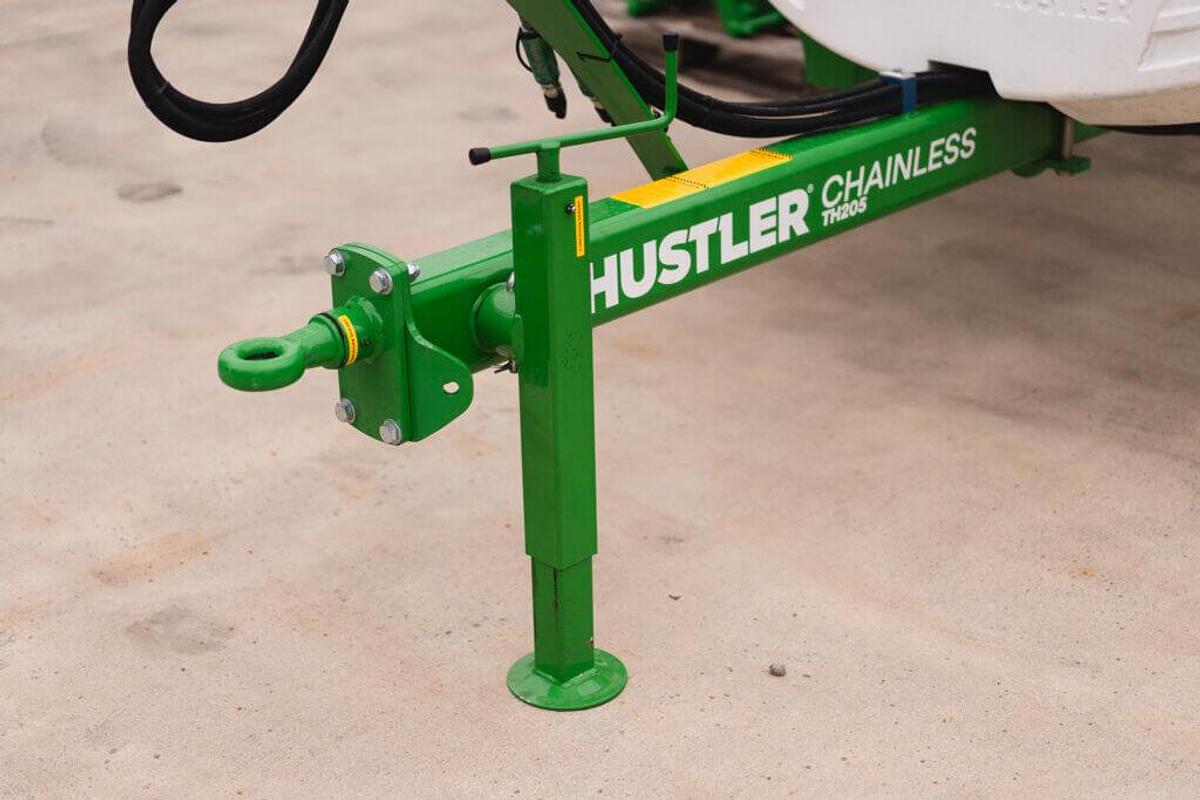

    Towing Eye - Chainless TH205Adjustable height, 45 mm swiveling forged | 1.7 in swiveling forged, 12t rated | 26,450 lb rated

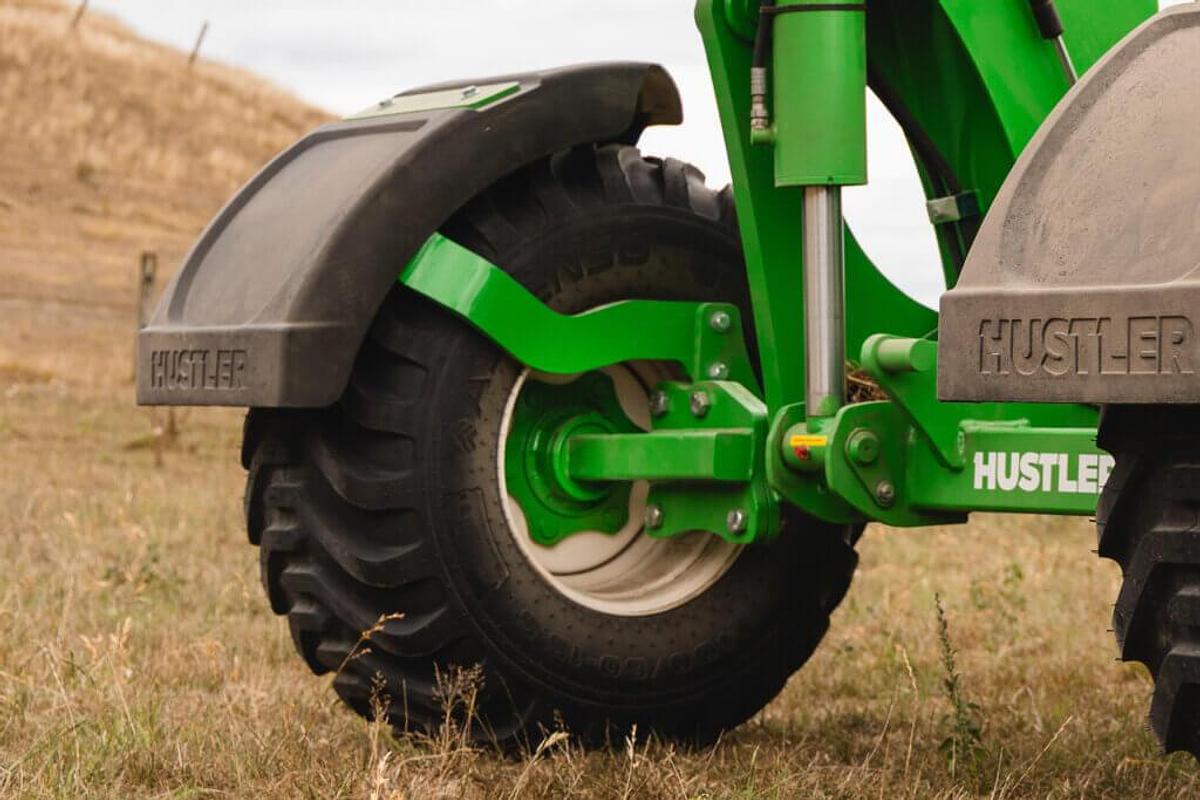

    Axles - Chainless TH2056 stud, 57mm | 2.25” square
    Wheels - Chainless TH205400/60-R15.5

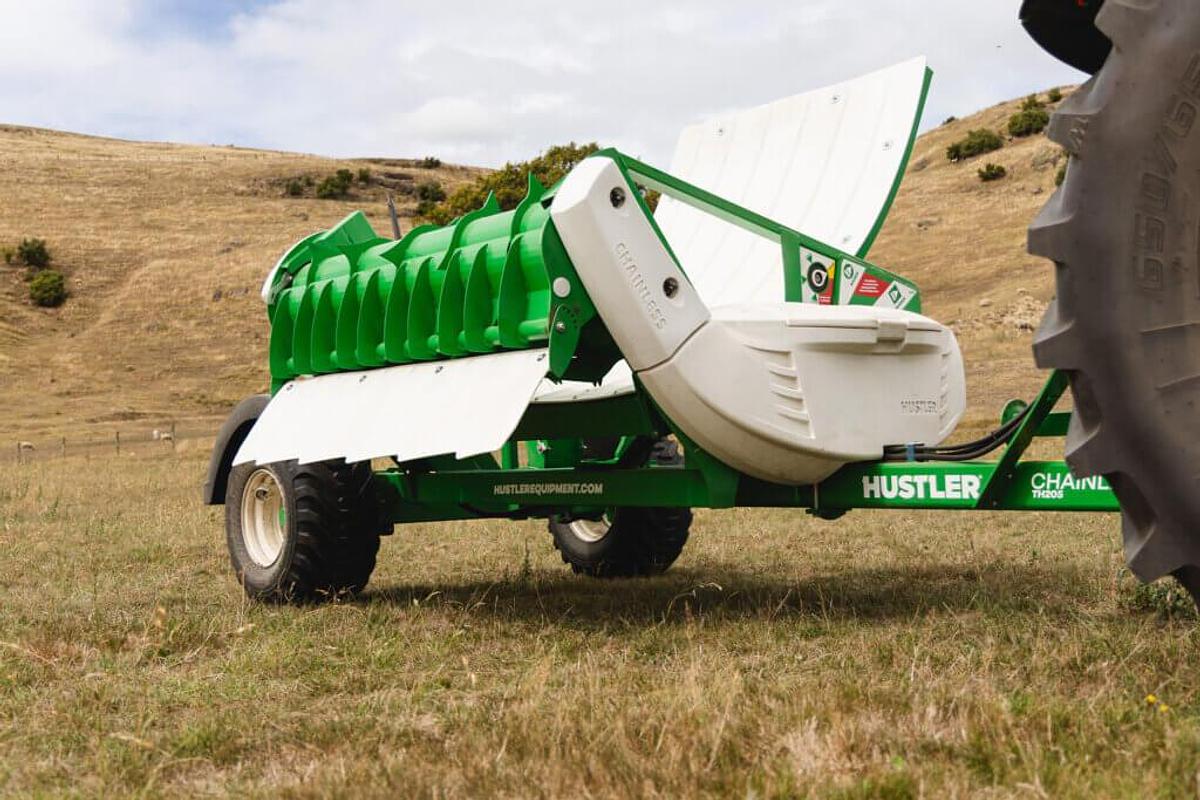

    Ground Clearance - Chainless TH205495mm | 19.5 in
    Loading - Chainless TH205Patented Total Control self-loading system
    Size (L x W x H) - Chainless TH2051930 x 1956 x 1270mm | 76 x 77 x 50 in
    - Chainless TX205Limited Stock
    Bale Sizes Round - Chainless TX205All sizes up to 5’ X 6’
    Bale Sizes Square - Chainless TX205All sizes. Over 6’ long requires optional platform extension
    Bale Weight - Chainless TX205Up to 1,500 kg ea | Up to 3,306 lb ea
    Unit Weight - Chainless TX2051,180 kg | 2600 lb
    Hydraulics Required - Chainless TX2052 x double-acting, 30-60 litres/min | 8-16 gal/min, 2250-3000 psi
    Capacity - Chainless TX2052 x bales (round or square)
    Tynes - Chainless TX2052 x Forged high tensile
    Towing Eye - Chainless TX205Adjustable height, 45 mm swiveling forged | 1.7 in swiveling forged, 12t rated | 26,450 lb rated
    Axles - Chainless TX2056 Stud, 60 mm Square | 2 in Square
    Wheels - Chainless TX20511.5/80-R15.3
    Ground Clearance - Chainless TX205443 mm | 17 in
    Loading - Chainless TX205Self-Loading
    Size (L x W x H) - Chainless TX2054467 x 2410 x 1669 mm | 175 x 94 x 65 in
