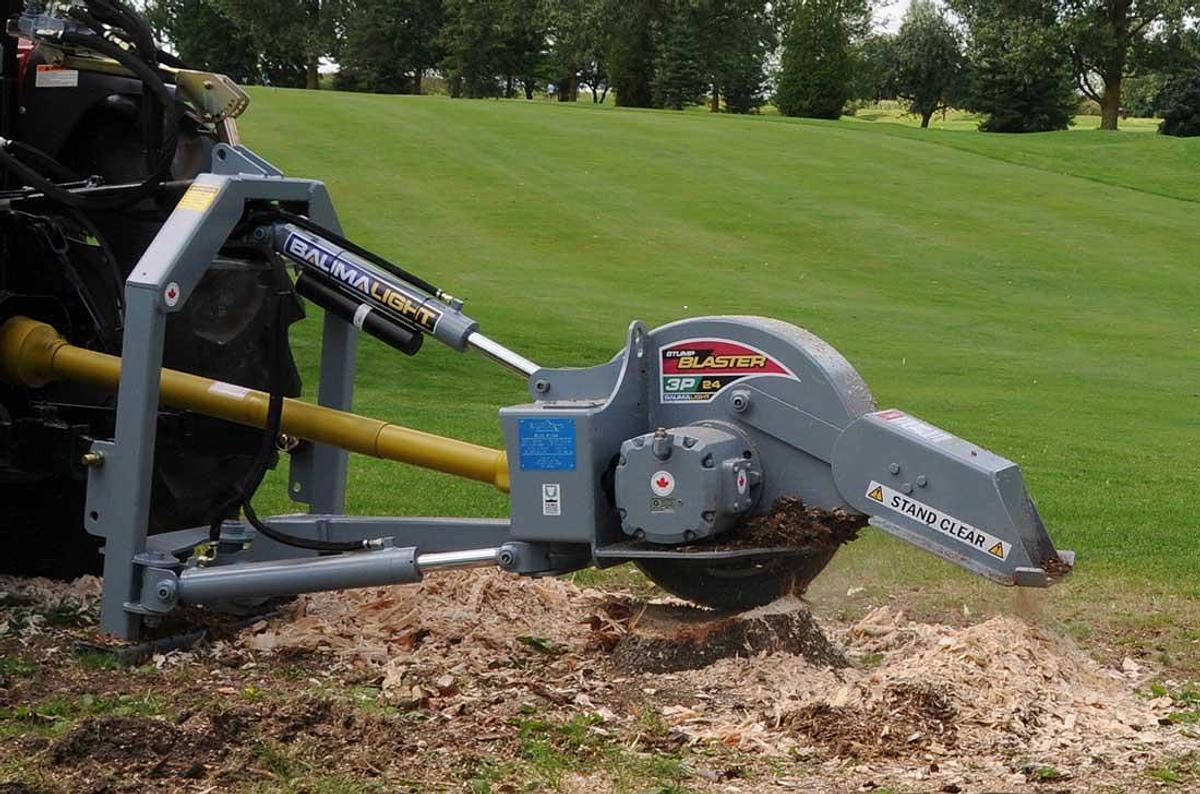

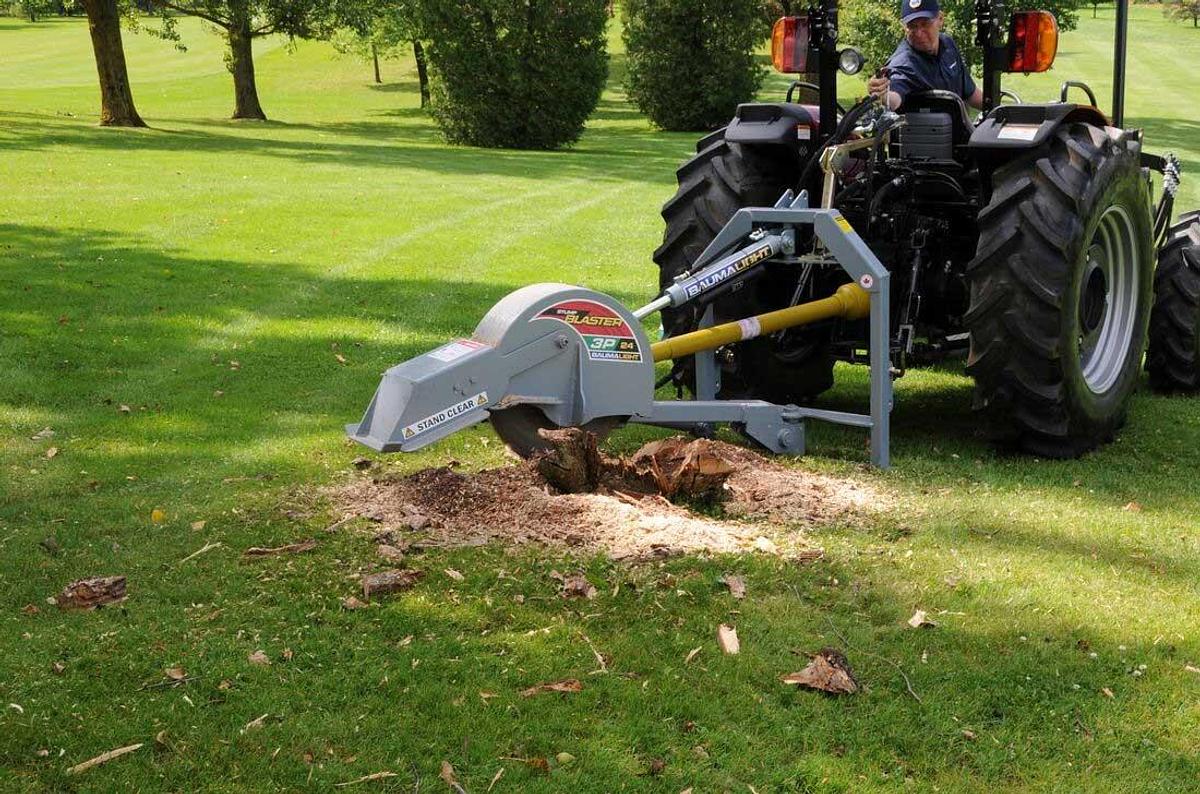

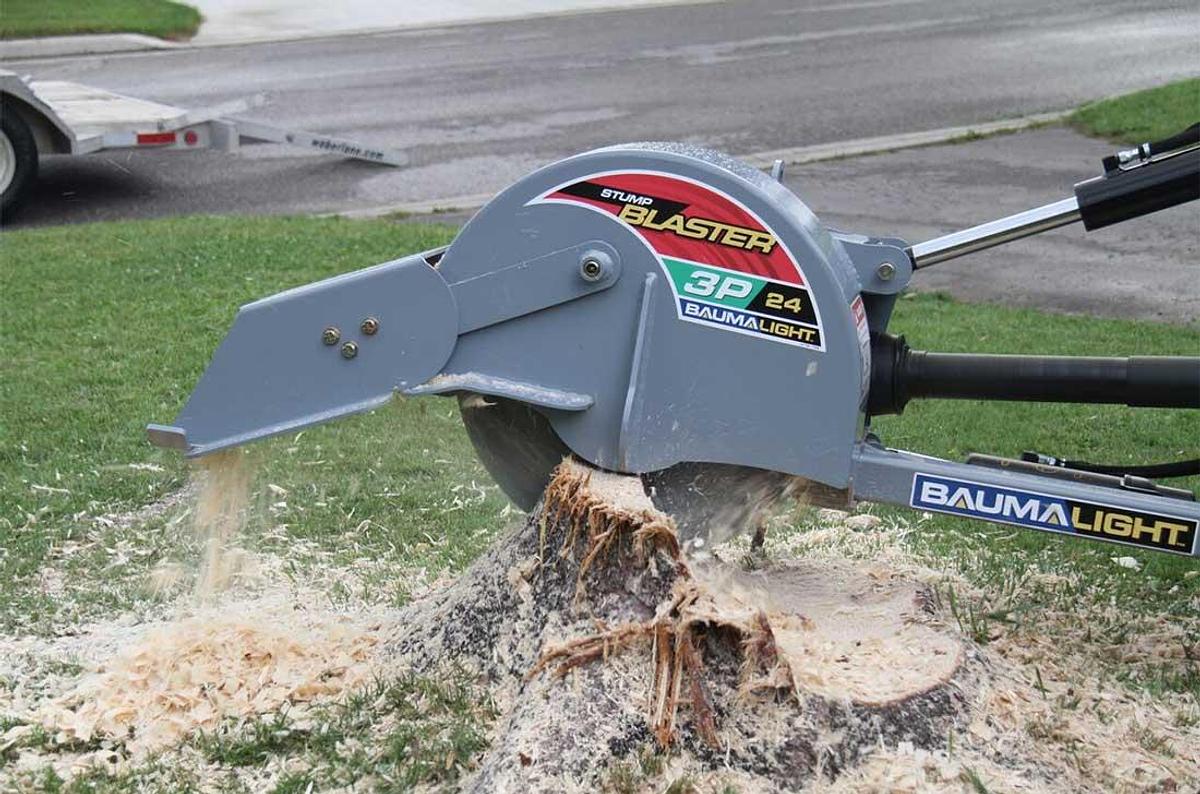

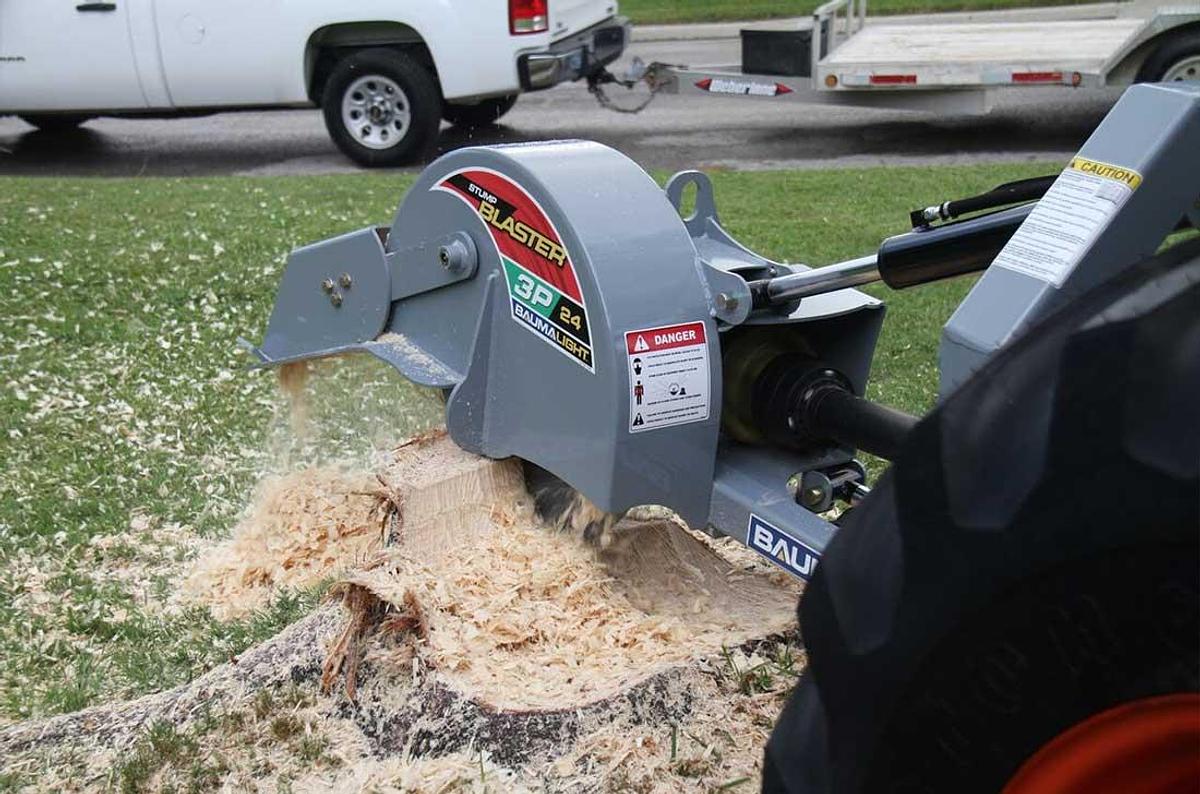

3P24
No longer available
3P24
Description
$15
Specifications
| Manufacturer | Baumalight |
| Condition | New |
| Stock Number | #IS1516-023-17 |
| Part # | 3P24 |
| Industry | AGRICULTURAL |
| Machine size | 25HP-55HP |
| Attachment size | N/A |
| List price | $5,517.00 (not including Freight) |
| Shipping | $662.00 |
| Shipping info | Length: 48" / Width: 40" / Height: 49" / Weight: 920 lbs. / Class: 110 |
| Inventory | 3P24: 6 AFS / 6 QOH / 0 QOO / 250 ISBF |
| Recommended hp size | 20-45 25-55 45-80 60-120 |
| Maximum engine hp | 50 58 85 125 |
| Maximum pto hp | 40 50 75 115 |
| Transmission | Hydrostatic only Any Any Any |
| Hydraulic gpm | -- 5–20 5–20 5–20 |
| Rotor size | 24" 24" 34" 34" |
| Number of teeth | 34 34 54 54 |

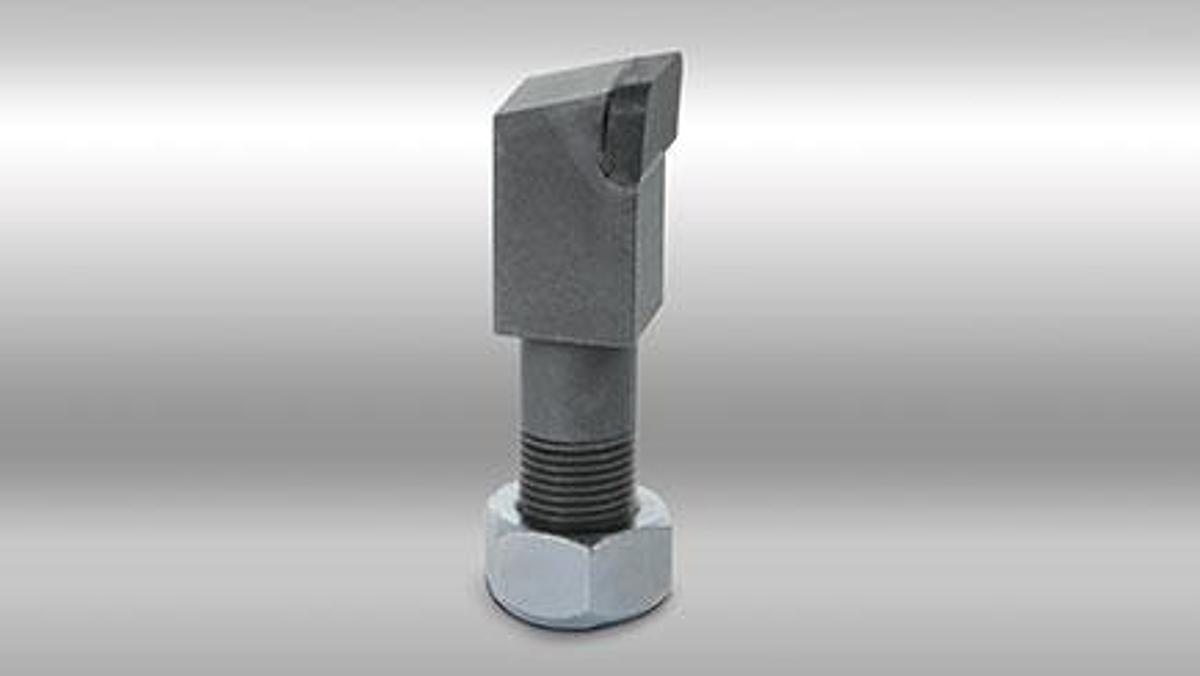

| Tooth part number | S1000 S1000 S1000 S1000 |
| Tooth construction | Carbide steel bolt-in Carbide steel bolt-in Carbide steel bolt-in Carbide steel bolt-in |
| Cutting wheel speed | 540 RPM 810 RPM 810 RPM 1000 RPM |
| Cutting height - above ground | 10" 18" 25" 25" |
| Cutting depth - below ground | 6" 8" 14" 14" |
| Maximum cutting depth - per pass | 5" 6" 9" 9" |
| Maximum horizontal cut | 22" 22" 32" 32" |
| Swing arc | 0° 65° 65° 65° |
| Hub torque | 803 Ft.-Lbs. 803 Ft.-Lbs. 803 Ft.-Lbs. 1050 Ft.-Lbs. |
| Over torque protection | Slip clutch Slip clutch Slip clutch Slip clutch |
| Hitch | Cat I Cat I or II Cat II Cat II |
| Quick hitch compatibility | Yes No No No |
| No. of remotes required - hydraulic | 0 1 or 2 1 or 2 1 or 2 |
| Requires 12 volt dc | No No No No |
| Input speed | 540 540 540 1000 |
| Unit weight (shipping) lbs. | 350 920 1231 1280 |
| Width (shipping) | 48" 42" 48" 48" |
| Length (shipping) | 48" 49" 54" 54" |
