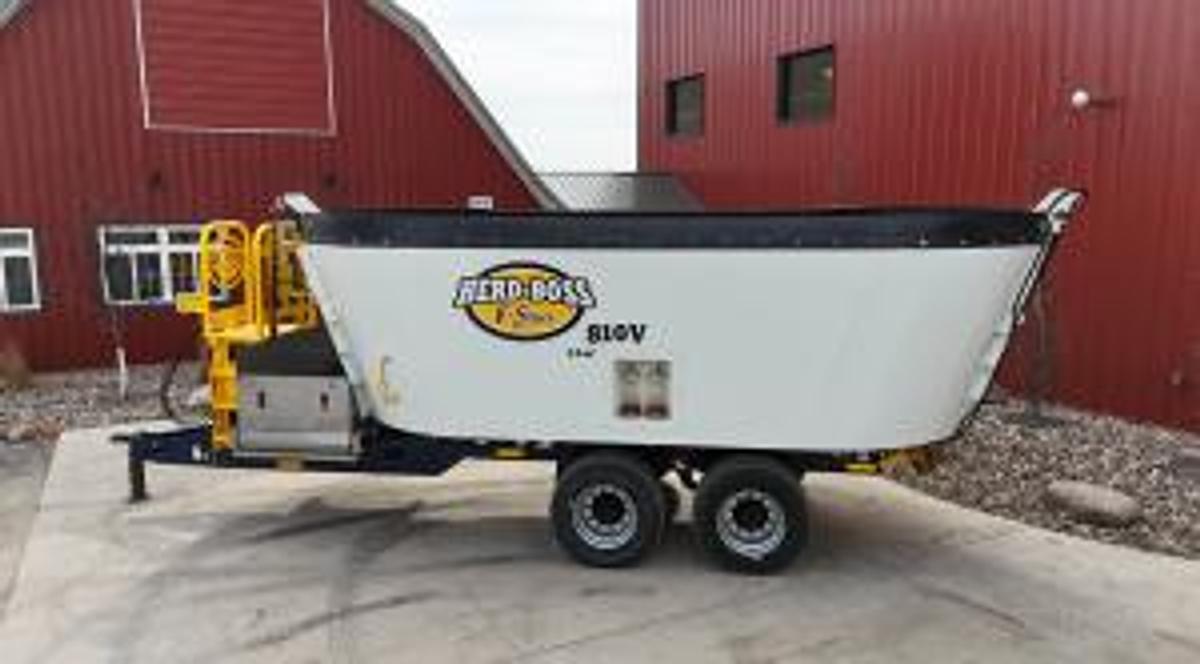

810V Vertical Feed Mixer

Description

Thick Rubber Extension: This mixer includes a 10” rubber extension to minimize spillage during operation.

Abrasion-Resistant Auger Flighting: The auger flighting is constructed from 3/4” abrasion-resistant steel to reduce wear and extend service life.

Heavy Duty Side Walls and Floor: 3/8” abrasion-resistant steel side walls paired with a 3/4” abrasion-resistant floor made for long-term durability.

Plate Steel Frame: Heavy plate steel construction, similar to wheel loader design, built to withstand wear and tear.

Heavy Stainless Steel Conveyors: Herd-Boss Conveyors feature all stainless steel construction, reducing corrosion and wear. Heaviest in the industry by double.

Stainless Steel Shields: Steel shields to protect key components while reducing corrosion and maintenance.

Heavy-Duty Chain System: Designed to handle high loads with consistent, dependable operation.

Heavy-Duty Drive Components: Equipped with a 77 Series heavy-duty driveline, Weasler driveline components, and RR planetary drive for reliable power transfer.

Customers have the flexibility to choose from various options to customize their 810V vertical feed mixer. Some of the available options include:

Auger plow blade options: 45° plow blade (Standard), 30° plow blade.

Tire options: Super Single tires (Standard – 435/50R19.5), Lugger tires (560/45R22.5).

32 Ton Suspension With 20 Ton Axles: Rigid fixed axle with Hyd. Brakes, Rigid/Steering Axles with Hyd. Brakes. Proven to be very low-maintenance.

Conveyor options: Various conveyor lengths, including Flat discharges, fixed dog leg discharge, or hydraulic wing discharges.

Hydraulic Jack: Customers can choose to include a hydraulic jack for added convenience.

Hitch options: Bull Pull Hitch (standard), Clevis Hitch.

Interchangeable Parts: Several models have the same or interchangeable parts for simplified maintenance.

For any further questions or to explore additional accessories that can enhance the product, please don’t hesitate to contact us through our Herd-Boss website or get in touch with your local dealer.

Specifications

Condition	New
Capacity Top of Steel	705 ft3 (20 m3)
Capacity W/ Rubber Ext.	838 ft3 (23.7 m3)
Light Ration Capacity	20,950 / ft3
Heavy Ration Capacity	29,330 / ft3
Width W/ Flip-Up Conv.	120 in (3.1 m)
Width W/O Mag Tray	103 in (2.7 m)
Tub Width	103”
Overall Length	332”
Overall Height Top of Steel	106 in (2.69 m)
Overall Height W/ Rubber Ext.	116 in (2.9 m)
Weight Empty	Approx. 22,800 lbs.
Floor Thickness	3/4 in (19.1 mm) AR200
Wall Thickness	3/8 in (9.5 mm) AR200
Auger Flights	3/4 in (19.1 mm) AR200
SS Conveyor Floor	3/16 in (4.8 mm) SS
Minimum HP Requirements	140HP
Capacity Top of Rubber	838 ft3
Overall Height	116”

Documents

v-series-vertical-mixer-spec-sheet-pdf
